STEP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

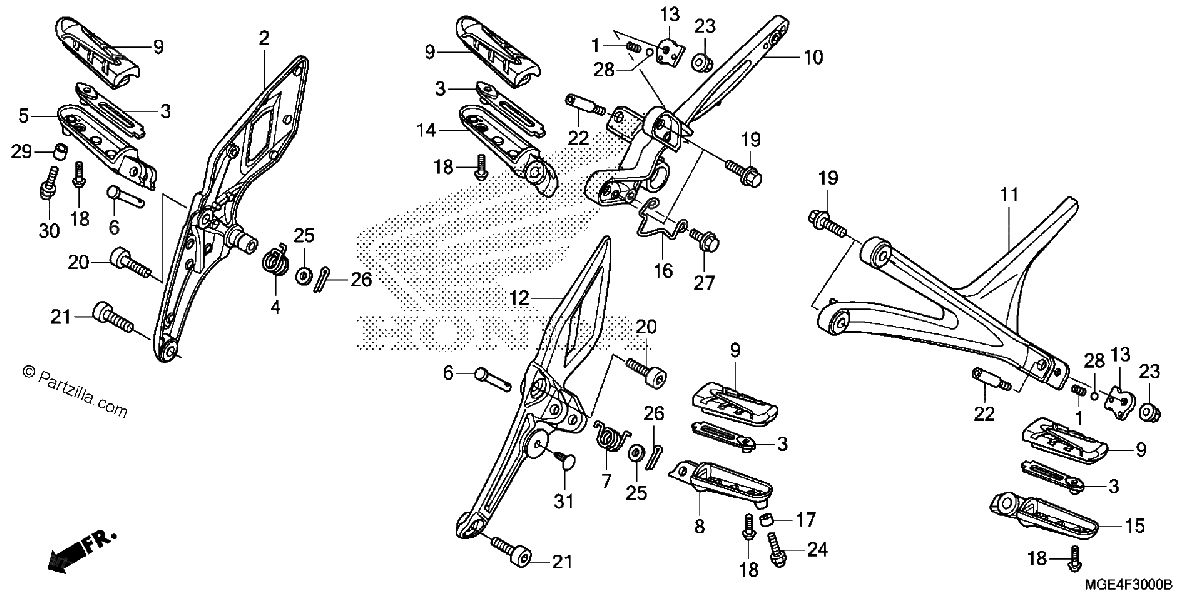

Diagrama de STEP

Repuestos

#1
28333-300-000
SPRING, KICK STARTER STOPPER
$3.36¢1 679
1
#2
50600-MGE-000
HOLDER, Right MAIN STEP
No Disponible
1
#3
50609-MGE-000
PLATE, STEP SETTING
$6.16¢3 082
1
#4
50617-445-840
SPRING, R. STEP RETURN
$6.08¢3 042
1
#5
50635-MBW-305
ARM, Right MAIN STEP (COO)
$63.38¢31 688
1
#6
50639-MFL-D20
PIN, STEP BAR
$3.36¢1 679
1
#7
50644-445-840
SPRING, L. STEP RETURN
$6.08¢3 042
1
#8
50645-MBW-305
ARM, L MAIN STEP (COO)
$63.38¢31 688
1
#9
50661-MGE-305
RUBBER, MAIN STEP (COO)
$10.74¢5 371
1
#10
50671-MGE-010
HOLDER, Right PILLION STEP
$155.91¢77 953
1
#11
50681-MGE-010
HOLDER, L PILLION STEP
$155.91¢77 953
1
#12
50700-MGE-000
HOLDER, L MAIN STEP
$171.20¢85 600
1
#13
50718-MGE-000
PLATE, PILLION STEP CLICK
$2.59¢1 294
1
#14
50720-MGE-315
ARM, Right PILLION STEP (COO)
$85.61¢42 803
1
#15
50730-MGE-315
ARM, L PILLION STEP (COO)
$88.42¢44 212
1
#16
50780-MGE-000
GUIDE, EX CABLE
$13.18¢6 590
1
#17
53709-MFL-000
COLLAR, STEERING DAMPER
$2.45¢1 225
1
#18
90118-MGE-000
BOLT, SPECIAL (5X14)
$4.13¢2 064
1
#19
90136-MCA-000
BOLT, FLANGE (8X30)
$3.04¢1 518
1
#20
90157-MGE-000
BOLT, SOCKET (8X22)
$4.96¢2 478
1
#21
90158-MGE-000
BOLT, SOCKET (10X22)
$5.58¢2 789
1
#22
90167-MGE-010
BOLT, SPECIAL (6X16)
$10.64¢5 319
1
#23
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
1
#24
92501-06020-0B
BOLT, CAP (6X20)
$4.43¢2 214
1
#25
94102-08200
WASHER, PLAIN (8MM)
$1.02¢512
1
#26
94201-20152
PIN, SPLIT (2.0)
$0.61¢305
1
#27
96001-06014-07
BOLT, FLANGE (6X14)
$1.41¢707
1
#28
96211-08000
BALL, STEEL (#8) (1/4)
$1.47¢736
1
#29
64152-MCA-000
COLLAR, ADJUSTING LEVER
$6.05¢3 024
1
#30
92501-06030-0B
BOLT, HEX CAP (6X30)
$2.69¢1 346
1
