CLUTCH 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

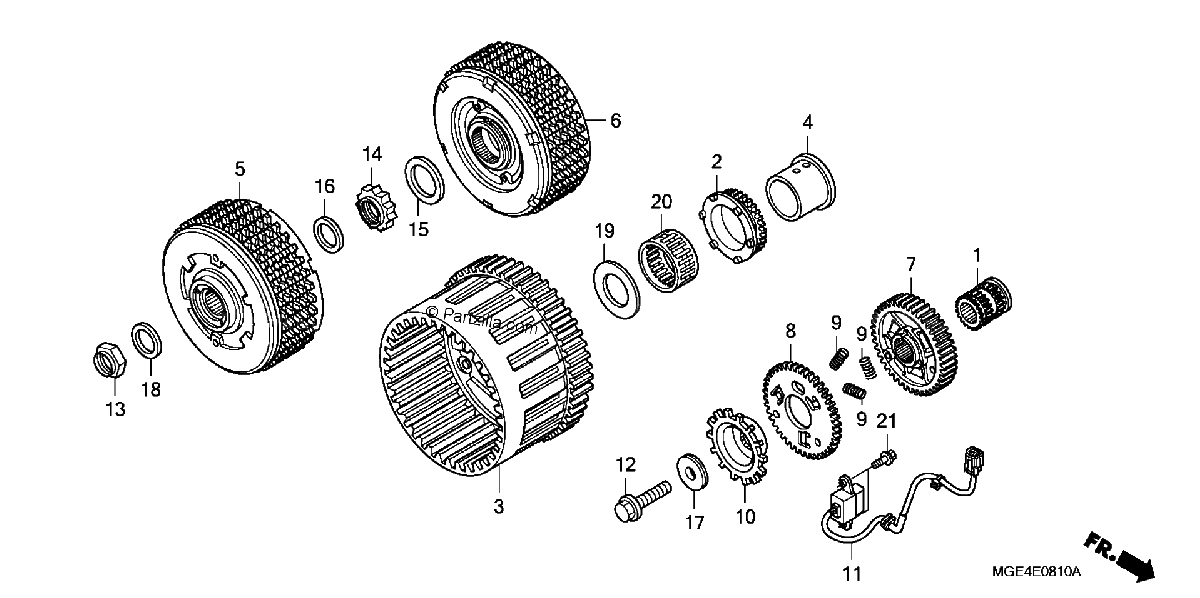

Diagrama de CLUTCH 2

Repuestos

#1
14406-MGE-000
SPROCKET, TIMING (20T)
$76.28¢38 138
1
#2
15131-MGE-D01
SPROCKET, OIL PUMP DRIVE (30T)
$76.44¢38 219
1
#3
22100-MGE-D00
CLUTCH OUTER
$491.00¢245 500
1
#4
22116-MGE-D00
GUIDE, CLUTCH (OUTER)
$41.56¢20 781
1
#5
22500-MGE-D00
CLUTCH ASSY. 1
$672.40¢336 200
1
#6
22600-MGE-D00
CLUTCH ASSY. 2
$672.40¢336 200
1
#7
23103-MGE-000
GEAR, PRIMARY DRIVE (42T)
$147.91¢73 956
1
#8
23104-MGE-000
SUB-GEAR, PRIMARY (42T)
$84.65¢42 325
1
#9
23115-MGE-000
SPRING, PRIMARY DAMPER
$11.84¢5 919
1
#10
30291-MGE-000
ROTOR, PULSE
$25.49¢12 744
1
#11
30300-MGE-641
GENERATOR ASSY., PULSE
$97.64¢48 819
1
#12
90024-MGE-000
BOLT, FLANGE (12X45)
$9.20¢4 600
1
#13
90231-MCH-000
NUT, LOCK (25MM)
$8.22¢4 113
1
#14
90231-MGE-D00
NUT, LOCK (36MM)
$17.11¢8 556
1
#15
90403-MGE-D00
WASHER (36.2X49X1.5)
$11.54¢5 769
1
#16
90404-MGE-D00
WASHER (29.7X37.8X2)
$6.64¢3 319
1
#17
90408-MGE-000
WASHER (12.5X36X6)
$9.20¢4 600
1
#18
90410-MGE-D00
WASHER (25.2X36X2)
$6.64¢3 319
1
#19
90454-MT4-000
WASHER (63X40X1.4)
$7.72¢3 863
1
#20
91025-MGE-D00
BEARING, NEEDLE (48X54X24)
$17.40¢8 700
1
#21
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
