MIDDLE COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

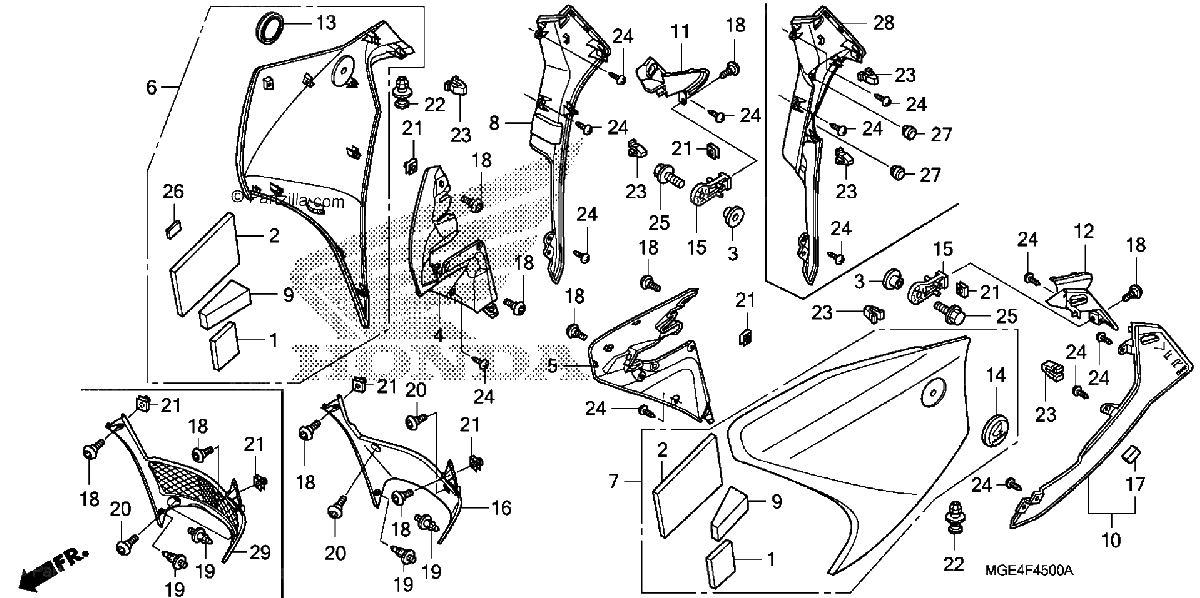

Diagrama de MIDDLE COWL

Repuestos

#1
17269-MCZ-300
MAT, SIDE COVER
$8.23¢4 117
1
#2
17542-MCW-D00
MAT B, FUEL TANK
$17.85¢8 924
1
#3
18422-MR1-000
COLLAR (8MM)
$6.66¢3 329
1
#4
64180-MGE-000
PANEL, Right Front COWL
$32.65¢16 324
1
#5
64190-MGE-000
PANEL, L Front COWL
$32.65¢16 324
1
#6
64310-MGE-000ZC
COWL SET, Right MIDDLE R342C (CANDY PROMINENCE RED)
$622.71¢311 357
1
#7
64320-MGE-000ZC
COWL SET, L MIDDLE R342C (CANDY PROMINENCE RED)
$622.71¢311 357
1
#9
64413-MGE-300
MAT A, MIDDLE COWL
$7.14¢3 571
1
#10
64420-MGE-000ZA
COWL SET, L LAYER NHA30M (WL)(DIGITAL SILVER METALLIC)
$218.52¢109 262
1
#11
64430-MGE-D00
COWL, Right LAYER (INNER)
$17.57¢8 786
1
#12
64440-MGE-000
COWL, L LAYER (INNER)
$19.11¢9 557
1
#13
64503-MFL-000
BADGE, R. PRODUCT
$41.08¢20 539
1
#14
64508-MFL-000
BADGE, L. PRODUCT
$41.08¢20 539
1
#15
64541-MGE-000
STAY, LAYER COWL (INNER)
$4.39¢2 197
1
#17
77103-MFL-300
CUSHION, SINGLE SEAT
$2.17¢1 087
1
#18
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.07¢1 535
1
#19
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#20
90117-MFL-D20
SCREW, PAN (6X14)
$2.43¢1 213
1
#21
90312-MT3-000
NUT, CLIP (5MM)
$5.11¢2 553
1
#22
91549-MW0-790ZA
CLIP, PANEL FIXING *NH1* (BLACK)
$4.71¢2 357
1
#23
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$0.93¢466
1
#24
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#25
96300-08020-00
BOLT, FLANGE (8X20)
$1.86¢932
1
#26
50383-GB6-300
RUBBER, BATTERY
$3.46¢1 731
1
#27
60107-752-000
RUBBER, FUEL LID STOPPER
$3.46¢1 731
1
#28
64410-MGE-D00ZA
COWL SET, Right LAYER NHA30M (WL)(DIGITAL SILVER METALLIC)
$153.92¢76 958
1
#29
64900-MGE-D00
COWL (LOWER) (INNER)
$32.65¢16 324
1
