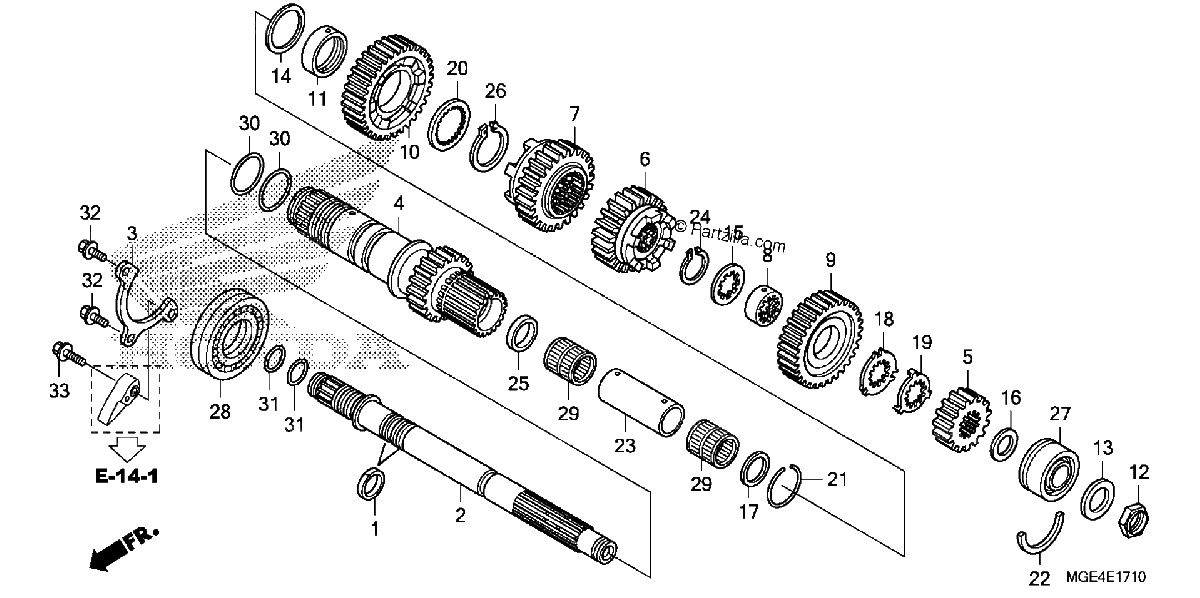

TRANSMISSION VFR1200FD MAINSHAFT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RING, SEAL (28MM)
$4.21¢2 105
#2
MAINSHAFT (INNER)
$290.59¢145 297
#3
PLATE, BEARING SETTING
$6.07¢3 036
#4
MAINSHAFT (OUTER) (19T)
$370.94¢185 472
#5
GEAR, MAINSHAFT LOW (15T)
$74.69¢37 346
#6
GEAR, MAINSHAFT THIRD (22T)
$145.70¢72 852
#7
GEAR, MAINSHAFT FOURTH (25T)
$152.10¢76 050
#8
COLLAR, SPLINE (28X13.5)
$36.63¢18 314
#9
GEAR, MAINSHAFT FIFTH (31T)
$148.27¢74 135
#10
GEAR, MAINSHAFT SIXTH (33T)
$148.27¢74 135
#11
COLLAR (40X43X12.5)
$17.51¢8 757
#12
NUT, LOCK (22MM)
$4.22¢2 110
#13
WASHER (22X38X2.5)
$6.11¢3 053
#14
WASHER (40.2X51X1)
$13.97¢6 986
#15
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
#16
WASHER B, THRUST (22MM) (BLUE)
$5.43¢2 714
#17
WASHER (28.5X32X1.5)
$9.43¢4 715
#18
WASHER, SPLINE (28MM)
$12.52¢6 262
#19
WASHER, LOCK (28MM)
$12.52¢6 262
#20
WASHER, SPLINE (40MM)
$9.56¢4 778
#21
CLIP (33.2MM)
$5.63¢2 818
#22
SET-RING (48MM)
$6.51¢3 254
#23
COLLAR, NEEDLE BEARING
$28.88¢14 438
#24
CIRCLIP (28MM)
$4.17¢2 087
#24
CIRCLIP (28MM)
$4.17¢2 087
#25
COLLAR B, NEEDLE BEARING
$9.22¢4 611
#26
CIRCLIP (40MM)
$8.22¢4 111
#27
BEARING, SPECIAL BALL (5204S)
$27.62¢13 811
#28
BEARING SET, RADIAL BALL
$61.93¢30 964
#29
BEARING, NEEDLE (28X32X27.2) (THOMPSON)
$19.23¢9 614
#30
O-RING (35.2X1.9)
$4.19¢2 093
#31
O-RING (23.3X1.9)
$2.30¢1 150
#32
BOLT, FLANGE (6X20)
$2.09¢1 047
#33
BOLT, FLANGE (6X28)
$2.15¢1 075
