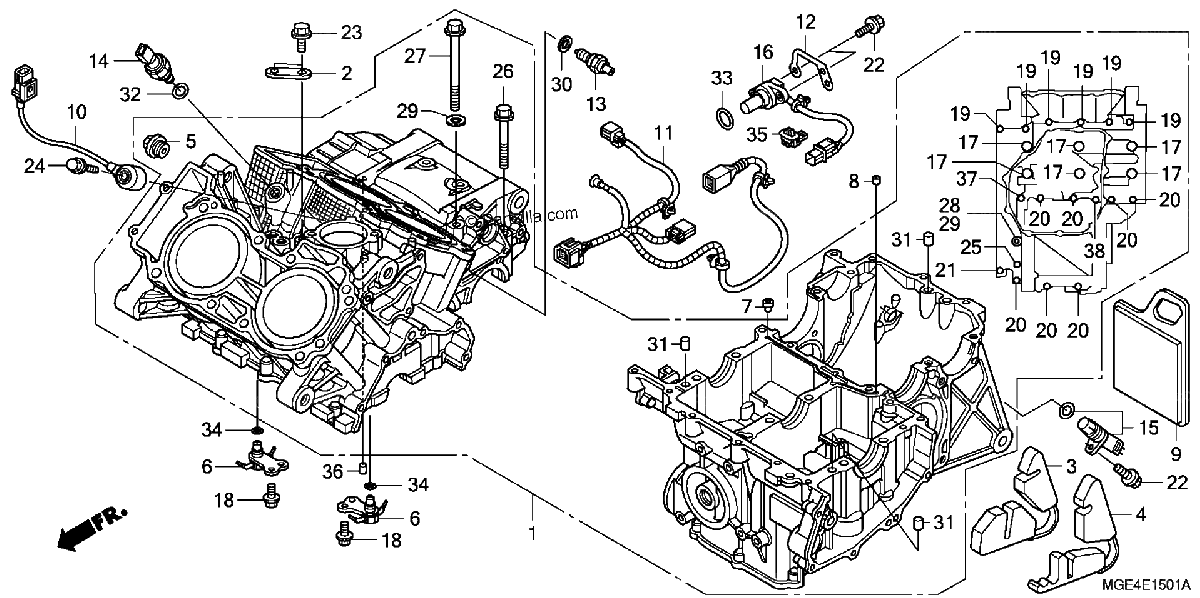

CRANKCASE 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE SET
$4333.53¢2 166 763
#2
BRIDGE, KNOCK SENSOR
$5.22¢2 613
#3
RUBBER, R. INSERT
$23.44¢11 719
#4
RUBBER, L. INSERT
$21.89¢10 944
#5
JOINT, COVER (INNER)
$29.20¢14 600
#6
JET, OIL
$48.61¢24 306
#7
ORIFICE A
$7.11¢3 556
#8
ORIFICE C
$6.80¢3 400
#9
RUBBER, RR. ENGINE
$17.38¢8 688
#10
SENSOR, KNOCK
$78.26¢39 131
#11
SUB-HARNESS, ENGINE (2)
$132.53¢66 263
#12
STAY, CONNECTOR
$4.14¢2 069
#13
SWITCH ASSY., NEUTRAL (TOYO)
$22.11¢11 056
#14
SENSOR, OIL PRESSURE
$220.39¢110 194
#15
SENSOR ASSY., SPEED
$102.91¢51 456
#16
SENSOR ASSY., SPEED
$183.84¢91 919
#17
BOLT, FLANGE (9X109)
$9.45¢4 725
#18
BOLT, KNOCK (6MM)
$3.65¢1 825
#19
BOLT, FLANGE (7X40)
$3.44¢1 719
#20
BOLT, FLANGE (6X28)
$2.81¢1 406
#21
BOLT, FLANGE (6X35)
$2.81¢1 406
#22
BOLT, FLANGE (6X16)
$3.01¢1 506
#23
BOLT, FLANGE (8X14)
$3.01¢1 506
#24
BOLT, FLANGE (8X30)
$3.44¢1 719
#25
BOLT, FLANGE (8X40)
$3.44¢1 719
#26
BOLT, FLANGE (8X70)
$4.30¢2 150
#27
BOLT, FLANGE (8X120)
$6.64¢3 319
#28
BOLT, FLANGE (8X125)
$6.64¢3 319
#29
WASHER, SEALING (8MM)
$2.92¢1 463
#30
WASHER, NEUTRAL
$2.48¢1 238
#31
PIN, DOWEL (10X16)
$5.21¢2 606
#32
O-RING (13X1.5)
$2.09¢1 044
#33
O-RING (18.1X3.6)
$4.28¢2 138
#34
O-RING (5X1.7) (ARAI)
$3.65¢1 825
#35
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
#36
PIN B, DOWEL (8X10)
$2.89¢1 444
#37
BOLT, FLANGE (8X65)
$2.21¢1 106
#38
BOLT, FLANGE (8X110)
$3.54¢1 769
