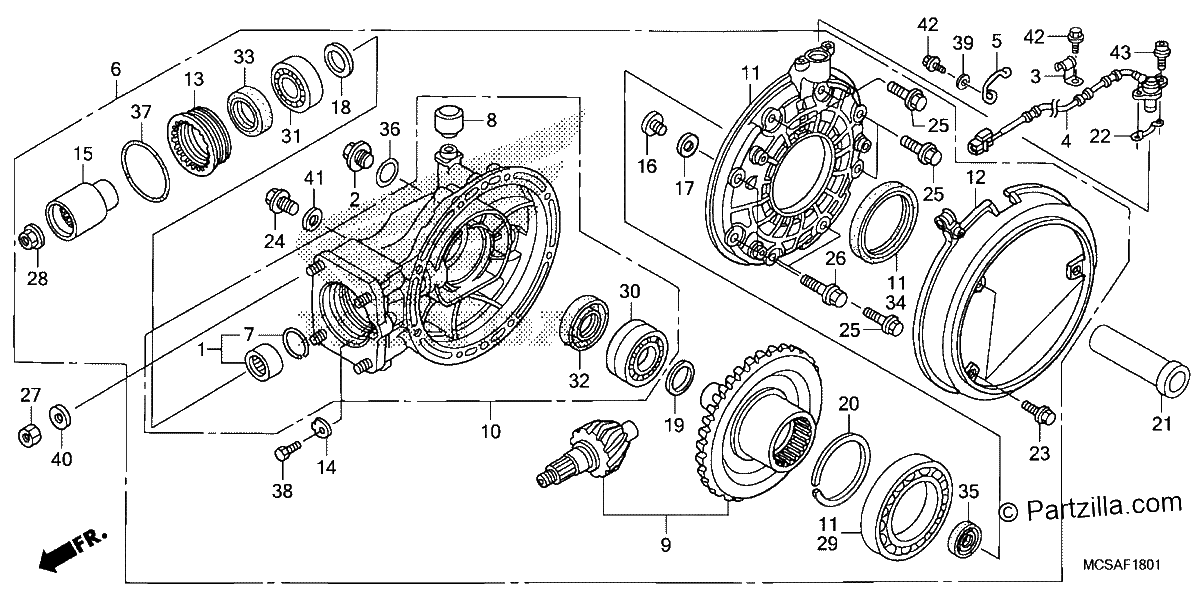

FINAL DRIVEN GEAR ST1300A
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
BEARING SET, NEEDLE
$39.08¢19 538
#002
CAP, TAPPET ADJUSTING HOLE
$11.51¢5 756
#002
CAP, VALVE ADJ.
No Disponible
#002
CAP, VALVE ADJ.
No Disponible
#003
CLIP B, TUBE
$3.63¢1 817
#004
SENSOR, RR. WHEEL SPEED
$160.91¢80 454
#005
GUIDE, SPEED SENSOR WIRE
$8.16¢4 082
#006
GEAR ASSY., FINAL DRIVEN
$2085.46¢1 042 728
#007
RING, STOPPER
$6.66¢3 329
#008
CAP, BREATHER
$9.95¢4 974
#009
GEAR SET, FINAL
$467.31¢233 657
#010
CASE SUB-ASSY., FINAL GEAR
$1441.95¢720 975
#011
COVER SUB-ASSY., FINAL GEAR
$261.11¢130 554
#012
PLATE, DUST GUARD
$36.33¢18 164
#013
RETAINER, BEARING
$136.61¢68 304
#014
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$2.98¢1 489
#014
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$2.98¢1 489
#015
JOINT, PINION
$77.96¢38 979
#016
PIN, RING GEAR STOPPER
$37.80¢18 900
#017
SHIM A, STOPPER PIN (0.10)
$6.27¢3 134
#017
SHIM B, STOPPER PIN (0.15)
$5.73¢2 864
#018
SHIM H, PINION GEAR (1.53)
$8.81¢4 405
#018
SHIM M, PINION GEAR (1.68)
$8.81¢4 405
#018
SHIM L, PINION GEAR (1.65)
$8.81¢4 405
#018
SHIM K, PINION GEAR (1.62)
$8.81¢4 405
#018
SHIM J, PINION GEAR (1.59)
$8.81¢4 405
#018
SHIM I, PINION GEAR (1.56)
$8.81¢4 405
#018
SHIM A, PINION GEAR (1.32)
$8.81¢4 405
#018
SHIM G, PINION GEAR (1.50)
$8.81¢4 405
#018
SHIM F, PINION GEAR (1.47)
$8.81¢4 405
#018
SHIM E, PINION GEAR (1.44)
$8.81¢4 405
#018
SHIM D, PINION GEAR (1.41)
$8.81¢4 405
#018
SHIM C, PINION GEAR (1.38)
$8.81¢4 405
#018
SHIM B, PINION GEAR (1.35)
$8.81¢4 405
#019
WASHER, SPECIAL (35X40)
$14.54¢7 268
#020
SHIM Q, RING GEAR (2.30)
$26.89¢13 443
#020
SHIM P, RING GEAR (2.27)
$26.89¢13 443
#020
SHIM O, RING GEAR (2.24)
$26.89¢13 443
#020
SHIM J, RING GEAR (2.09)
$26.89¢13 443
#020
SHIM N, RING GEAR (2.21)
$26.89¢13 443
#020
SHIM M, RING GEAR (2.18)
$26.89¢13 443
#020
SHIM L, RING GEAR (2.15)
$26.89¢13 443
#020
SHIM K, RING GEAR (2.12)
$28.09¢14 047
#020
SHIM D, RING GEAR (1.91)
$26.89¢13 443
#020
SHIM I, RING GEAR (2.06)
$28.09¢14 047
#020
SHIM H, RING GEAR (2.03)
$26.89¢13 443
#020
SHIM G, RING GEAR (2.00)
$28.09¢14 047
#020
SHIM F, RING GEAR (1.97)
$26.89¢13 443
#020
SHIM E, RING GEAR (1.94)
$28.09¢14 047
#020
SHIM C, RING GEAR (1.88)
$26.89¢13 443
#020
SHIM B, RING GEAR (1.85)
$28.09¢14 047
#020
SHIM A, RING GEAR (1.82)
$26.89¢13 443
#021
COLLAR B, RR. AXLE DISTANCE
$36.74¢18 371
#022
SHIM, WHEEL SENSOR
$23.36¢11 678
#023
BOLT, FLANGE (6X12) (CT200)
$1.75¢874
#024
BOLT, PLUG (14MM)
$7.57¢3 783
#025
BOLT, FLANGE (8X27)
$9.04¢4 520
#026
BOLT, FLANGE (10X35)
$8.80¢4 399
#027
NUT, HEX. (10MM)
$5.43¢2 714
#028
NUT, HEX. (16MM)
$8.07¢4 036
#029
BEARING, RADIAL BALL (65X100X11) (TOYO)
$125.29¢62 646
#030
BEARING, RADIAL BALL (35X62X19)
$49.39¢24 696
#031
BEARING, RADIAL BALL (QJ3/28V1)
$72.50¢36 248
#032
OIL SEAL (35X54X8) (NOK)
$16.93¢8 464
#033
OIL SEAL (39X56X7) (NOK)
$14.39¢7 193
#034
OIL SEAL (65X85X7) (NOK)
$18.14¢9 068
#035
DUST SEAL (26X40X5)
$7.38¢3 691
#036
O-RING (30.8MM)
$4.17¢2 087
#037
O-RING (64.5X3.5) (ARAI)
$5.04¢2 519
#038
BOLT, HEX. (6X12)
$1.68¢839
#039
WASHER, PLAIN (6MM)
$0.77¢385
#039
WASHER, PLAIN (6MM)
$0.77¢385
#039
WASHER, PLAIN (6MM)
$0.77¢385
#040
WASHER, PLAIN (10MM)
$1.36¢678
#041
WASHER, DRAIN PLUG (14MM)
$0.74¢368
#042
BOLT, FLANGE (6X14)
$1.13¢564
#043
BOLT, FLANGE (6X14)
$2.13¢1 064
