REAR FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

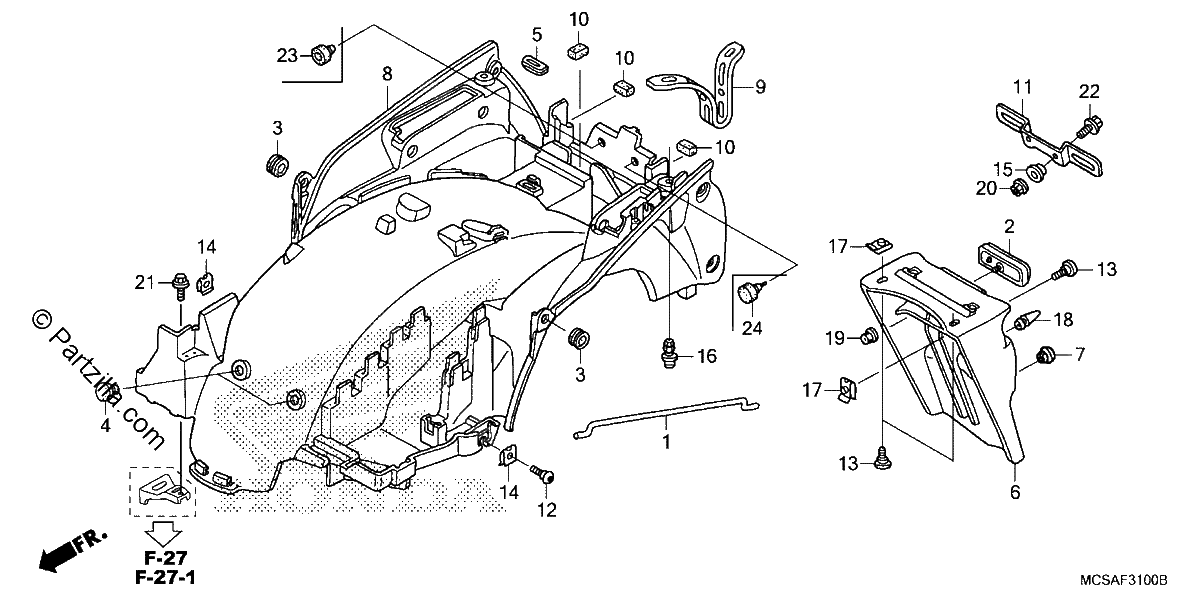

Diagrama de REAR FENDER

Repuestos

#001
17891-MCJ-750
ROD, TANK OPEN
$19.14¢9 569
1
#002
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
1
#003
36130-ZA8-801
GROMMET, TUBE
$3.19¢1 594
1
#004
50318-041-600
PLUG, HOLE
$2.71¢1 356
1
#005
77309-KK6-000
GROMMET, TOOL TRAY
$3.49¢1 744
1
#006
80100-MCS-770
FENDER A, RR.
$52.13¢26 063
1
#007
80103-192-600
PLUG, RR. FENDER
$5.16¢2 581
1
#008
80106-MCS-D90
FENDER B, RR.
$186.05¢93 025
1
#009
80109-MCS-D90
BAND, UNIT
$8.97¢4 488
1
#010
83605-MCS-G00
SEAL, RUBBER
$2.40¢1 200
1
#011
84700-MCS-770
BRACKET, NUMBER PLATE
$17.50¢8 750
1
#012
90106-MBL-610
SCREW, SPECIAL (6MM)
$2.88¢1 438
1
#013
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#014
90320-747-000
NUT, SPRING (6MM)
$2.88¢1 438
1
#015
90556-KR3-000
WASHER, CHAIN SLIDER
$3.98¢1 988
1
#016
90657-SB0-003
CLIP, SPLASH SHIELD
$6.39¢3 194
1
#017
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#018
90899-KL8-000
PLUG, CONE
$4.20¢2 100
1
#019
94050-05000
NUT, FLANGE (5MM)
$1.68¢838
1
#020
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#021
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#022
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#023
77206-GF0-000
RUBBER, SEAT CUSHION
$6.61¢3 306
1
#024
95011-62000
RUBBER B, STAND STOPPER
$1.72¢862
1
