TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

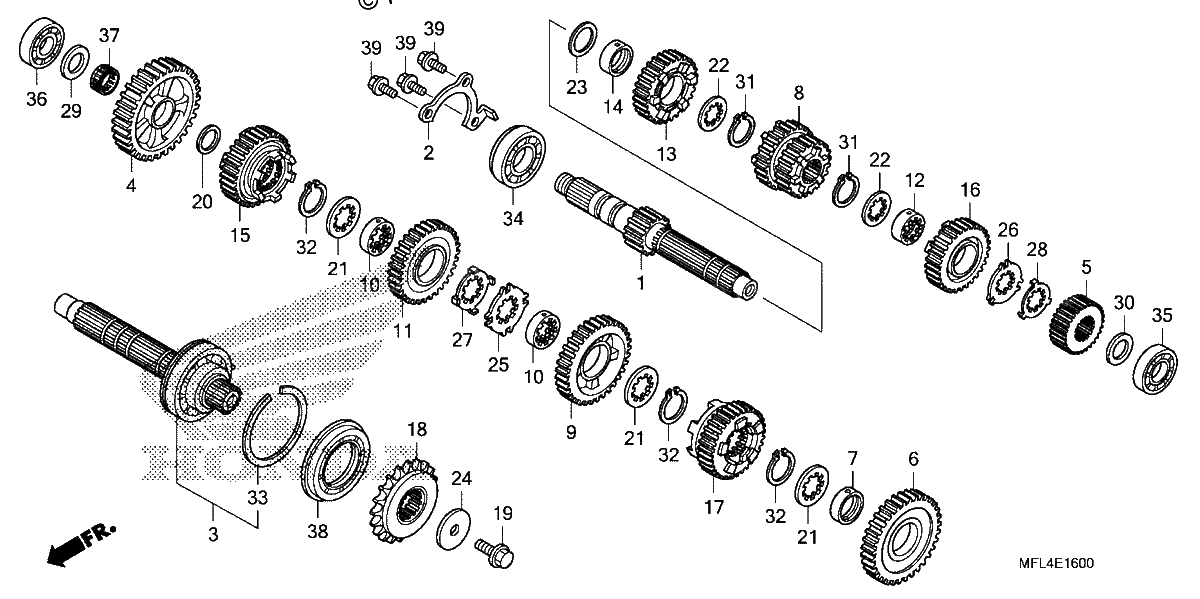

Diagrama de TRANSMISSION

Repuestos

#001
23211-MFL-000
MAINSHAFT (14T)
$198.18¢99 090
1
#002
23212-MFL-000
PLATE, BEARING SETTING
$9.33¢4 663
1
#003
23220-MFL-000
COUNTERSHAFT
$241.41¢120 704
1
#004
23421-MFL-000
GEAR, COUNTERSHAFT FIRST (32T)
$130.80¢65 400
1
#005
23431-MFL-000
GEAR, MAINSHAFT SECOND (18T)
$71.77¢35 886
1
#006
23441-MFL-000
GEAR, COUNTERSHAFT SECOND (32T)
$171.23¢85 617
1
#006
23441-MGP-000
GEAR, COUNTERSHAFT SECOND (32T)
$171.23¢85 617
1
#007
23442-MCJ-000
COLLAR (30X9.5)
$15.19¢7 596
1
#008
23451-MFL-000
GEAR, MAINSHAFT THIRD FOURTH (22T/24T)
$170.54¢85 273
1
#009
23461-MGP-000
GEAR, COUNTERSHAFT THIRD (33T)
$178.95¢89 476
1
#009
23461-MFL-000
GEAR, COUNTERSHAFT THIRD (33T)
$178.95¢89 476
1
#010
23462-MAT-000
COLLAR, SPLINE (30X11)
$27.24¢13 622
1
#011
23481-MFL-000
GEAR, COUNTERSHAFT FOURTH (32T)
$140.83¢70 414
1
#011
23481-MGP-000
GEAR, COUNTERSHAFT FOURTH (32T)
$140.83¢70 414
1
#012
23482-MR7-000
COLLAR, SPLINE (28X13.5)
$36.63¢18 314
1
#013
23491-MFL-000
GEAR, MAINSHAFT FIFTH (28T)
$138.11¢69 057
1
#014
23495-MM5-000
COLLAR (28X13)
$27.24¢13 622
1
#015
23501-MFL-000
GEAR, COUNTERSHAFT FIFTH (34T)
$158.29¢79 143
1
#016
23511-MFL-000
GEAR, MAINSHAFT SIXTH (29T)
$138.11¢69 057
1
#017
23521-MFL-000
GEAR, COUNTERSHAFT SIXTH (33T)
$158.29¢79 143
1
#018
23801-MCJ-750
SPROCKET, DRIVE (16T)
$98.66¢49 329
1
#019
90037-422-003
BOLT, SPECIAL (10MM)
$8.18¢4 088
1
#020
90402-HA5-000
WASHER, THRUST (24MM)
$4.08¢2 041
1
#021
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$3.90¢1 949
1
#022
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#023
90458-729-920
WASHER, THRUST (28MM)
$6.34¢3 168
1
#024
90459-438-000
WASHER (10.2MM)
$6.51¢3 254
1
#025
90463-MAT-000
WASHER, SPLINE (30MM)
$5.40¢2 702
1
#026
90463-MCJ-000
WASHER, SPLINE (28MM)
$6.58¢3 289
1
#027
90464-MAT-000
WASHER, LOCK (30MM)
$7.96¢3 979
1
#028
90464-MCJ-000
WASHER, LOCK (28MM)
$6.58¢3 289
1
#029
90469-759-000
SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)
$7.64¢3 818
1
#030
90554-MEL-000
WASHER, THRUST (20MM)
$2.28¢1 138
1
#031
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#032
90604-MM5-000
CIRCLIP (30MM)
$4.99¢2 496
1
#033
90605-MM5-000
RING, SNAP (72MM)
$10.73¢5 365
1
#034
91001-MFL-003
BEARING, RADIAL BALL (28X62X16)
$23.49¢11 747
1
#035
91002-MFL-003
BEARING, SPECIAL (20X47X15.5)
$25.71¢12 857
1
#036
91003-MFL-003
BEARING, SPECIAL (20X52X15)
$23.49¢11 747
1
#037
91026-MEL-003
BEARING, NEEDLE (24X28X10)
$12.88¢6 440
1
#038
91207-MAT-003
OIL SEAL (45X72X8)
$18.99¢9 493
1
#039
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
