CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

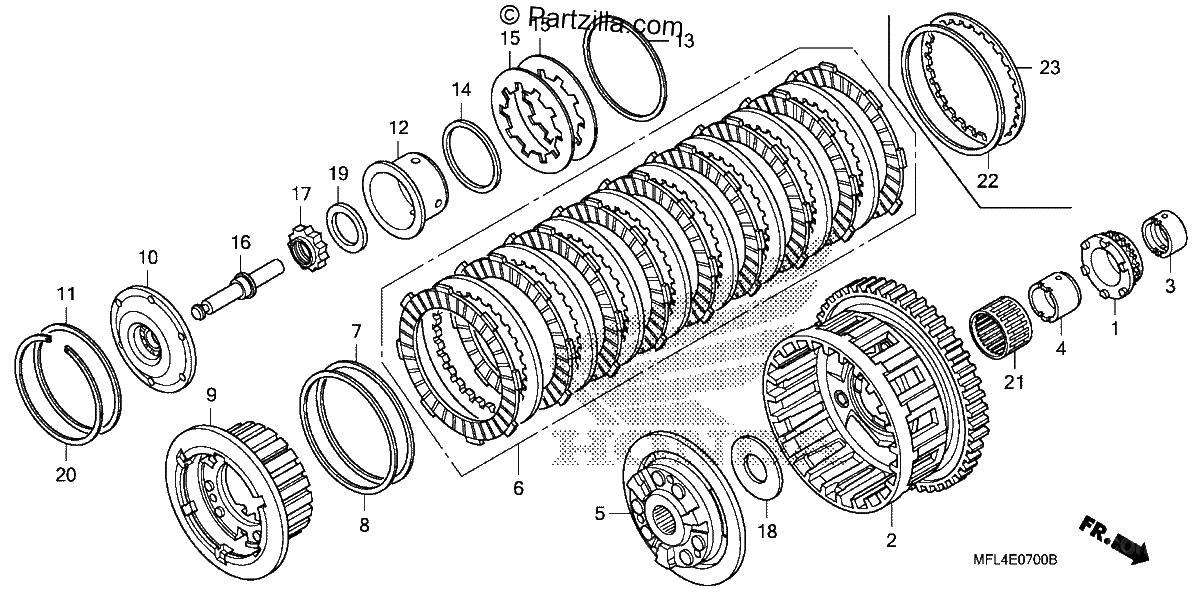

Diagrama de CLUTCH

Repuestos

#001
15131-MEL-003
SPROCKET, OIL PUMP DRIVE (26T)
$79.23¢39 613
1
#002
22110-MFL-880
CLUTCH OUTER B (YELLOW)
$418.05¢209 025
1
#002
22115-MFL-880
CLUTCH OUTER C (GREEN)
$443.49¢221 744
1
#002
22100-MFL-880
CLUTCH OUTER A (BLUE)
$418.05¢209 025
1
#003
22116-MEL-000
COLLAR, OIL PUMP SPROCKET
$21.27¢10 638
1
#004
22117-MFL-880
GUIDE A, CLUTCH (OUTER) (2MM HOLE X2)
$24.04¢12 019
1
#004
22118-MFL-880
GUIDE B, CLUTCH (OUTER) (2MM HOLE X3)
$25.13¢12 563
1
#004
22119-MFL-880
GUIDE C, CLUTCH (OUTER) (2MM HOLE X4)
$24.04¢12 019
1
#005
22120-MFL-880
CENTER, CLUTCH
$290.10¢145 050
1
#006
22210-MFL-880
DISK SET, CLUTCH
$224.93¢112 463
1
#009
22350-MFL-880
PLATE, CLUTCH PRESSURE
$318.34¢159 169
1
#010
22354-MFL-000
LIFTER, CLUTCH
$70.92¢35 463
1
#011
22356-MFL-000
SEAT, CLUTCH LIFTER
$17.01¢8 506
1
#012
22365-MFL-000
HOLDER, CLUTCH SPRING
$50.94¢25 469
1
#013
22366-MFL-000
SEAT, CLUTCH SPRING
$15.97¢7 988
1
#014
22368-MFL-000
SEAT B, CLUTCH SPRING
$11.64¢5 819
1
#015
22401-MFL-000
SPRING, CLUTCH
$11.64¢5 819
1
#015
22401-MFL-950
SPRING, CLUTCH
$11.92¢5 962
1
#016
22847-MFL-000
PIN, CLUTCH LIFTER
$31.05¢15 525
1
#017
90231-MS2-610
NUT, LOCK (25MM)
$21.80¢10 900
1
#018
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$20.43¢10 213
1
#019
90407-MFL-000
WASHER (25.1X37X3.2)
$5.02¢2 512
1
#020
90601-MFL-000
CIRCLIP (INNER) (102)
$7.30¢3 650
1
#021
91101-MFL-881
BEARING A, NEEDLE (35X41X27.8) (RED)
$11.68¢5 838
1
#021
91102-MFL-881
BEARING B, NEEDLE (35X41X27.8) (WHITE)
$10.00¢5 000
1
#021
91103-MFL-880
BEARING C, NEEDLE (35X41X27.8) (GREEN)
$11.16¢5 581
1
#021
91103-MFL-881
BEARING C, NEEDLE (35X41X27.8) (GREEN)
$11.16¢5 581
1
#022
22325-MFL-950
SPRING, CLUTCH PLATE
$13.11¢6 556
1
#023
22326-MFL-950
SEAT, JUDDER SPRING
$13.04¢6 519
1
