MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

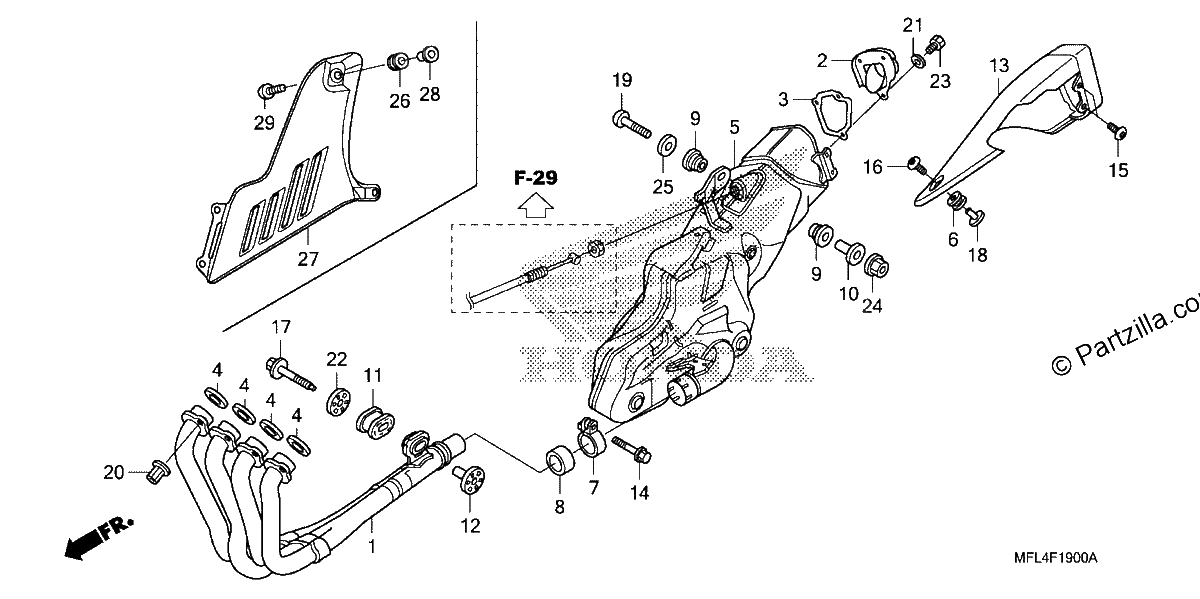

Diagrama de MUFFLER

Repuestos

#001
18150-MFL-A20
PIPE, EX.
$780.53¢390 264
1
#002
18161-MFL-670
PLATE, COVER END
$28.46¢14 231
1
#004
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#005
18310-MFL-305
MUFFLER (COO)
$2385.66¢1 192 832
1
#005
18310-MFL-A20
MUFFLER
$2385.66¢1 192 832
1
#005
18310-MFL-A21
MUFFLER
$2385.66¢1 192 832
1
#006
18357-MCG-000
RUBBER, PROTECTOR MOUNTING
$3.36¢1 679
1
#007
18371-MFL-000
BAND, MUFFLER
$34.05¢17 026
1
#008
18391-MEL-000
GASKET, MUFFLER
$23.62¢11 811
1
#009
18421-MFL-000
RUBBER, MUFFLER MOUNTING
$7.76¢3 881
1
#010
18422-MA6-000
COLLAR, MUFFLER MOUNTING
$8.83¢4 416
1
#011
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$21.88¢10 942
1
#012
18423-MFJ-D00
COLLAR, EX. PIPE MOUNTING
$7.47¢3 738
1
#013
18425-MFL-000
GUARD, MUFFLER
No Disponible
1
#014
90103-KCM-620
BOLT, FLANGE (8X35)
$1.86¢932
1
#015
90106-GBB-710
SCREW, PAN (6X10)
$1.49¢747
1
#016
90111-MFL-D20
SCREW, PAN (6X14)
$2.33¢1 167
1
#017
90120-MFJ-D00
BOLT, FLANGE (8X50) (GUIDE)
$2.85¢1 426
1
#018
90122-463-770
COLLAR, COWL SETTING (LOWER)
$4.91¢2 455
1
#019
90172-MFL-000
BOLT, SOCKET (8X43)
$4.16¢2 081
1
#020
90304-MM5-000
NUT, FLANGE (7MM)
$5.51¢2 754
1
#021
90452-GK4-600
WASHER, PLAIN (5MM)
$1.59¢793
1
#022
90501-MFJ-D00
WASHER (8.5X38)
$2.54¢1 271
1
#023
92101-05008-4J
BOLT, HEX. (5X8)
$2.68¢1 340
1
#024
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#025
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#026
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#027
18350-MFL-D20
COVER, MUFFLER
$149.15¢74 577
1
#028
84706-415-000
COLLAR
$2.77¢1 386
1
#029
90120-MFL-D20
SCREW, PAN (6X14)
$2.28¢1 138
1
