IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

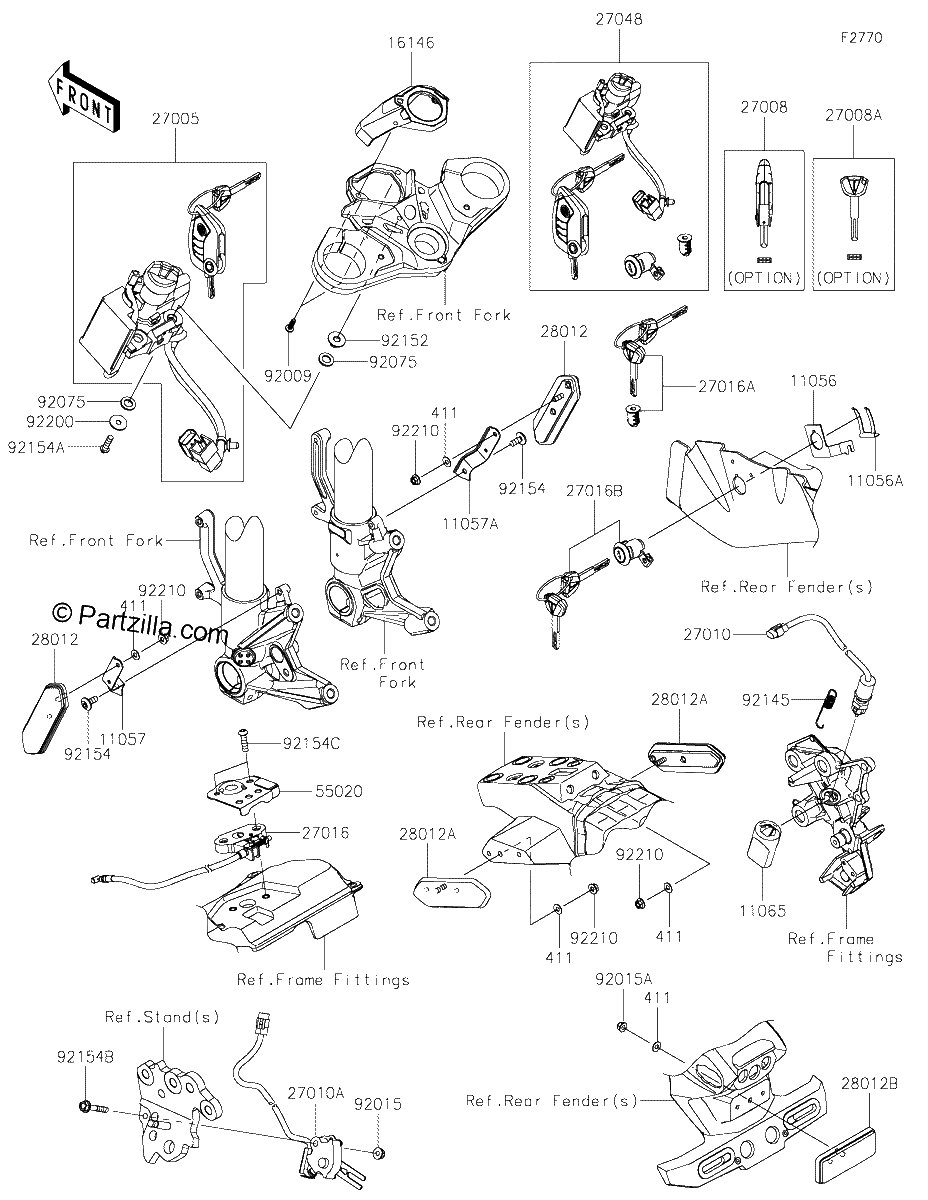

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#411
411AA0500
WASHER-PLAIN,5MM
$0.66¢331
1
#11056
11056-0237
BRACKET
$4.38¢2 188
1
#11056A
11056-0238
BRACKET,CLASP
$5.90¢2 950
1
#11057A
11057-1301
BRACKET,REFLECTOR,RH
$6.51¢3 256
1
#11057
11057-1300
BRACKET,REFLECTOR,LH
$6.51¢3 256
1
#11065
11065-0381
CAP,RR BRAKE SWITCH
$13.57¢6 788
1
#16146
16146-0849
COVER Assembly,SWITCH KNOB
$12.50¢6 250
1
#27005
27005-0728
SWITCH-ASSY-IGNITION
$1674.34¢837 169
1
#27008A
27008-0686
KEY LOCK,BLANK
$77.53¢38 763
1
#27008
27008-0680
FOB KEY,BLANK
$455.02¢227 513
1
#27010A
27010-0872
SWITCH,SIDE STAND
$105.20¢52 600
1
#27010
27010-0836
SWITCH,STOP
$42.50¢21 250
1
#27016B
27016-5427
LOCK-ASSY,SEAT
$171.38¢85 688
1
#27016A
27016-5425
LOCK Assembly,TANK CAP
$161.21¢80 606
1
#27016
27016-0098
LOCK Assembly,SEAT STRIKER
$56.69¢28 344
1
#27048
27048-5298
SWITCH Assembly
$1924.42¢962 213
1
#28012B
28012-1077
REFLECTOR-REFLEX
$25.47¢12 737
1
#28012A
28012-0046
REFLECTOR-REFLEX,RED,CCC
$18.27¢9 138
1
#28012
28012-0045
REFLECTOR-REFLEX,CCC
$18.27¢9 138
1
#55020
55020-2259
GUARD,SEAT STRIKER
$6.95¢3 475
1
#92009
92009-1264
SCREW,TAPPING,5X16
$2.94¢1 469
1
#92015A
92015-1752
NUT,LOCK,FLANGED,5MM
$4.29¢2 144
1
#92015
92015-1603
NUT,LOCK,FLANGED,6MM
$4.65¢2 325
1
#92075
92075-1564
DAMPER
$5.41¢2 706
1
#92145
92145-1794
SPRING
$6.45¢3 225
1
#92152
92152-2961
COLLAR
$11.53¢5 763
1
#92154C
92154-4458
BOLT,SOCKET,6X22
$2.48¢1 238
1
#92154B
92154-4455
BOLT,FLANGED,6X35
$2.48¢1 238
1
#92154A
92154-1858
BOLT,TORX,6X22
$3.93¢1 963
1
#92154
92154-0745
BOLT,SOCKET,6X14
$2.16¢1 081
1
#92200
92200-0212
WASHER,6X20X1.6
$3.01¢1 506
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.48¢1 238
1
