REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

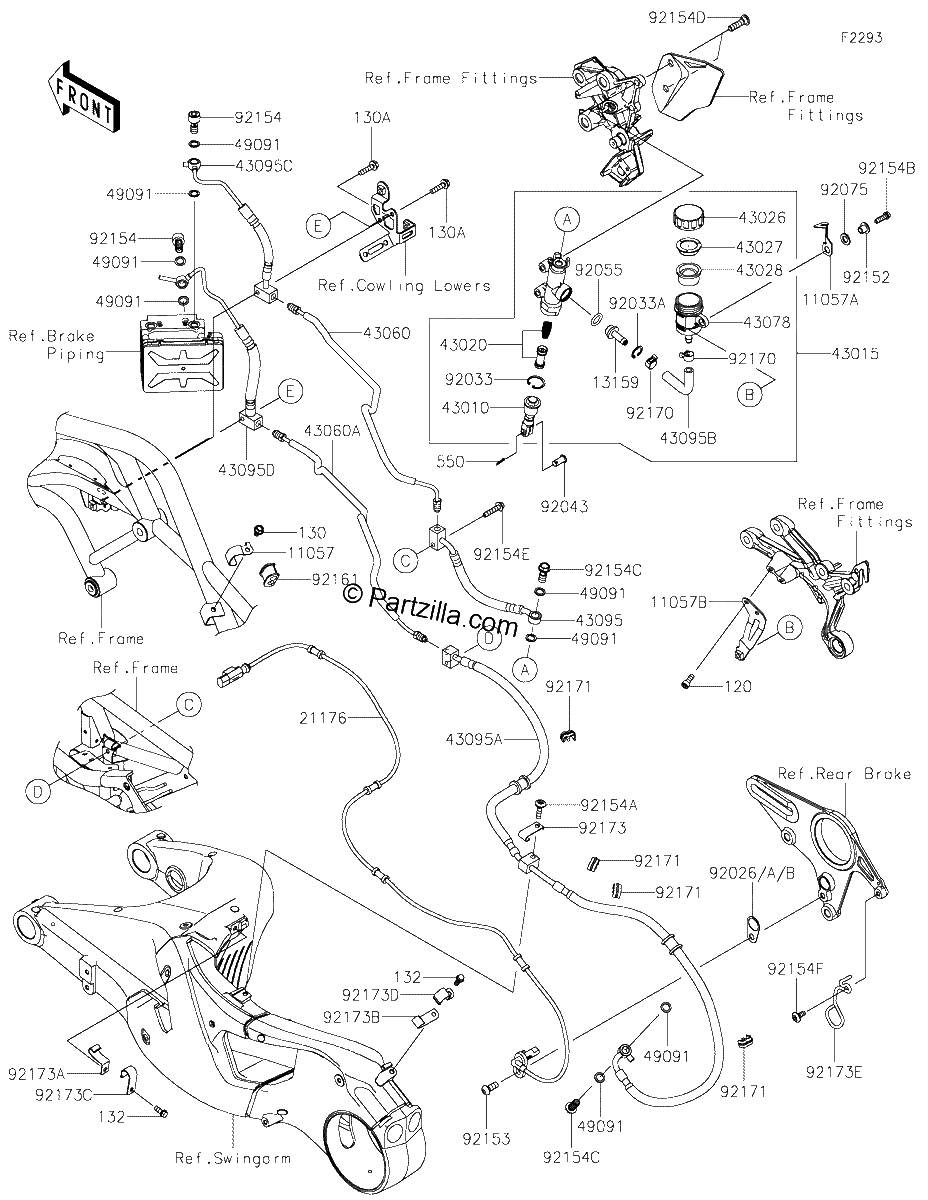

Diagrama de REAR MASTER CYLINDER

Repuestos

#120
120CB0616
BOLT-SOCKET,6X16
$1.30¢650
1
#130
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.30¢1 150
1
#130A
130BB0625
BOLT-FLANGED,6X25
$2.40¢1 200
1
#132
132BB0614
BOLT FLANGED SMALL,6X14
$2.30¢1 150
1
#550
550AA2015
PIN COTTER,2.0X15
$1.17¢587
1
#11057
11057-0419
BRACKET,BRAKE PIPE
$8.82¢4 413
1
#11057B
11057-1472
BRACKET,RR RESERVOIR TANK
$7.00¢3 500
1
#11057A
11057-1315
BRACKET,CAP
$6.25¢3 125
1
#13159
13159-1065
CONNECTOR
$8.39¢4 194
1
#21176
21176-0869
SENSOR,SPEED,RR
$138.35¢69 175
1
#43010
43010-0023
ROD-ASSY-BRAKE
$61.45¢30 725
1
#43015
43015-0790
CYLINDER-ASSY-MASTER,RR
$297.14¢148 569
1
#43020
43020-1094
PISTON-COMP-BRAKE
$74.31¢37 156
1
#43026
43026-0009
CAP-BRAKE
$45.41¢22 706
1
#43027
43027-1053
PLATE DIAPHRAGM
$5.81¢2 906
1
#43028
43028-1065
DIAPHRAGM
$20.89¢10 444
1
#43060
43060-0333
PIPE-BRAKE,JOINT CONNECT,M/C
$93.28¢46 638
1
#43060A
43060-0334
PIPE-BRAKE,JOINT CONNECT,CAL
$101.80¢50 900
1
#43078
43078-0060
RESERVOIR
$39.50¢19 750
1
#43095
43095-1501
HOSE-BRAKE,RR M/CYL.-ABS UNIT
$205.86¢102 931
1
#43095B
43095-1518
HOSE-BRAKE,RR CALIPER
$26.69¢13 344
1
#43095A
43095-1504
HOSE-BRAKE,RR JOINT-RR CALIPER
$520.05¢260 025
1
#43095C
43095-1782
HOSE-BRAKE,ABS UNIT-RR M/C
$167.94¢83 969
1
#43095D
43095-1783
HOSE-BRAKE,ABS UNIT-RR CALIPER
$171.95¢85 975
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
1
#92026
92026-0789
SPACER,RR SENSOR,T0.5
$13.75¢6 875
1
#92026
92026-0790
SPACER,RR SENSOR,T1.0
$19.06¢9 531
1
#92026
92026-0791
SPACER,RR SENSOR,T1.5
$20.46¢10 231
1
#92033A
92033-1186
RING-SNAP,20.5MM
$4.92¢2 463
1
#92033
92033-0079
RING SNAP,20.9X24.6X1.2
$7.74¢3 869
1
#92043
92043-0104
PIN,8X17
$3.89¢1 944
1
#92055
92055-0741
RING O,14.8X2.4
$3.67¢1 838
1
#92075
92075-1564
DAMPER
$5.41¢2 706
1
#92152
92152-2960
COLLAR
$10.48¢5 238
1
#92153
92153-0912
BOLT,SOCKET,8X20
$2.41¢1 206
1
#92154E
92154-1736
BOLT,SOCKET,6X30
$3.10¢1 550
1
#92154D
92154-1723
BOLT,SOCKET,8X30
$3.93¢1 963
1
#92154C
92154-1712
BOLT,BANJO,10X23
$4.16¢2 081
1
#92154B
92154-1644
BOLT,SOCKET,6X20
$2.30¢1 150
1
#92154F
92154-1807
BOLT,SOCKET,6X14
$2.97¢1 487
1
#92154A
92154-1532
BOLT,SOCKET,6X25
$2.29¢1 144
1
#92154
92154-1121
BOLT,BANJO,10X20.8
$28.88¢14 438
1
#92161
92161-1894
DAMPER,BRAKE PIPE
$17.57¢8 788
1
#92170
92170-1091
CLAMP,HOSE
$4.96¢2 481
1
#92171
92171-0921
CLAMP
$4.84¢2 419
1
#92173A
92173-1379
CLAMP,SWING ARM,Front,Lower
$6.13¢3 063
1
#92173B
92173-1380
CLAMP,SWING ARM,Rear,Lower
$5.60¢2 800
1
#92173C
92173-1382
CLAMP,SWING ARM,Front,Upper
$4.92¢2 463
1
#92173D
92173-1383
CLAMP,SWING ARM,Rear,Upper
$6.89¢3 444
1
#92173
92173-1378
CLAMP,SWING ARM,MID
$5.60¢2 800
1
#92173E
92173-2479
CLAMP
$18.49¢9 244
1
