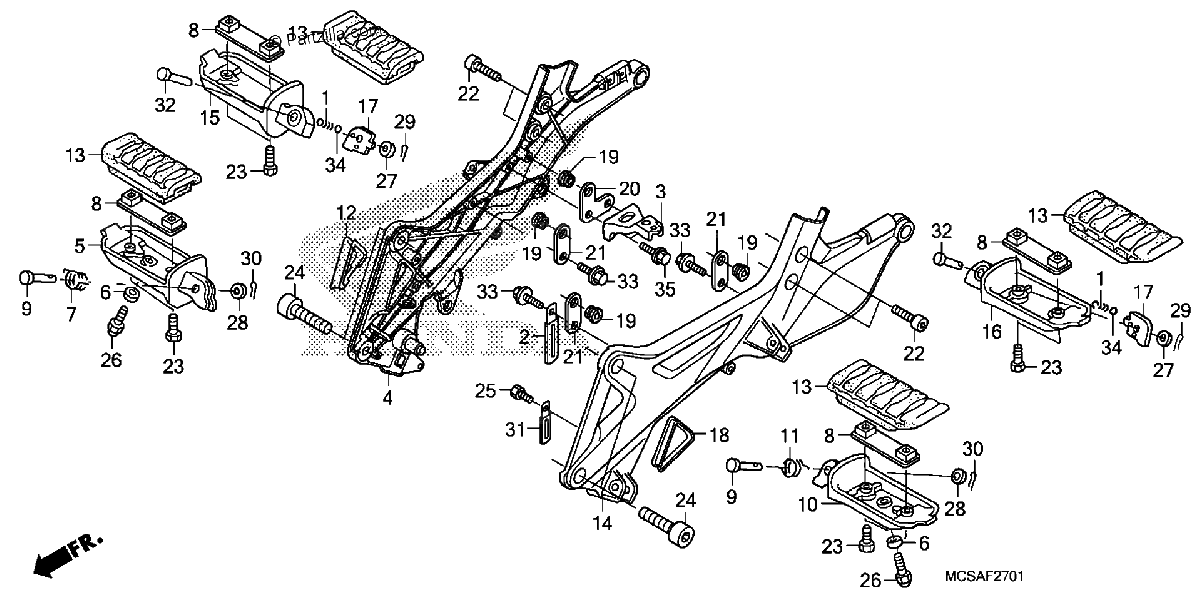

Diagrama de STEP 08

Repuestos

#1
28333-300-000
SPRING, KICK STARTER STOPPER
$3.36¢1 679
1
#2
32925-958-000
CLIP, PULSER WIRE
$3.36¢1 679
1
#3
50325-MCS-G00
STAY, BATTERY
$12.54¢6 268
1
#4
50600-MCS-D90ZA
HOLDER, R. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)
$484.75¢242 374
1
#5
50612-MT3-000
ARM, R. STEP
$46.52¢23 259
1
#5
50612-MT3-305
ARM, R. STEP (COO)
$46.52¢23 259
1
#6
50613-MT3-000
COLLAR (5.0)
$3.53¢1 765
1
#7
50617-MM5-000
SPRING, R. STEP RETURN
$5.35¢2 674
1
#8
50619-MT3-000
PLATE, STEP SETTING
$14.14¢7 073
1
#9
50639-ML0-010
PIN, STEP BAR
$5.65¢2 823
1
#10
50642-MT3-000
ARM, L. STEP
$53.13¢26 565
1
#10
50642-MT3-305
ARM, L. STEP (COO)
$53.13¢26 565
1
#11
50644-MM5-000
SPRING, L. STEP RETURN
$5.35¢2 674
1
#12
50653-MCS-A30
COVER, R. STEP
$17.48¢8 740
1
#13
50661-MT3-000
RUBBER, STEP
$8.07¢4 036
1
#13
50661-MT3-305
RUBBER, STEP (COO)
$9.43¢4 715
1
#14
50700-MCS-D90ZA
HOLDER, L. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)
$461.45¢230 724
1
#15
50711-MT3-010
BAR, Right PILLION STEP
$69.45¢34 724
1
#15
50711-MT3-305
BAR, R. PILLION STEP (COO)
$69.45¢34 724
1
#16
50712-MT3-010
BAR, L. PILLION STEP
$59.05¢29 526
1
#16
50712-MT3-305
BAR, L PILLION STEP (COO)
$59.05¢29 526
1
#17
50718-MT3-000
PLATE, PILLION STEP CLICK
$5.51¢2 754
1
#18
50753-MCS-A30
COVER, L. STEP
$17.48¢8 740
1
#19
64586-MBW-D20
RUBBER, AIR DUCT COVER SETTING
$3.42¢1 708
1
#20
83470-MCS-D90
STAY A, COVER (LOWER)
$4.98¢2 490
1
#21
83471-MCS-D90
STAY B, COVER (LOWER)
$3.89¢1 943
1
#22
90105-KAF-000
BOLT, SOCKET (10X23)
$9.17¢4 583
1
#23
90115-MT3-000
BOLT, MAIN STEP RUBBER SETTING
$3.21¢1 604
1
#24
90127-MCS-G00
BOLT, SOCKET (12X34)
$5.51¢2 754
1
#25
92101-04010-0A
BOLT, HEX. (4X10)
$0.83¢414
1
#26
92501-08016-0A
BOLT, CAP (8X16)
$3.09¢1 547
1
#27
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#27
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#27
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#28
94101-08000
WASHER, PLAIN (8MM)
$0.98¢489
1
#29
94201-16120
PIN, SPLIT (1.6X12)
$1.23¢615
1
#30
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#31
94591-25000
CLIP (2X50)
$2.74¢1 368
1
#32
95015-83000
PIN C, PILLION STEP
$2.85¢1 426
1
#33
95701-06014-07
BOLT, FLANGE (6X14)
$1.63¢816
1
#34
96211-08000
BALL, STEEL (#8) (1/4)
$1.47¢736
1
#35
96300-06016-00
BOLT, FLANGE (6X16)
$1.12¢558
1
