HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

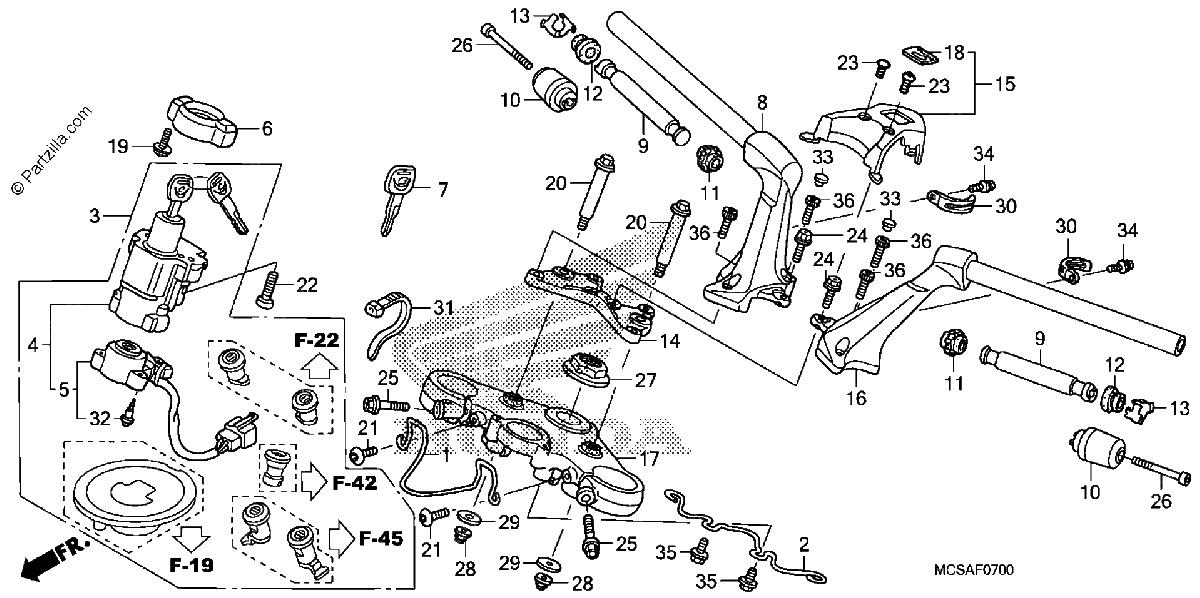

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
17970-MCS-G00
GUIDE, THROTTLE CABLE
$12.88¢6 440
1
#2
17980-MCS-G00
GUIDE, WIRE HARNESS
$10.26¢5 129
1
#3
35010-MCS-L00
LOCK SET
$585.69¢292 847
1
#3
35010-MCS-L01
LOCK SET
$585.69¢292 847
1
#4
35100-MCS-L01
SWITCH ASSY., COMBINATION LOCK
$197.25¢98 624
1
#5
35101-MCS-G01
BASE, CONTACT
$88.04¢44 022
1
#6
35106-MCS-L00
COVER, COMBINATION SWITCH
$8.28¢4 140
1
#7
35121-MAS-G01
KEY, BLANK
$13.60¢6 802
1
#8
53100-MCS-305ZA
HANDLEBAR, R. *NH295M* (COO) (SPARKLING SILVER METALLIC)
$417.13¢208 564
1
#8
53100-MCS-D90ZA
HANDLEBAR, R. *NH295M* (SPARKLING SILVER METALLIC)
$417.13¢208 564
1
#9
53105-KV3-000
WEIGHT B, HANDLEBAR
$18.61¢9 304
1
#10
53105-MCS-G00
WEIGHT, HANDLEBAR
$22.63¢11 316
1
#11
53106-MJ0-000
RUBBER A, HANDLE WEIGHT
$4.38¢2 191
1
#12
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.21¢2 105
1
#13
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$5.73¢2 864
1
#14
53111-MCS-G00
SPACER, HANDLE
$51.07¢25 536
1
#15
53115-MCS-G00ZA
COVER, HANDLE *NH295M* (SPARKLING SILVER METALLIC)
$70.77¢35 385
1
#16
53150-MCS-305ZA
HANDLEBAR, L. *NH295M* (COO) (SPARKLING SILVER METALLIC)
$362.02¢181 010
1
#16
53150-MCS-G00ZA
HANDLEBAR, L. *NH295M* (SPARKLING SILVER METALLIC)
$362.02¢181 010
1
#17
53300-MCS-G00
BRIDGE, FORK TOP
$283.82¢141 910
1
#18
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#19
90020-MCS-G00
SCREW-WASHER (5X28)
$1.92¢960
1
#20
90104-MCC-000
BOLT, SPECIAL (8MM)
$5.62¢2 812
1
#21
90106-MAV-000
SCREW, PAN
$2.59¢1 294
1
#22
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.36¢1 679
1
#23
90136-MCS-G00
SCREW, SPECIAL (4X6.5)
$3.15¢1 576
1
#24
90137-MCS-G00
BOLT, FLANGE (8X18)
$9.50¢4 749
1
#25
90165-MCJ-000
BOLT, FLANGE (8X40)
$2.86¢1 432
1
#26
90191-MAJ-G00
BOLT, SOCKET (6X70)
$3.36¢1 679
1
#27
90304-MK3-000
NUT, STEERING STEM
$19.37¢9 683
1
#28
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.74¢1 869
1
#28
90309-KF0-003
NUT, FLANGE (8MM)
$3.74¢1 869
1
#29
90535-KB9-000
WASHER, HANDLE CUSHION
$6.84¢3 421
1
#30
90601-KJ9-000
CLIP (4X50)
$3.44¢1 719
1
#31
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#32
91059-KY2-711
SCREW, TAPPING (3X16)
$3.36¢1 679
1
#33
91455-MB0-010
CAP, SOCKET BOLT (8MM)
$4.02¢2 012
1
#34
93891-05008-00
SCREW-WASHER (5X8)
$1.36¢678
1
#35
96300-06010-00
BOLT, FLANGE (6X10)
$1.12¢558
1
#35
96500-06010-00
BOLT, FLANGE (6X10)
$1.12¢558
1
#36
96700-08020-00
BOLT, SOCKET (8X20)
$2.13¢1 064
1
#36
96700-08020-10
BOLT, SOCKET (8X20)
$2.13¢1 064
1
