OIL PUMP OIL PAN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

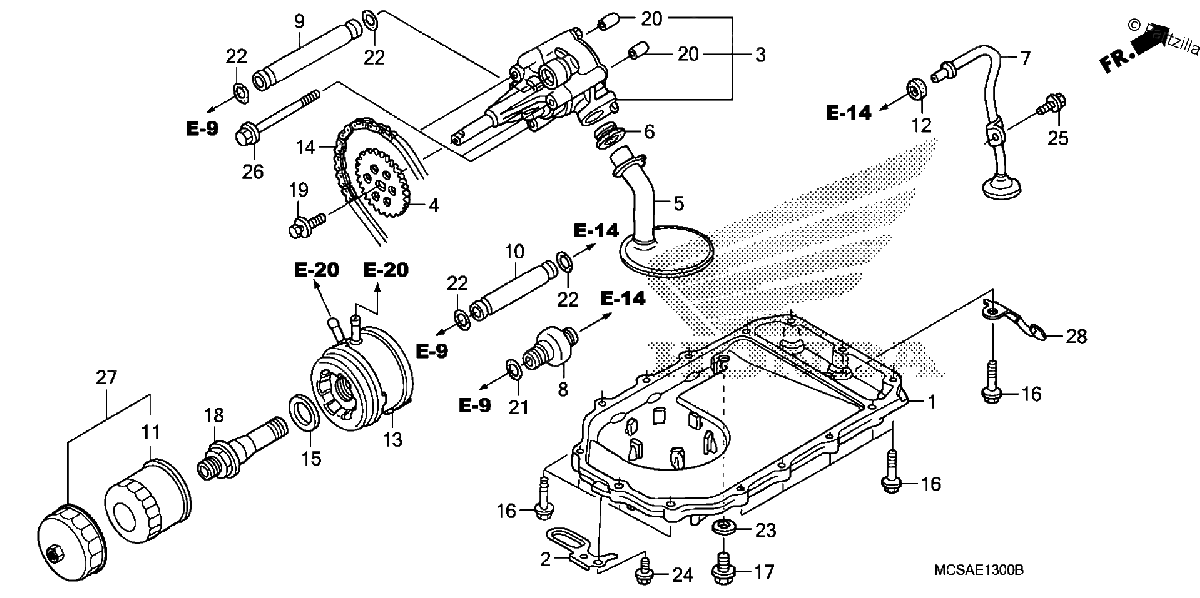

Diagrama de OIL PUMP OIL PAN

Repuestos

#1
11210-MCS-010
PAN, OIL
$287.95¢143 974
1
#2
11211-MCS-010
CLAMP A, DRAIN HOSE
$4.75¢2 375
1
#3
15100-MCS-010
PUMP ASSY., OIL
$236.45¢118 226
1
#4
15134-MCS-000
SPROCKET, OIL PUMP DRIVEN (30T)
$50.45¢25 225
1
#5
15150-MCS-000
STRAINER, OIL
$43.94¢21 971
1
#6
15154-MM5-000
GASKET, OIL STRAINER
$7.37¢3 686
1
#7
15160-MCS-000
PIPE, OIL SCAVENGING
$63.69¢31 844
1
#8
15220-MW0-000
VALVE ASSY., RELIEF
$48.30¢24 150
1
#9
15311-MCS-000
PIPE A, OIL PASSAGE
$16.78¢8 389
1
#10
15312-MCS-000
PIPE B, OIL PASSAGE
$14.86¢7 429
1
#11
15410-MFJ-D01
FILTER, OIL (TOYO ROKI)
$16.54¢8 269
1
#12
15433-KGB-610
SEAL, RING
$3.22¢1 610
1
#13
15700-MCS-003
COOLER, OIL
$329.52¢164 761
1
#14
19225-MCS-003
CHAIN, WATER PUMP DRIVE (70L)
$36.20¢18 101
1
#15
23929-PX4-700
WASHER, SPRING (24MM)
$15.42¢7 711
1
#16
90004-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$3.71¢1 857
1
#17
90004-MCS-000
BOLT, DRAIN PLUG (14MM)
$3.45¢1 725
1
#18
90019-MCJ-000
BOLT, OIL COOLER
$37.54¢18 768
1
#19
90021-MM5-000
BOLT-WASHER (6X12)
$5.70¢2 852
1
#20
90501-MB0-000
PIN, DOWEL (8X14)
$3.69¢1 846
1
#21
91313-MB0-003
O-RING (14.7X2.2) (ARAI)
$4.09¢2 047
1
#21
91313-MG7-004
O-RING (14.8X2.2)
$4.09¢2 047
1
#22
91315-MCS-003
OIL SEAL, PASSAGE PIPE (20.3MM)
$3.36¢1 679
1
#23
94109-14000
WASHER, DRAIN PLUG (14MM)
$0.74¢368
1
#24
95701-06010-00
BOLT, FLANGE (6X10)
$1.49¢747
1
#25
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#26
95701-06080-00
BOLT, FLANGE (6X80)
$2.77¢1 386
1
#28
11219-MCS-D80
CLAMP, TUBE
$4.81¢2 403
1
