ALTERNATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

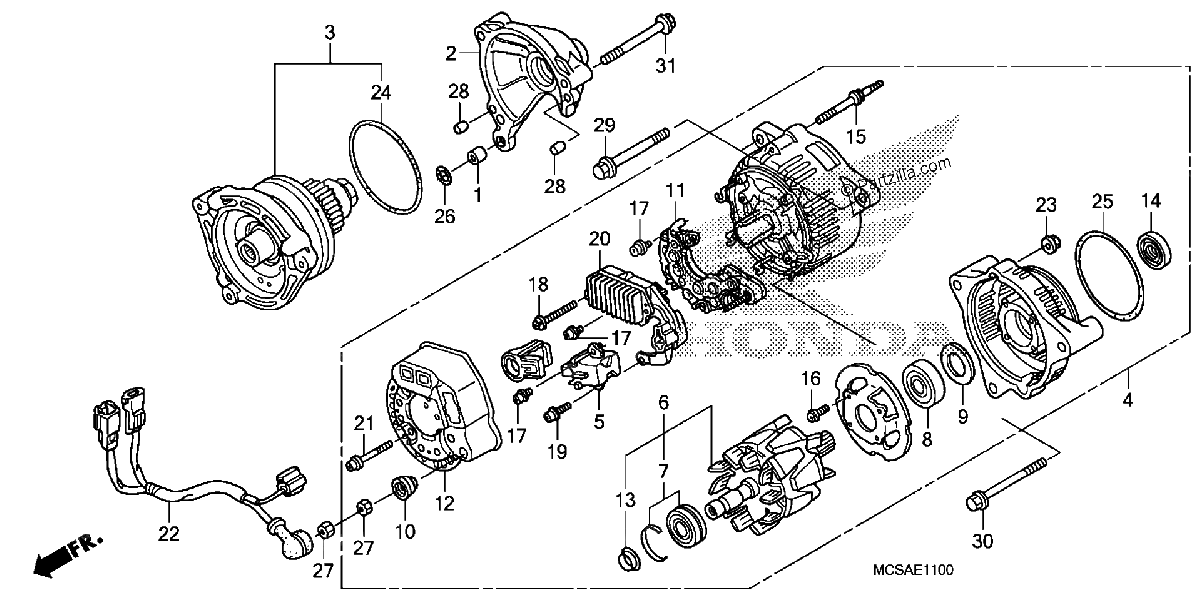

Diagrama de ALTERNATOR

Repuestos

#1
11104-MCS-000
ORIFICE (1.2MM)
$3.08¢1 538
1
#2
11203-MCS-000
HOLDER, ALTERNATOR BEARING
$105.86¢52 931
1
#3
13430-MCS-020
GEAR ASSY., ALTERNATOR DRIVEN
$567.76¢283 881
1
#4
31100-MCS-003
ALTERNATOR ASSY.
$1221.79¢610 894
1
#4
31100-MCS-013
ALTERNATOR ASSY.
$1221.79¢610 894
1
#5
31105-MAJ-G41
HOLDER ASSY., BRUSH
$54.14¢27 069
1
#6
31110-MCS-003
ROTOR ASSY.
$524.08¢262 038
1
#7
31111-MAJ-G41
BEARING, RR.
$37.31¢18 656
1
#8
31114-MCS-003
BEARING, FR.
$15.02¢7 512
1
#8
31114-MCS-013
BEARING, FR.
$15.02¢7 512
1
#9
31116-MCS-003
COVER, BEARING
$13.79¢6 894
1
#10
31119-MAJ-G41
BUSH, INSULATION
$9.36¢4 681
1
#11
31127-MCS-003
RECTIFIER ASSY.
$286.35¢143 175
1
#12
31135-MAJ-G41
COVER, RR. END
$31.34¢15 669
1
#13
31138-PD1-004
COVER, BEARING
$12.85¢6 425
1
#14
31141-MCS-003
OIL SEAL
$8.34¢4 169
1
#15
31145-PE9-941
BOLT, STUD
$7.67¢3 838
1
#16
31146-MAJ-G41
SCREW
$4.13¢2 063
1
#17
31147-PT0-003
SCREW-WASHER
$4.14¢2 069
1
#18
31148-PD1-004
SCREW-WASHER (4X25)
$4.40¢2 200
1
#19
31149-PZ1-003
SCREW
$2.39¢1 194
1
#20
31150-PZ3-003
REGULATOR ASSY.
$422.41¢211 206
1
#21
31153-PZ1-003
BOLT
$2.70¢1 350
1
#22
32130-MCS-000
SUB-HARNESS, ALTERNATOR
$31.19¢15 594
1
#23
90231-PD1-014
NUT-WASHER (5MM)
$3.20¢1 600
1
#24
91303-MCS-003
O-RING (95.5X2.4)
$7.92¢3 963
1
#25
91304-MAJ-G41
O-RING
$7.52¢3 762
1
#26
91305-422-000
O-RING (9.8X2.4)
$3.34¢1 669
1
#27
94001-06080-0S
NUT, HEX. (6MM)
$1.60¢800
1
#28
94302-08100
PIN B, DOWEL (8X10)
$2.89¢1 444
1
#29
95701-08065-00
BOLT, FLANGE (8X65)
$2.21¢1 106
1
#30
95701-08085-00
BOLT, FLANGE (8X85)
$3.36¢1 681
1
#31
95701-08090-00
BOLT, FLANGE (8X90)
$4.00¢2 000
1
