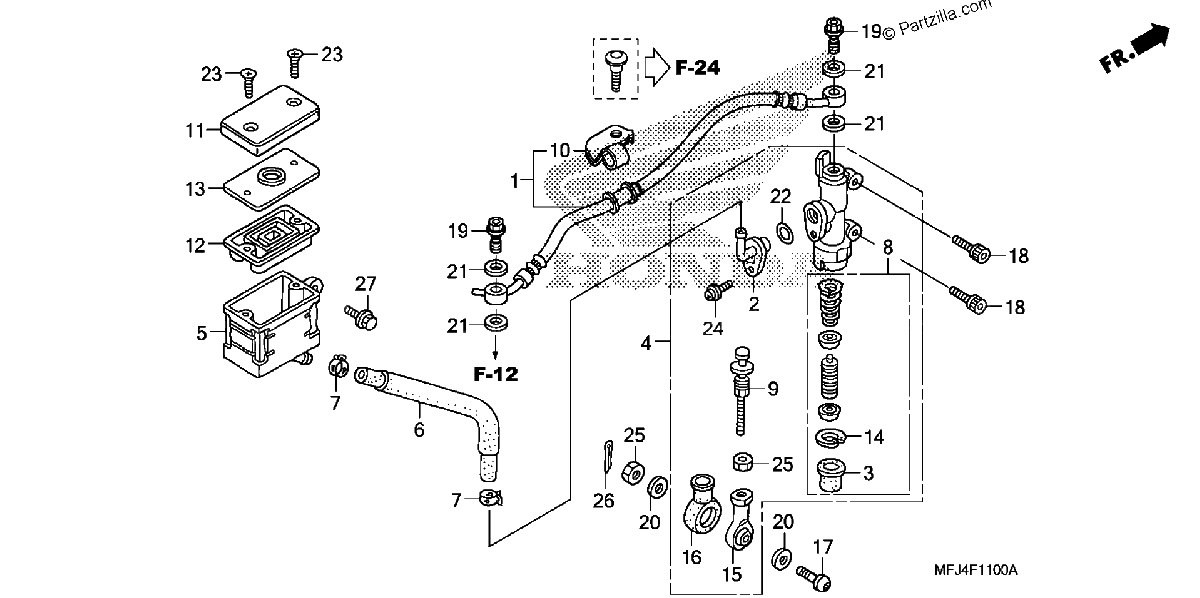

REAR BRAKE MASTER CYLINDER CBR600RR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
HOSE, RR. BRAKE
$66.58¢33 293
#2
CONNECTOR
$7.85¢3 927
#3
BOOT
$10.80¢5 399
#4
MASTER CYLINDER SUB-ASSY., RR. (COO)
$157.61¢78 804
#4
MASTER CYLINDER SUB-ASSY., RR.
$157.61¢78 804
#5
CUP, OIL
$25.32¢12 661
#6
HOSE, RR. MASTER CYLINDER
$17.24¢8 619
#7
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#8
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
#9
ROD, PUSH
$29.05¢14 525
#10
CLAMP, BRAKE HOSE BUSH
$7.54¢3 772
#11
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
#11
CAP, MASTER CYLINDER
$4.63¢2 317
#12
DIAPHRAGM
$11.33¢5 664
#13
PLATE, DIAPHRAGM
$11.59¢5 796
#14
CIRCLIP
$2.30¢1 150
#15
TIE ROD
$75.34¢37 668
#16
COVER, DUST
$9.20¢4 600
#17
BOLT, SOCKET (8X30)
$7.90¢3 950
#18
BOLT, SOCKET (6X20)
$1.92¢960
#19
BOLT, OIL (10X22)
$8.18¢4 088
#20
WASHER, SPECIAL (8MM)
$3.15¢1 576
#21
WASHER, OIL BOLT
$4.46¢2 231
#22
O-RING (14.8X2.4)
$3.04¢1 518
#23
SCREW, FLAT (4X40)
$0.56¢282
#24
SCREW-WASHER (4X12)
$1.59¢793
#24
SCREW-WASHER (4X12)
$1.59¢793
#25
NUT, HEX. (8MM)
$1.47¢736
#26
PIN, SPLIT (2.0X15)
$1.23¢615
#27
BOLT, FLANGE (6X16)
$1.12¢558
