RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

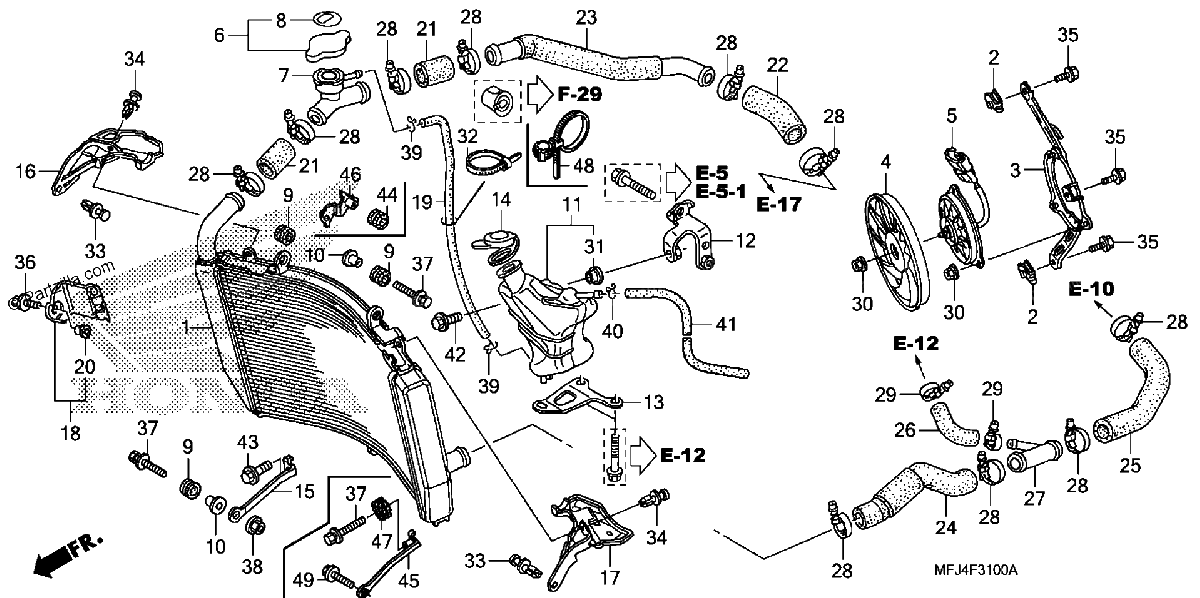

Diagrama de RADIATOR

Repuestos

#1
19010-MFJ-305
RADIATOR (COO)
$772.50¢386 251
1
#1
19010-MFJ-D01
RADIATOR (TOYO)
$772.50¢386 251
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#3
19015-MFJ-305
SHROUD (COO)
$81.41¢40 704
1
#3
19015-MFJ-D01
SHROUD
$81.41¢40 704
1
#4
19020-MFJ-D01
FAN, COOLING
$45.24¢22 621
1
#5
19030-MFJ-D01
MOTOR ASSY., FAN
$362.46¢181 229
1
#6
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#7
19039-MFJ-D01
FILLER, NECK
$36.74¢18 371
1
#8
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#9
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$3.69¢1 846
1
#10
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$5.73¢2 864
1
#11
19101-MFJ-305
TANK, RADIATOR RESERVE (COO)
$43.30¢21 649
1
#11
19101-MFJ-A40
TANK, RADIATOR RESERVE
$43.30¢21 649
1
#12
19102-MFJ-A40
STAY, RESERVE TANK (UPPER)
$17.99¢8 993
1
#13
19103-MFJ-A40
STAY, RESERVE TANK (LOWER)
$6.26¢3 128
1
#14
19104-MB0-700
CAP, RESERVE TANK
$12.99¢6 498
1
#16
19106-MFJ-D00
PLATE, R. RADIATOR HEAT GUARD
$7.08¢3 542
1
#17
19107-MFJ-D01
PLATE, L. RADIATOR HEAT GUARD
$8.28¢4 140
1
#18
19108-MFJ-D00
GUARD, RADIATOR
$8.26¢4 129
1
#19
19109-MFJ-D00
TUBE, FILLER-RESERVE TANK
$14.44¢7 222
1
#20
19121-KE7-000
COLLAR, RADIATOR COVER
$2.83¢1 414
1
#21
19502-MFJ-D00
HOSE, R. RADIATOR (UPPER)
$4.38¢2 191
1
#22
19503-MFJ-D00
HOSE, R. RADIATOR (LOWER)
$22.70¢11 350
1
#23
19504-MFJ-D00
PIPE, WATER
$60.08¢30 038
1
#24
19511-MFJ-A50
HOSE, L. RADIATOR (UPPER)
$37.19¢18 596
1
#25
19512-MFJ-D00
HOSE, L. RADIATOR (LOWER)
$20.82¢10 408
1
#26
19513-MFJ-D00
HOSE, OIL COOLER
$7.19¢3 594
1
#27
19514-MFJ-D00
JOINT, HOSE (THREE-WAY)
$13.31¢6 653
1
#28
19516-GAG-003
CLAMP, HOSE (30-37MM)
$14.86¢7 429
1
#29
19517-ML7-691
CLAMP, HOSE (22-29MM)
$12.41¢6 204
1
#30
90315-MK3-003
NUT, SERRATE (5MM)
$2.75¢1 374
1
#31
90522-170-700
COLLAR, GEARSHIFT LEVER SETTING
$2.30¢1 150
1
#33
90657-SB0-003
CLIP, SPLASH SHIELD
$5.88¢2 938
1
#34
91549-MW0-790ZA
CLIP, PANEL FIXING *NH1* (BLACK)
$4.71¢2 357
1
#35
90120-GHB-601
BOLT-WASHER (6X12)
$2.28¢1 138
1
#36
93404-04012-08
BOLT-WASHER (4X12)
$1.23¢615
1
#37
93404-06025-00
BOLT-WASHER (6X25)
$1.30¢650
1
#39
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#40
95002-50000
CLIP, TUBE (C9)
$1.41¢707
1
#41
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$22.44¢11 218
1
#42
96300-06012-00
BOLT, FLANGE (6X12)
$1.12¢558
1
#44
19051-MFJ-A50
RUBBER, RADIATOR MOUNTING
$3.24¢1 621
1
#45
19105-MFJ-A50
STAY, RADIATOR (LOWER)
$12.54¢6 268
1
#46
57411-MFJ-A50
STAY, FR. HOSE
$11.76¢5 882
1
#47
84703-425-000
RUBBER, TAILLIGHT MOUNTING
$5.27¢2 633
1
#48
91558-SM4-003
CLIP, TUBE (135MM) (BLACK)
$8.18¢4 088
1
#49
96300-06025-00
BOLT, FLANGE (6X25)
$1.74¢868
1
