REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

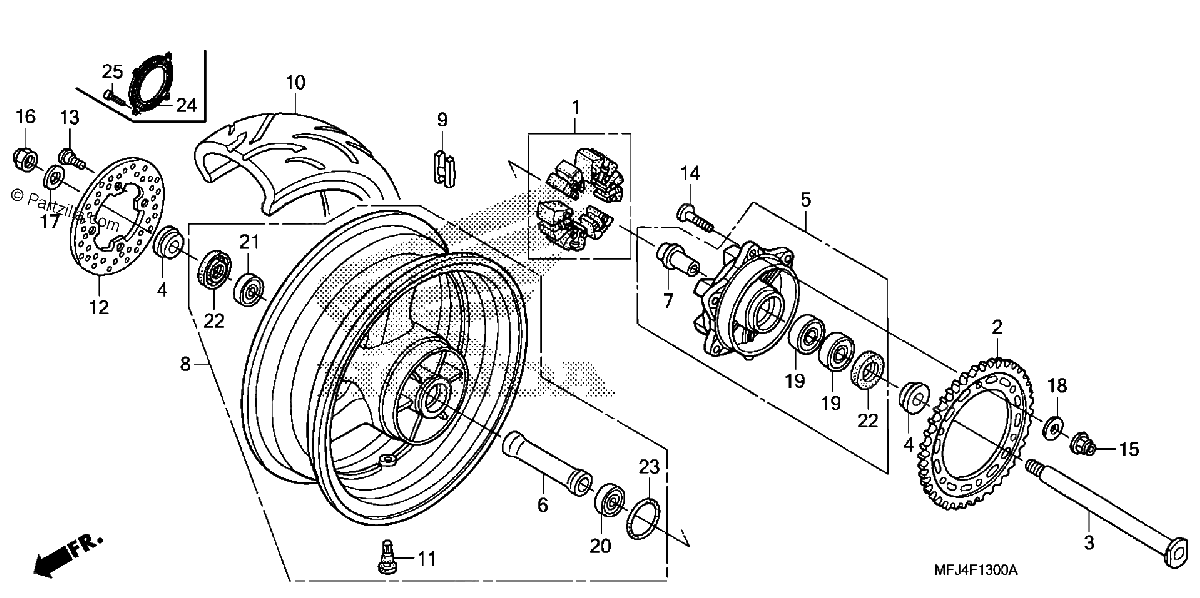

Diagrama de REAR WHEEL

Repuestos

#1
06410-MFJ-D00
DAMPER SET, WHEEL
$67.11¢33 556
1
#2
41201-MFJ-A00
SPROCKET, FINAL DRIVEN (42T)
$108.61¢54 306
1
#3
42301-MEE-D00
AXLE, RR. WHEEL
$81.93¢40 963
1
#4
42311-MCJ-750
COLLAR, RR. WHEEL SIDE
$19.72¢9 862
1
#5
42615-MEL-000
FLANGE SUB-ASSY., RR. DRIVEN
$296.11¢148 056
1
#6
42620-MFJ-D00
COLLAR, RR. AXLE DISTANCE
$52.88¢26 438
1
#7
42625-MEL-000
COLLAR B, RR. WHEEL DISTANCE
$40.14¢20 069
1
#8
42650-MFJ-305ZA
WHEEL SUB-ASSY., RR. (TYPE1) (COO)
$1582.30¢791 150
1
#8
42650-MFJ-D01ZA
WHEEL SUB-ASSY., RR. (TYPE1)
$1582.30¢791 150
1
#9
42706-MER-D00
WEIGHT, BALANCE (30G)
$22.09¢11 044
1
#9
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.91¢5 456
1
#9
42705-MER-D00
WEIGHT, BALANCE (20G)
$22.41¢11 206
1
#10
42711-MFJ-D02
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
No Disponible
1
#10
42711-MFJ-D01
TIRE, RR. (180/55ZR17) (M/C 73W) (BS)
$320.84¢160 419
1
#11
42753-ML7-003
VALVE, RIM (BS)
$14.79¢7 394
1
#11
42753-ML7-004
VALVE, RIM (DUNLOP)
$14.79¢7 394
1
#12
43251-MFJ-A51
DISK, RR. BRAKE
$327.21¢163 606
1
#13
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
1
#14
90121-MCF-D30
BOLT (10X30)
$3.65¢1 825
1
#15
90304-KAE-871
NUT, U (10MM)
$5.25¢2 625
1
#17
90401-MCJ-000
WASHER (23X37X2.5)
$6.13¢3 063
1
#18
90502-MCF-000
WASHER (10MM)
$3.61¢1 806
1
#19
91051-HA7-671
BEARING, RADIAL BALL (28X52X12)
$39.47¢19 737
1
#20
91052-MCF-003
BEARING, RADIAL BALL (6005)
$17.43¢8 713
1
#21
91053-MAZ-003
BEARING, RADIAL BALL (6205X2)
$20.06¢10 031
1
#22
91254-MEE-003
DUST SEAL (35X52X7.5)
$8.39¢4 194
1
#23
91352-MCF-003
O-RING (51X2)
$4.58¢2 288
1
#24
42515-MFJ-A50
RING, RR. PULSER
$69.01¢34 506
1
#25
90131-MFJ-A50
BOLT, TORX (5X7)
$3.91¢1 956
1
