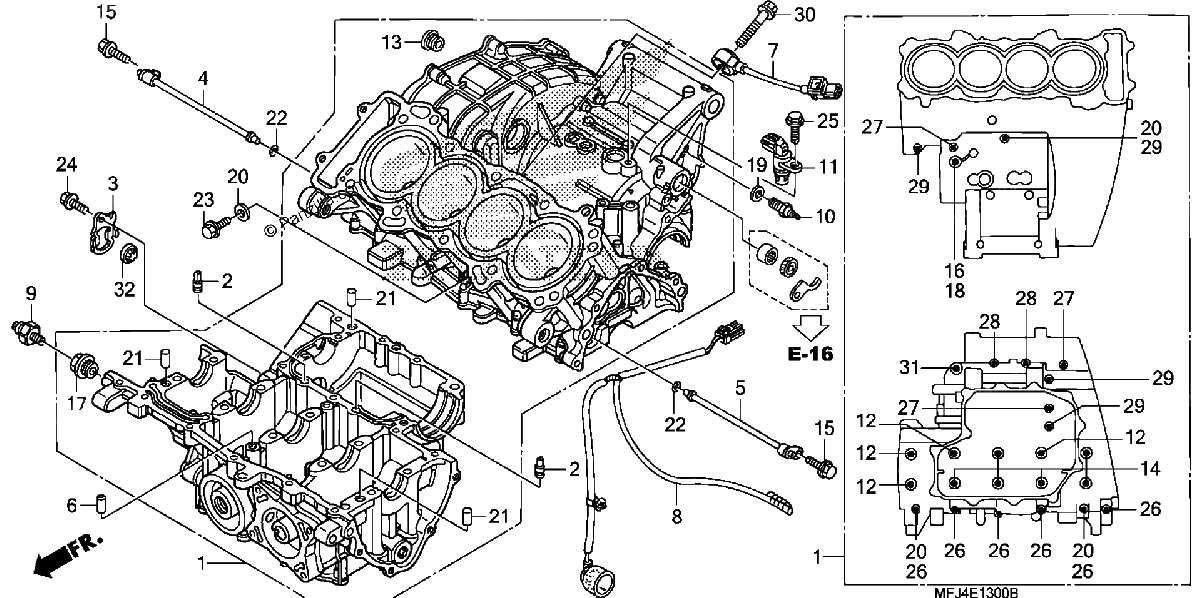

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE SET
$2379.80¢1 189 899
#2
ORIFICE (1.4MM)
$10.09¢5 043
#3
PLATE, OIL LEVEL FINDER
$7.50¢3 749
#4
PIPE, R. OIL JET
$90.11¢45 057
#5
PIPE, L. OIL JET
$90.11¢45 057
#6
ORIFICE (1MM)
$8.90¢4 451
#7
SENSOR, KNOCK
$75.35¢37 674
#8
SUB-WIRE HARNESS, ENGINE
$23.80¢11 902
#9
SWITCH Assembly., OIL PRESSURE (DENSO)
$45.33¢22 667
#10
SWITCH Assembly., NEUTRAL
$22.60¢11 299
#11
SENSOR ASSY., SPEED
$85.40¢42 700
#12
BOLT, UBS (8X98)
$9.76¢4 882
#13
BOLT, SOCKET (10MM)
$2.68¢1 340
#14
BOLT, UBS (8X73)
$4.36¢2 179
#15
BOLT, KNOCK (6MM)
$3.36¢1 679
#16
BOLT, FLANGE (8X107)
$3.63¢1 817
#17
BOLT, SEALING (20MM)
$14.06¢7 032
#18
WASHER, SEALING (8MM)
$2.09¢1 047
#19
WASHER, NEUTRAL
$2.28¢1 138
#20
WASHER, SEALING (6.5MM)
$3.36¢1 679
#21
PIN, DOWEL (10X16)
$4.80¢2 398
#22
O-RING (4.8X1.9)
$3.09¢1 547
#22
O-RING (4.8X1.9) (NOK)
$3.09¢1 547
#23
BOLT, FLANGE (6X12)
$1.92¢960
#24
BOLT, FLANGE (6X14)
$1.13¢564
#25
BOLT, FLANGE (6X18)
$1.92¢960
#26
BOLT, FLANGE (6X35)
$2.22¢1 110
#27
BOLT, FLANGE (6X45)
$2.56¢1 282
#27
BOLT, FLANGE (6X45)
$2.56¢1 282
#28
BOLT, FLANGE (6X50)
$2.45¢1 225
#29
BOLT, FLANGE (6X60)
$0.36¢178
#30
BOLT, FLANGE (8X30)
$1.33¢667
#31
BOLT, FLANGE (10X75)
$2.89¢1 443
#32
FINDER, OIL LEVEL
$11.79¢5 894
