OIL FILTER OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

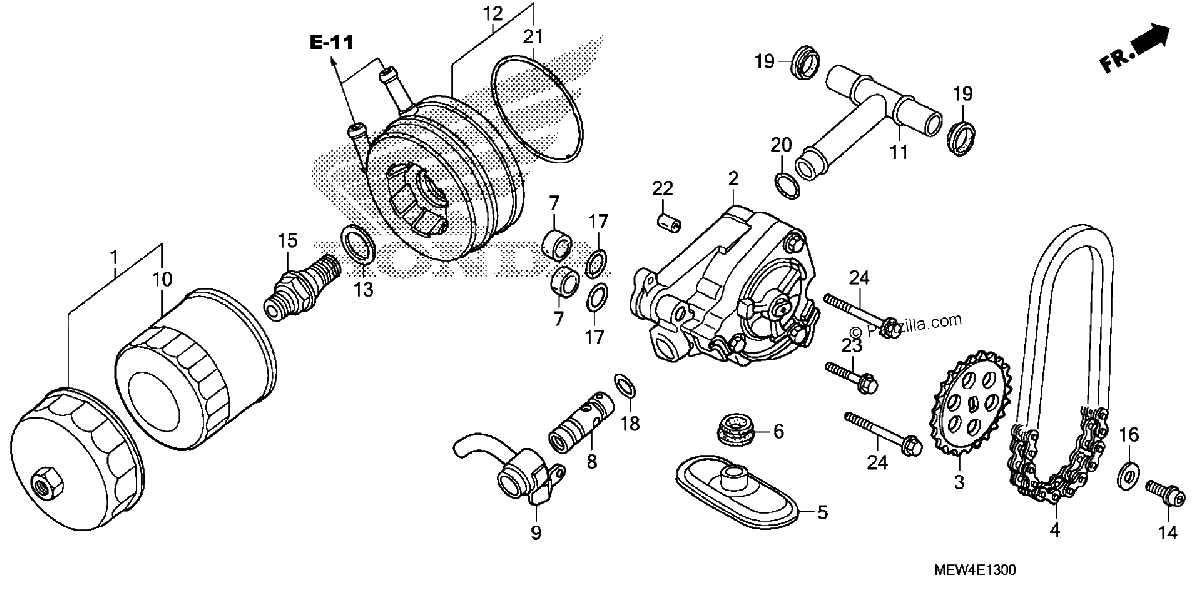

Diagrama de OIL FILTER OIL PUMP

Repuestos

#1
15010-MCE-H51
FILTER SET, OIL
$21.21¢10 603
1
#2
15100-MEW-920
PUMP ASSY., OIL
$157.73¢78 867
1
#3
15134-MEW-920
SPROCKET, OIL PUMP DRIVEN (27T)
$44.91¢22 454
1
#4
15141-MEW-921
CHAIN, OIL PUMP DRIVE (70L)
$9.97¢4 985
1
#5
15150-MEW-920
STRAINER, OIL
$24.15¢12 075
1
#6
15154-425-000
GASKET, OIL STRAINER
$8.91¢4 456
1
#7
15155-300-000
COLLAR, O-RING
$3.86¢1 932
1
#8
15220-MEW-920
VALVE ASSY., RELIEF
$27.75¢13 875
1
#9
15240-MM9-000
PIPE, OIL RELIEF
$29.99¢14 996
1
#10
15410-MFJ-D01
FILTER, OIL (TOYO ROKI)
$16.54¢8 269
1
#11
15510-MY1-000
PIPE, OIL
$40.01¢20 004
1
#12
15700-MEW-921
COOLER ASSY., OIL
$264.24¢132 118
1
#13
23929-PX4-700
WASHER, SPRING (24MM)
$15.42¢7 711
1
#14
90009-MZ8-H00
BOLT, FLANGE SOCKET (6X14)
$1.85¢926
1
#15
90019-MCT-000
BOLT, OIL COOLER
$21.29¢10 643
1
#16
90488-MB0-000
WASHER (6X2.3)
$5.69¢2 846
1
#17
91303-KF0-003
O-RING (14.8X2.4) (ARAI)
$2.09¢1 047
1
#18
91313-MB0-003
O-RING (14.7X2.2) (ARAI)
$4.09¢2 047
1
#18
91313-MG7-004
O-RING (14.8X2.2)
$4.09¢2 047
1
#19
91315-MF5-003
OIL SEAL, PIPE
$4.90¢2 449
1
#20
91319-300-000
O-RING (13X2.5)
$5.65¢2 823
1
#21
91354-MEJ-641
O-RING, OIL COOLER
$4.75¢2 375
1
#22
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#23
95801-06028-08
BOLT, FLANGE (6X28)
$2.15¢1 075
1
#24
95701-06045-00
BOLT, FLANGE (6X45)
$2.56¢1 282
1
#24
95701-06045-07
BOLT, FLANGE (6X45)
$2.56¢1 282
1
