LEFT SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

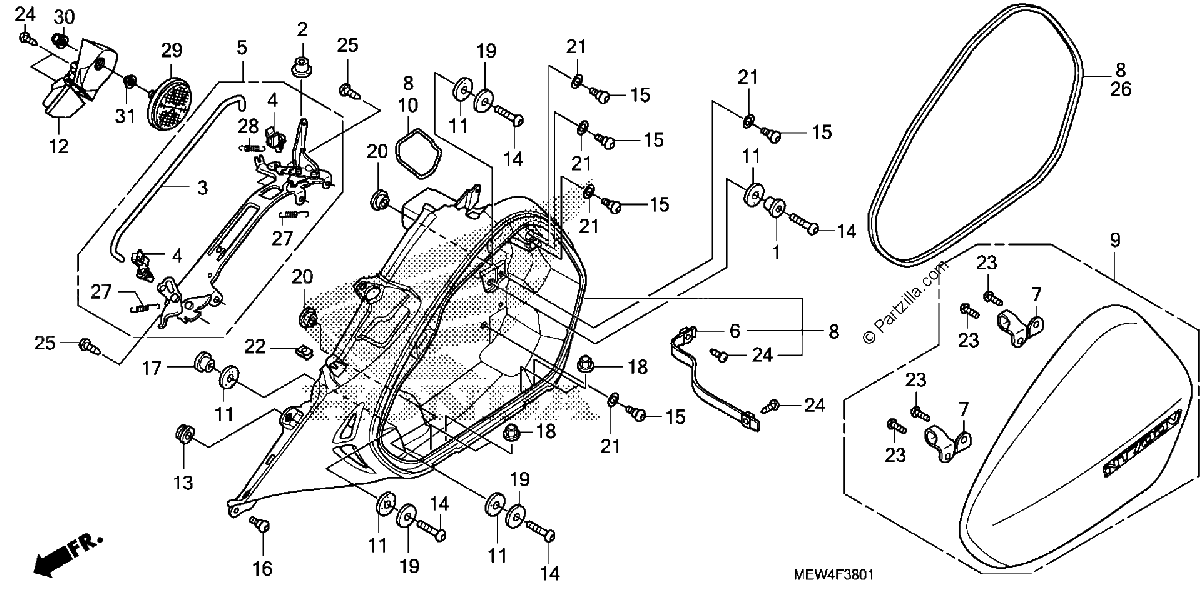

Diagrama de LEFT SADDLEBAG

Repuestos

#1
19052-MB0-000
COLLAR, RADIATOR MOUNTING
$7.69¢3 844
1
#2
19619-ZM7-300
COLLAR, FAN COVER
$2.54¢1 269
1
#3
77260-MEW-920
ROD A, SADDLEBAG CATCH
$10.00¢5 000
1
#4
77268-MEW-920
JOINT, ROD
$0.88¢438
1
#5
77350-MEW-D40
CATCH ASSY., L. SADDLEBAG
$94.26¢47 131
1
#6
81290-MEW-920
BAND, L. SADDLEBAG STOPPER
$5.32¢2 662
1
#7
81316-MEW-D20
STRIKER, SADDLEBAG
$8.05¢4 025
1
#8
81320-MEW-D40
BODY ASSY., L. SADDLEBAG
$448.73¢224 363
1
#9
81332-MEW-L00ZB
SADDLEBAG SET, L. (TYPE2) (WL)
$737.25¢368 625
1
#9
81332-MEW-L00ZA
SADDLEBAG SET, L. (TYPE1) (WL)
$771.79¢385 894
1
#10
81322-MEW-920
SEAL, SADDLEBAG BODY
$4.36¢2 181
1
#11
81356-MN5-000
RUBBER, BAG MOUNT
$4.40¢2 200
1
#12
81370-MEW-L01
LEVER ASSY., L. SADDLEBAG
$15.04¢7 519
1
#13
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#14
90085-MAJ-A20
BOLT, SPECIAL (6X22)
$4.59¢2 294
1
#15
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#16
90114-MEL-000
SCREW, SPECIAL (5X11)
$3.10¢1 550
1
#17
90175-MCT-640
COLLAR, FUEL TANK
$4.90¢2 450
1
#18
90305-SJ4-003
NUT, MOLDING SIDE
$4.34¢2 169
1
#19
90402-KW7-900
WASHER, THRUST (6MM)
$2.30¢1 150
1
#20
90505-MBK-750
COLLAR, FR. FENDER
$3.65¢1 825
1
#21
90507-KCR-000
WASHER, RUBBER
$1.74¢869
1
#22
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#23
93901-25210
SCREW, TAPPING (5X12)
$1.06¢531
1
#24
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#25
93903-25280
SCREW, TAPPING (5X12)
$1.66¢831
1
#26
81234-MEW-D40
SEAL, SADDLEBAG LID
$49.33¢24 663
1
#27
77266-MEW-D40
SPRING, SADDLEBAG CATCH
$2.91¢1 456
1
#28
77272-MEW-D40
SPRING A, SADDLEBAG CATCH
$9.55¢4 775
1
#29
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
1
#30
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#31
90413-369-690
WASHER, SETTING
$4.91¢2 456
1
