R SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

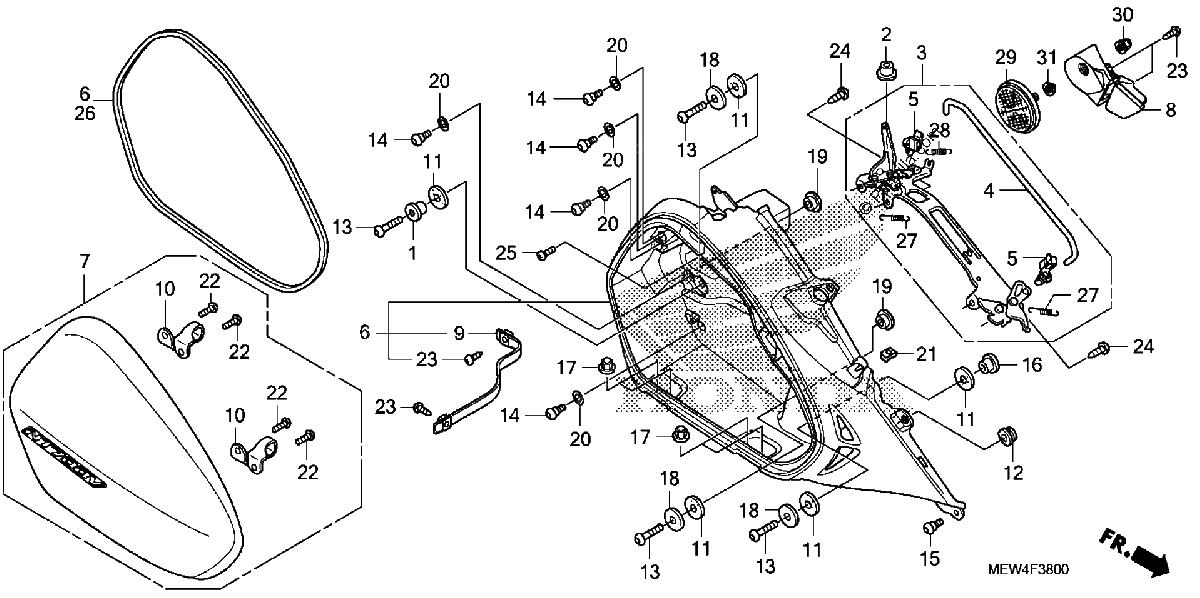

Diagrama de R SADDLEBAG

Repuestos

#1
19052-MB0-000
COLLAR, RADIATOR MOUNTING
$7.07¢3 536
1
#2
19619-ZM7-300
COLLAR, FAN COVER
$2.33¢1 167
1
#3
77250-MEW-D40
CATCH ASSY., R. SADDLEBAG
$86.72¢43 361
1
#4
77260-MEW-920
ROD A, SADDLEBAG CATCH
$9.20¢4 600
1
#5
77268-MEW-920
JOINT, ROD
$0.80¢402
1
#6
81220-MEW-D40
BODY ASSY., R. SADDLEBAG
$385.57¢192 786
1
#7
81232-MEW-L00ZA
SADDLEBAG SET, R. (TYPE1) (WL)
No Disponible
1
#7
81232-MEW-L00ZB
SADDLEBAG SET, R. (TYPE2) (WL)
No Disponible
1
#8
81270-MEW-L01
LEVER ASSY., R. SADDLEBAG
$16.04¢8 021
1
#9
81280-MEW-920
BAND, R. SADDLEBAG STOPPER
$4.54¢2 271
1
#10
81316-MEW-D20
STRIKER, SADDLEBAG
$7.41¢3 703
1
#11
81356-MN5-000
RUBBER, BAG MOUNT
$4.05¢2 024
1
#12
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#13
90085-MAJ-A20
BOLT, SPECIAL (6X22)
$4.22¢2 110
1
#14
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#15
90114-MEL-000
SCREW, SPECIAL (5X11)
$2.85¢1 426
1
#16
90175-MCT-640
COLLAR, FUEL TANK
$4.51¢2 254
1
#17
90305-SJ4-003
NUT, MOLDING SIDE
$3.99¢1 995
1
#18
90402-KW7-900
WASHER, THRUST (6MM)
$2.12¢1 058
1
#19
90505-MBK-750
COLLAR, FR. FENDER
$3.36¢1 679
1
#20
90507-KCR-000
WASHER, RUBBER
$1.60¢799
1
#21
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#22
93901-25210
SCREW, TAPPING (5X12)
$0.98¢489
1
#23
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#24
93903-25280
SCREW, TAPPING (5X12)
$1.53¢765
1
#25
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#26
81234-MEW-D40
SEAL, SADDLEBAG LID
$45.38¢22 690
1
#27
77266-MEW-D40
SPRING, SADDLEBAG CATCH
$2.68¢1 340
1
#28
77272-MEW-D40
SPRING A, SADDLEBAG CATCH
$8.79¢4 393
1
#29
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$14.26¢7 130
1
#30
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
1
#31
90413-369-690
WASHER, SETTING
$4.52¢2 260
1
