FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

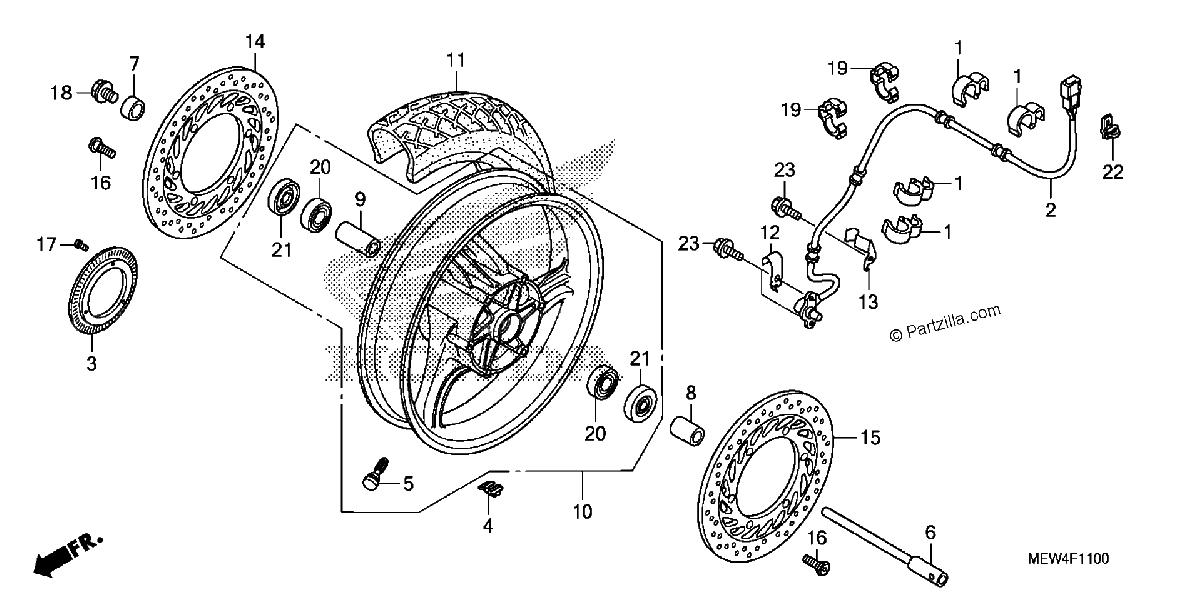

Diagrama de FRONT WHEEL

Repuestos

#4
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.91¢5 456
1
#4
42705-MER-D00
WEIGHT, BALANCE (20G)
$22.41¢11 206
1
#4
42706-MER-D00
WEIGHT, BALANCE (30G)
$22.09¢11 044
1
#5
42753-KBS-901
VALVE, RIM (WONDER)
$14.79¢7 394
1
#6
44301-MM5-000
AXLE, FR. WHEEL
$79.18¢39 588
1
#7
44312-MBL-610
COLLAR, FR. WHEEL SIDE
$13.11¢6 556
1
#8
44312-MEW-920
COLLAR, L. FR. WHEEL SIDE
$16.86¢8 431
1
#9
44620-MBL-610
COLLAR, FR. AXLE DISTANCE
$16.00¢8 000
1
#10
44650-MEW-305
WHEEL SUB-ASSY., FR. (COO)
$500.65¢250 325
1
#11
44711-MEW-923
TIRE, FR. (120/70ZR17) (M/C 58W) (BS)
No Disponible
1
#14
45251-MER-D01
DISK, R. FR. BRAKE
$101.38¢50 688
1
#15
45351-MER-D01
DISK, L. FR. BRAKE
$101.38¢50 688
1
#16
90105-MBB-000
BOLT, BRAKE DISK (8X24)
$7.52¢3 762
1
#16
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
1
#18
90305-ML7-000
BOLT, FR. AXLE
$11.76¢5 881
1
#20
91052-MAE-004
BEARING, RADIAL BALL (6204UU)
$32.17¢16 087
1
#21
91253-MAE-003
DUST SEAL (30X47X7.5)
$18.51¢9 256
1
