REAR FENDER GL1800 06

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

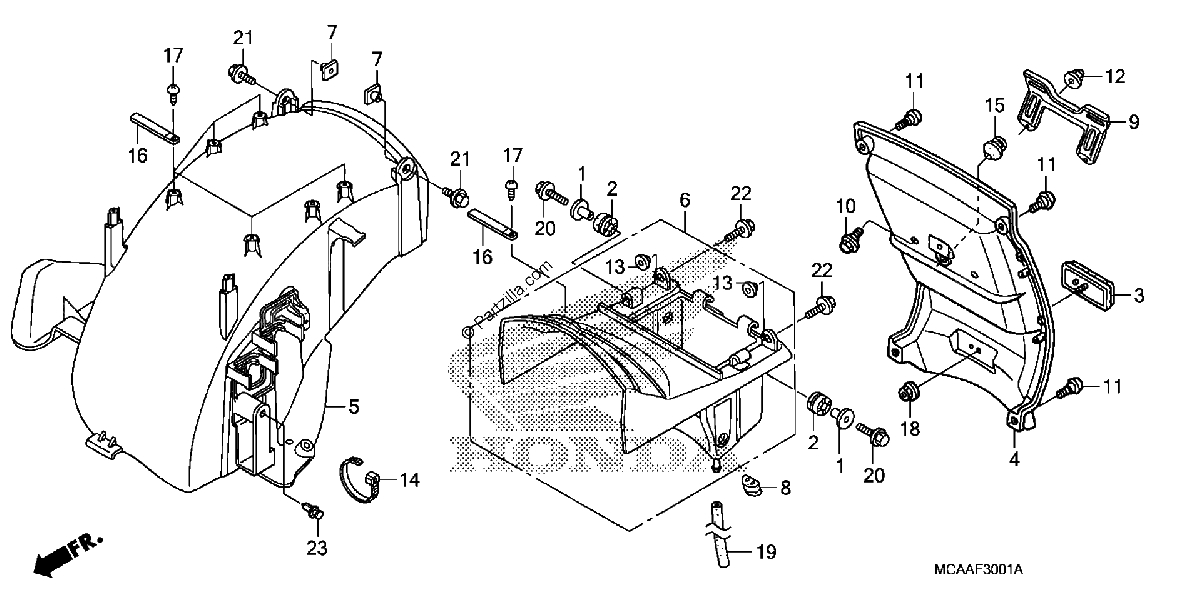

Diagrama de REAR FENDER GL1800 06

Repuestos

#1
17246-GN5-960
COLLAR, RR. FENDER
$4.24¢2 122
1
#001
17246-GN5-960
COLLAR, RR. FENDER
$4.24¢2 122
1
#002
19051-MS8-000
RUBBER, RADIATOR MOUNTING
$5.26¢2 628
1
#2
19051-MS8-000
RUBBER, RADIATOR MOUNTING
$5.26¢2 628
1
#003
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
1
#3
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
1
#4
80100-MCA-000ZD
FENDER A, Rear. Y130P (PEARL HOT ROD YELLOW)
$585.47¢292 733
1
#4
80100-MCA-000ZY
FENDER A, Rear. NHA73M (NEBULOUS BLACK METALLIC)
$544.42¢272 211
1
#004
80100-MCA-000ZD
FENDER A, Rear. Y130P (PEARL HOT ROD YELLOW)
$585.47¢292 733
1
#004
80100-MCA-000ZY
FENDER A, Rear. NHA73M (NEBULOUS BLACK METALLIC)
$544.42¢272 211
1
#4
80100-MCA-000YG
FENDER A, Rear. YR292M (MESQUITE BROWN METALLIC) (NOT AVAILABLE)
No Disponible
1
#004
80100-MCA-000YG
FENDER A, Rear. YR292M (MESQUITE BROWN METALLIC) (NOT AVAILABLE)
No Disponible
1
#4
80100-MCA-000YC
FENDER A, Rear. R325M (CALIENTE RED METALLIC) (NOT AVAILABLE)
No Disponible
1
#004
80100-MCA-000YC
FENDER A, Rear. R325M (CALIENTE RED METALLIC) (NOT AVAILABLE)
No Disponible
1
#5
80101-MCA-A70
FENDER B, RR.
$116.30¢58 150
1
#005
80101-MCA-A70
FENDER B, RR.
$116.30¢58 150
1
#006
80102-MCA-A70
FENDER C, RR.
$167.64¢83 818
1
#6
80102-MCA-A70
FENDER C, RR.
$167.64¢83 818
1
#7
80104-KJ2-000
NUT, RR. FENDER
$4.55¢2 277
1
#007
80104-KJ2-000
NUT, RR. FENDER
$4.55¢2 277
1
#8
80122-MCA-A70
RUBBER, RR. FENDER (C)
$4.77¢2 386
1
#008
80122-MCA-A70
RUBBER, RR. FENDER (C)
$4.77¢2 386
1
#9
84700-MCA-000
BRACKET, NUMBER PLATE
$15.54¢7 768
1
#009
84700-MCA-000
BRACKET, NUMBER PLATE
$15.54¢7 768
1
#10
90116-ME9-000
BOLT, FLANGE (6MM)
$3.74¢1 869
1
#010
90116-ME9-000
BOLT, FLANGE (6MM)
$3.74¢1 869
1
#11
90137-MCA-000
SCREW, SPECIAL (6MM)
$3.36¢1 679
1
#011
90137-MCA-000
SCREW, SPECIAL (6MM)
$3.36¢1 679
1
#12
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#012
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#013
90522-170-700
COLLAR, GEARSHIFT LEVER SETTING
$2.30¢1 150
1
#13
90522-170-700
COLLAR, GEARSHIFT LEVER SETTING
$2.30¢1 150
1
#14
90620-SB2-003
BAND, WIRE HARNESS
$29.19¢14 593
1
#014
90620-SB2-003
BAND, WIRE HARNESS
$29.19¢14 593
1
#15
90899-385-000
PLUG, CONE
$4.58¢2 289
1
#015
90899-385-000
PLUG, CONE
$4.58¢2 289
1
#016
91410-MN1-671
CLIP (2X70)
$3.62¢1 811
1
#16
91410-MN1-671
CLIP (2X70)
$3.62¢1 811
1
#017
93901-25120
SCREW, TAPPING (5X10)
$1.07¢535
1
#17
93901-25120
SCREW, TAPPING (5X10)
$1.07¢535
1
#18
94050-05080
NUT, FLANGE (5MM)
$0.41¢207
1
#018
94050-05080
NUT, FLANGE (5MM)
$0.41¢207
1
#019
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$24.14¢12 069
1
#19
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$24.14¢12 069
1
#20
95801-06025-00
BOLT, FLANGE (6X25)
$1.28¢638
1
#020
95801-06025-00
BOLT, FLANGE (6X25)
$1.28¢638
1
#21
96001-06016-07
BOLT, FLANGE (6X16)
$1.24¢621
1
#021
96001-06016-07
BOLT, FLANGE (6X16)
$1.24¢621
1
#022
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
#22
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
#023
90653-HC4-900
CLIP, SPLASH GUARD
$0.70¢351
1
#23
90653-HC4-900
CLIP, SPLASH GUARD
$0.70¢351
1
