FINAL SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

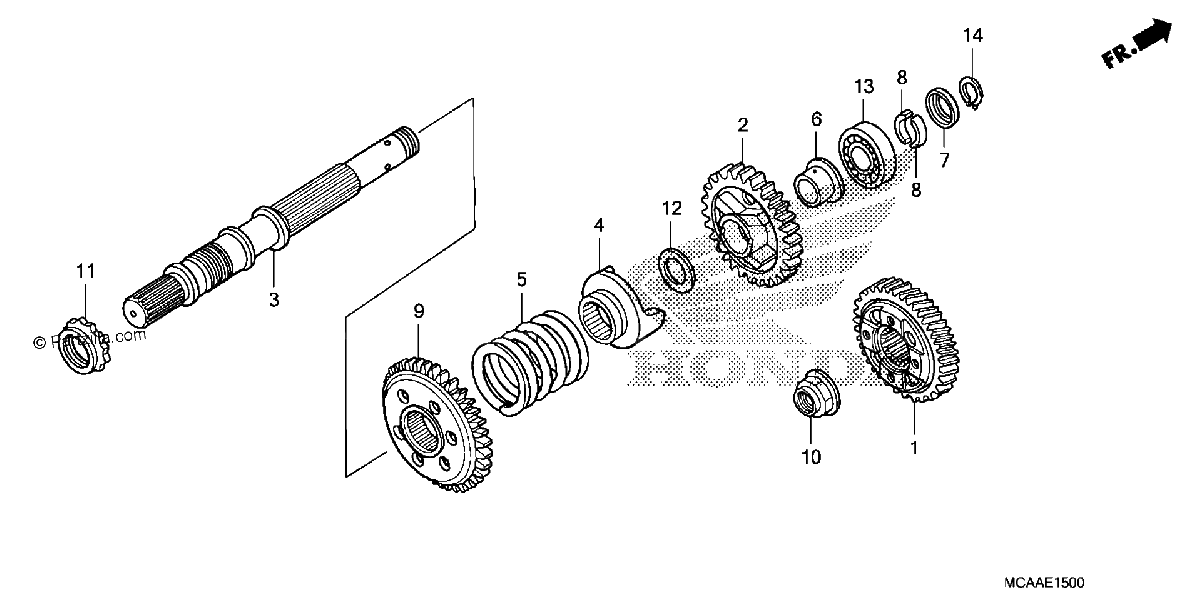

Diagrama de FINAL SHAFT

Repuestos

#1
23500-MCA-A20
GEAR, FINAL DRIVE (35T)
$283.26¢141 631
1
#001
23500-MCA-A20
GEAR, FINAL DRIVE (35T)
$283.26¢141 631
1
#002
23521-MCA-000
GEAR, FINAL DRIVEN (36T)
$166.22¢83 113
1
#2
23521-MCA-000
GEAR, FINAL DRIVEN (36T)
$166.22¢83 113
1
#3
23611-MEC-000
SHAFT, FINAL GEAR
$168.81¢84 406
1
#003
23611-MEC-000
SHAFT, FINAL GEAR
$168.81¢84 406
1
#004
23721-MCA-780
LIFTER, FINAL DAMPER
$50.13¢25 063
1
#4
23721-MCA-780
LIFTER, FINAL DAMPER
$50.13¢25 063
1
#005
23732-MCA-000
SPRING, FINAL DAMPER
$56.35¢28 175
1
#5
23732-MCA-000
SPRING, FINAL DAMPER
$56.35¢28 175
1
#6
23733-MN5-000
COLLAR (22X26X27.6)
$12.38¢6 188
1
#006
23733-MN5-000
COLLAR (22X26X27.6)
$12.38¢6 188
1
#007
23741-MN5-000
RETAINER, FINAL SHAFT
$6.47¢3 238
1
#7
23741-MN5-000
RETAINER, FINAL SHAFT
$6.47¢3 238
1
#008
23742-MN5-000
WASHER, SPRING STOPPER
$15.29¢7 644
1
#8
23742-MN5-000
WASHER, SPRING STOPPER
$15.29¢7 644
1
#009
28178-MCA-000
GEAR, REVERSE DRIVEN (45T)
$151.05¢75 525
1
#9
28178-MCA-000
GEAR, REVERSE DRIVEN (45T)
$151.05¢75 525
1
#010
90205-MCA-780
NUT, SPECIAL (22MM)
$14.88¢7 438
1
#10
90205-MCA-780
NUT, SPECIAL (22MM)
$14.88¢7 438
1
#11
90241-MB0-000
NUT, LOCK (30MM)
$24.49¢12 244
1
#011
90241-MB0-000
NUT, LOCK (30MM)
$24.49¢12 244
1
#012
90498-MN5-000
WASHER (22.2X35X2.6)
$10.94¢5 469
1
#12
90498-MN5-000
WASHER (22.2X35X2.6)
$10.94¢5 469
1
#13
91003-MCA-003
BEARING, RADIAL BALL (22X52X15)
$26.31¢13 156
1
#013
91003-MCA-003
BEARING, RADIAL BALL (22X52X15)
$26.31¢13 156
1
#14
94510-22000
CIRCLIP (OUTER) (22MM)
$0.96¢481
1
#014
94510-22000
CIRCLIP (OUTER) (22MM)
$0.96¢481
1
