FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

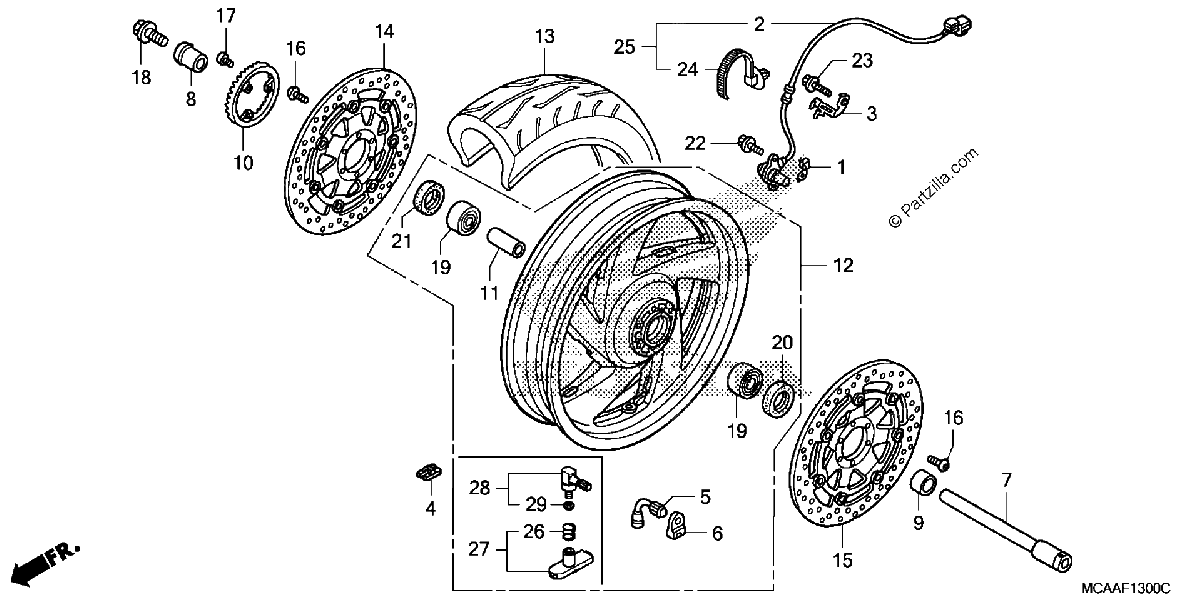

Diagrama de FRONT WHEEL

Repuestos

#004
42704-MCF-D60
WEIGHT, BALANCE (10G)
$13.60¢6 802
1
#4
42704-MCF-D60
WEIGHT, BALANCE (10G)
$13.60¢6 802
1
#004
42705-MCF-D60
WEIGHT, BALANCE (20G)
$18.22¢9 108
1
#4
42705-MCF-D60
WEIGHT, BALANCE (20G)
$18.22¢9 108
1
#4
42706-MCF-D60
WEIGHT, BALANCE (30G)
$15.47¢7 734
1
#004
42706-MCF-D60
WEIGHT, BALANCE (30G)
$15.47¢7 734
1
#7
44301-MCA-000
AXLE, Front WHEEL
$80.39¢40 193
1
#007
44301-MCA-000
AXLE, Front WHEEL
$80.39¢40 193
1
#8
44311-MCA-000
COLLAR, R. FR. WHEEL SIDE
$17.96¢8 981
1
#008
44311-MCA-000
COLLAR, R. FR. WHEEL SIDE
$17.96¢8 981
1
#009
44312-MCA-000
COLLAR, L. FR. WHEEL SIDE
$11.85¢5 923
1
#9
44312-MCA-000
COLLAR, L. FR. WHEEL SIDE
$11.85¢5 923
1
#011
44620-MCA-000
COLLAR, FR. AXLE DISTANCE
$11.18¢5 589
1
#11
44620-MCA-000
COLLAR, FR. AXLE DISTANCE
$11.18¢5 589
1
#12
44650-MCA-305
WHEEL SUB-ASSY., FR. (COO)
No Disponible
1
#12
44650-MCA-R32
WHEEL SUB-Assembly., Front.
No Disponible
1
#012
44650-MCA-R32
WHEEL SUB-Assembly., Front.
No Disponible
1
#13
44711-MCA-A02
TIRE, Front. (130/70R18) (M/C 63H) (DUNLOP)
No Disponible
1
#013
44711-MCA-A02
TIRE, Front. (130/70R18) (M/C 63H) (DUNLOP)
No Disponible
1
#014
45120-MCA-003
DISK, Right Front BRAKE
$542.77¢271 383
1
#14
45120-MCA-003
DISK, Right Front BRAKE
$542.77¢271 383
1
#15
45220-MCA-003
DISK, L Front BRAKE
$542.77¢271 383
1
#015
45220-MCA-003
DISK, L Front BRAKE
$542.77¢271 383
1
#016
90106-MBB-000
BOLT, DISK (6X17)
$4.06¢2 030
1
#16
90106-MBB-000
BOLT, DISK (6X17)
$4.06¢2 030
1
#18
90305-ML7-000
BOLT, FR. AXLE
$10.82¢5 411
1
#018
90305-ML7-000
BOLT, FR. AXLE
$10.82¢5 411
1
#19
91055-MCA-A61
BEARING, RADIAL BALL (6004) (X2) (LU)
$23.61¢11 805
1
#019
91055-MCA-A61
BEARING, RADIAL BALL (6004) (X2) (LU)
$23.61¢11 805
1
#020
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#020
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#20
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#20
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#021
91257-MAY-003
DUST SEAL (28X42X8) (NOK)
$9.87¢4 934
1
#21
91257-MAY-003
DUST SEAL (28X42X8) (NOK)
$9.87¢4 934
1
#026
39401-MCA-R31
SPRING, TPMS
No Disponible
1
#26
39401-MCA-R31
SPRING, TPMS
No Disponible
1
#027
39411-MCA-R32
SENSOR, TPMS
No Disponible
1
#27
39411-MCA-R32
SENSOR, TPMS
No Disponible
1
#028
42755-MCA-R31
VALVE ASSY., RIM
No Disponible
1
#28
42755-MCA-R31
VALVE ASSY., RIM
No Disponible
1
#029
42758-MCA-R31
GROMMET, VALVE
No Disponible
1
#29
42758-MCA-R31
GROMMET, VALVE
No Disponible
1
