HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

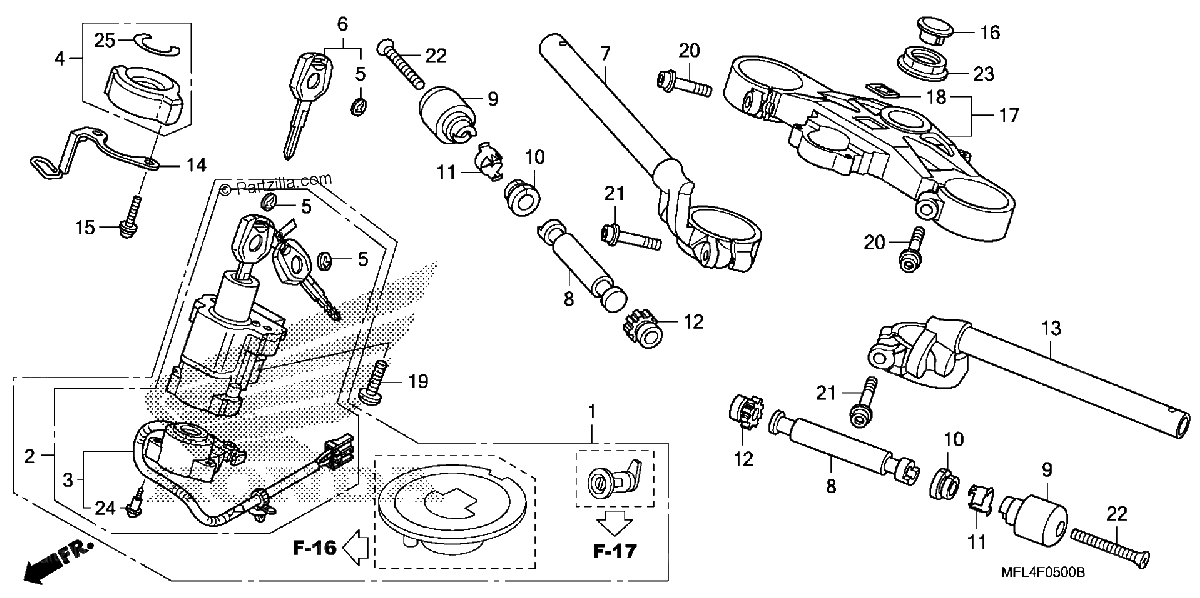

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
35010-MFL-670
LOCK SET
$583.85¢291 927
1
#2
35100-MFL-671
SWITCH ASSY., COMBINATION LOCK
$205.85¢102 925
1
#3
35101-MFL-641
BASE, CONTACT
$94.39¢47 196
1
#4
35106-MAT-A00
COVER, COMBINATION SWITCH
$11.24¢5 618
1
#5
35113-MFL-641
EMBLEM, KEY
$4.36¢2 179
1
#6
35121-MFL-670
KEY, BLANK
$23.97¢11 983
1
#7
53100-MFL-000
HANDLEBAR, Right.
$202.66¢101 332
1
#7
53100-MFL-305
HANDLEBAR, R. (COO)
$202.66¢101 332
1
#8
53105-KV3-000
WEIGHT B, HANDLEBAR
$18.61¢9 304
1
#9
53105-MEE-940
WEIGHT, HANDLEBAR
$19.18¢9 591
1
#10
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.21¢2 105
1
#11
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$5.73¢2 864
1
#12
53109-MM5-000
RUBBER B, HANDLE WEIGHT
$4.16¢2 081
1
#13
53150-MFL-000
HANDLEBAR, Left
$202.66¢101 332
1
#13
53150-MFL-305
HANDLEBAR, L. (COO)
$202.66¢101 332
1
#14
53191-MFL-000
STAY, CLUTCH CABLE
$11.95¢5 974
1
#15
53192-MFL-000
SCREW-WASHER (5X25)
$2.18¢1 092
1
#16
53232-MFL-010
CAP, STEERING NUT
$2.81¢1 403
1
#17
53300-MFL-000
BRIDGE, FORK TOP
$269.33¢134 665
1
#18
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#19
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.36¢1 679
1
#20
90124-MFL-000
BOLT, FLANGE SOCKET (8X40)
$4.24¢2 122
1
#21
90140-MCJ-750
BOLT, FLANGE SOCKET (8X40)
$3.61¢1 805
1
#22
90191-KT7-750
SCREW, OVAL (6X60)
$5.29¢2 645
1
#23
90304-MFL-000
NUT, STEERING STEM
$15.40¢7 699
1
#24
91059-KY2-711
SCREW, TAPPING (3X16)
$3.36¢1 679
1
#25
30433-MBW-602
SEAL, IGNITION SWITCH
$3.36¢1 679
1
