FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

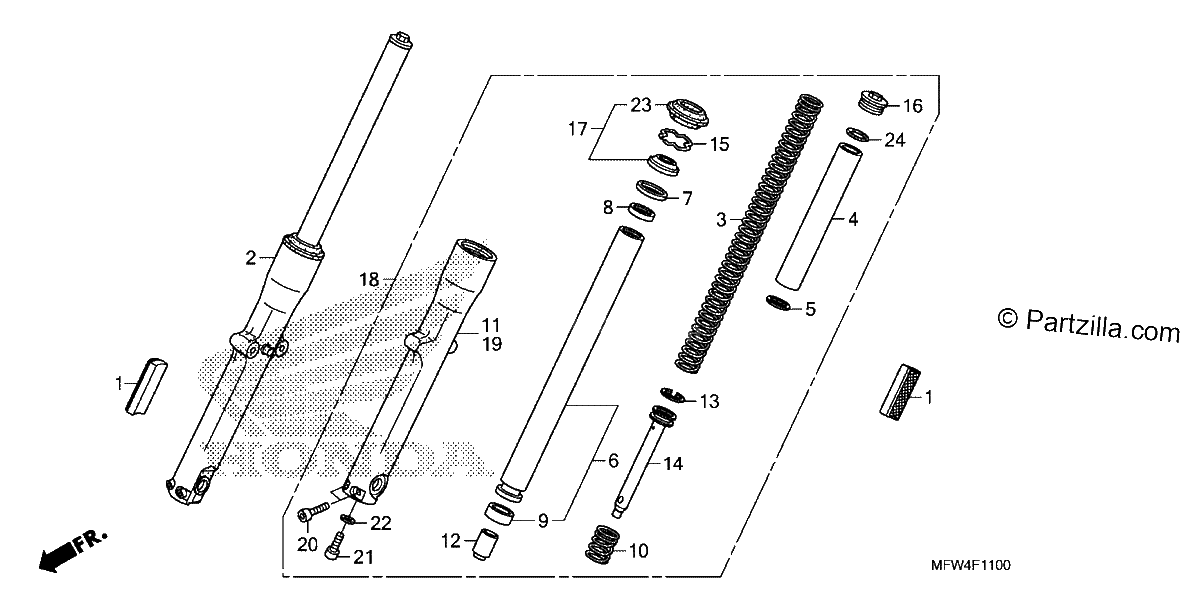

Diagrama de FRONT FORK

Repuestos

#001
33740-MEA-671
REFLECTOR, FR. REFLEX
$35.05¢17 525
1
#002
51400-MFW-305
FORK ASSY., R. FR. (COO)
No Disponible
1
#003
51401-MFW-A01
SPRING, Front FORK
No Disponible
1
#004
51402-KV3-701
COLLAR, SPRING (SHOWA)
$27.86¢13 931
1
#005
51404-MB4-003
PLATE, SPRING JOINT
$5.99¢2 994
1
#006
51410-MFW-A01
PIPE, Front FORK
$510.90¢255 450
1
#007
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#008
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#009
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#010
51416-MM8-881
SPRING, FR. REBOUND (SHOWA)
$7.14¢3 569
1
#011
51420-MFW-A01
CASE, R. (LOWER)
No Disponible
1
#012
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$28.82¢14 413
1
#013
51437-MB4-003
RING, PISTON
$11.20¢5 600
1
#014
51440-MFY-A01
PIPE, SEAT
$56.06¢28 031
1
#015
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#016
51454-MM9-671
BOLT, FR. FORK
$44.54¢22 269
1
#017
51490-MER-R61
SEAL SET, Front FORK
$26.44¢13 219
1
#017
51490-MKA-D81
SEAL SET, FR. FORK
$26.44¢13 219
1
#018
51500-MFW-305
FORK Assembly., L Front. (COO)
$1048.66¢524 331
1
#019
51520-MFW-A01
CASE, Left (LOWER)
$516.09¢258 044
1
#020
90109-MCR-D00
BOLT, SOCKET (8X35)
$3.65¢1 825
1
#021
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#022
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#023
91251-MKA-D81
DUST SEAL (SHOWA)
$10.00¢5 000
1
#023
91254-MEE-D01
DUST SEAL (SHOWA)
$10.00¢5 000
1
#024
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
