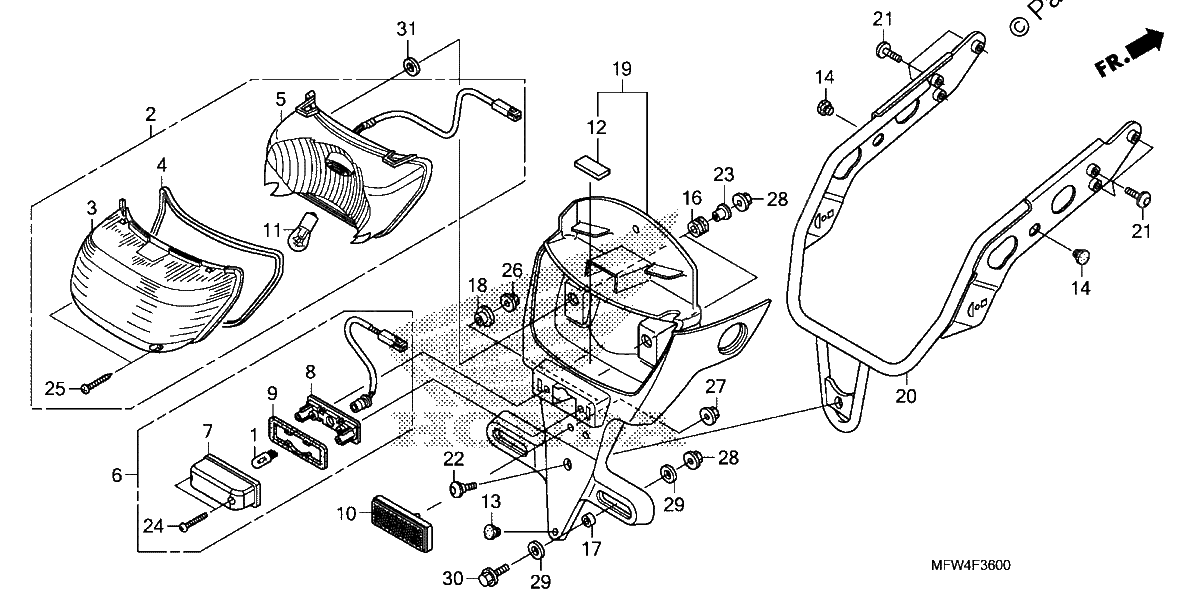

TAILLIGHT LICENSE LIGHT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
BULB (12V 5W) (STANLEY)
$4.61¢2 306
#002
TAILLIGHT ASSY. (12V 21/5W) (IMASEN)
$133.71¢66 856
#003
LENS, TAILLIGHT
$29.47¢14 737
#004
GASKET, TAILLIGHT
$5.64¢2 819
#005
BASE, TAILLIGHT
$52.31¢26 156
#006
LIGHT ASSY., LICENSE (12V 5W)
$117.07¢58 537
#007
COVER, LICENSE
$24.61¢12 306
#008
BASE, LICENSE
$26.45¢13 225
#009
GASKET, LENS
$12.19¢6 094
#010
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
#011
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)
$10.96¢5 481
#012
RUBBER, BATTERY
$1.74¢869
#013
RUBBER, LINK STOPPER
$5.47¢2 738
#014
RUBBER, SEAT SIDE
$5.99¢2 994
#016
RUBBER, RR. FENDER CUSHION
$2.63¢1 313
#017
COLLAR, TAILLIGHT
$3.65¢1 825
#018
COLLAR, RR. FENDER
$5.51¢2 756
#019
FENDER ASSY. A, RR.
$36.73¢18 363
#020
STAY, Rear FENDER
$355.25¢177 625
#021
SCREW, PAN (6X14)
$3.75¢1 875
#022
SCREW, PAN (6X13)
$3.36¢1 681
#023
COLLAR, RR. FENDER
$6.96¢3 481
#024
SCREW, TAPPING (4X16)
$1.06¢531
#025
SCREW, TAPPING (4X30)
$2.85¢1 425
#026
NUT, FLANGE (5MM)
$1.68¢838
#027
NUT, FLANGE (5MM)
$1.66¢831
#028
NUT, FLANGE (6MM)
$0.80¢400
#029
WASHER, PLAIN (6MM)
$1.27¢638
#030
BOLT, FLANGE (6X16)
$2.09¢1 044
#031
WASHER (6MM)
$2.48¢1 238
