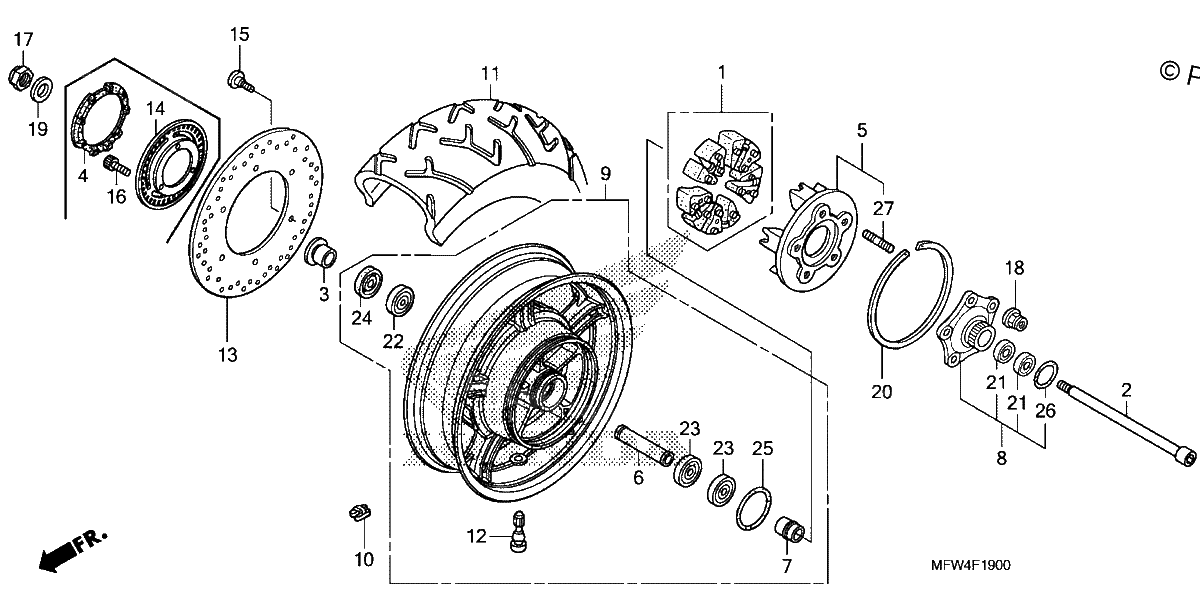

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$62.81¢31 406
#002
AXLE, RR. WHEEL
$79.37¢39 686
#003
COLLAR, RR. WHEEL
$55.84¢27 922
#004
COVER, PULSER RING
$23.85¢11 925
#005
FLANGE B, FINAL DRIVEN
$297.32¢148 661
#006
COLLAR, RR. AXLE DISTANCE
$40.81¢20 407
#007
COLLAR A, RR. AXLE DISTANCE
$32.84¢16 422
#008
FLANGE SET, FINAL DRIVEN
$311.93¢155 963
#009
WHEEL SUB-ASSY., RR. (COO)
$1029.01¢514 504
#009
WHEEL SUB-Assembly., Rear.
$1029.01¢514 504
#010
WEIGHT, BALANCE (10G)
$10.04¢5 020
#010
WEIGHT, BALANCE (20G)
$20.62¢10 310
#010
WEIGHT, BALANCE (30G)
$20.32¢10 160
#011
TIRE, RR. (170/80-15M/C 77H) (BS)
No Disponible
#011
TIRE, RR. (170/80-15M/C 77H) (DUNLOP)
$267.77¢133 883
#011
TIRE, RR. (170/80-15M/C 77H) (DUNLOP)
$267.77¢133 883
#011
TIRE, Rear.
$267.77¢133 883
#012
VALVE, RIM (DUNLOP)
$13.60¢6 802
#012
VALVE, RIM (BS)
$13.60¢6 802
#013
DISK, RR. BRAKE
$504.93¢252 465
#014
RING, FR. PULSER
$157.26¢78 631
#015
BOLT, BRAKE DISK (8X24)
$4.47¢2 237
#016
BOLT, TORX (5X10)
$3.36¢1 679
#017
NUT, U (22MM)
$8.58¢4 289
#017
NUT, U (22MM)
$8.58¢4 289
#018
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
#019
WASHER (22X38X2.5)
$6.58¢3 289
#020
CIRCLIP (INNER) (188)
$20.99¢10 494
#021
BEARING, RADIAL BALL (6905RS)
$18.54¢9 269
#022
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
#023
BEARING, RADIAL BALL (60/28)
$19.99¢9 994
#024
DUST SEAL (35X52X7.5)
$7.72¢3 858
#025
O-RING (61X2)
$5.76¢2 881
#026
O-RING (50.5X3.5) (ARAI)
$4.20¢2 099
#026
O-RING (50.5X3.5) (NOK)
$4.20¢2 099
#027
BOLT 2, STUD (12X32)
$3.36¢1 679
