CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

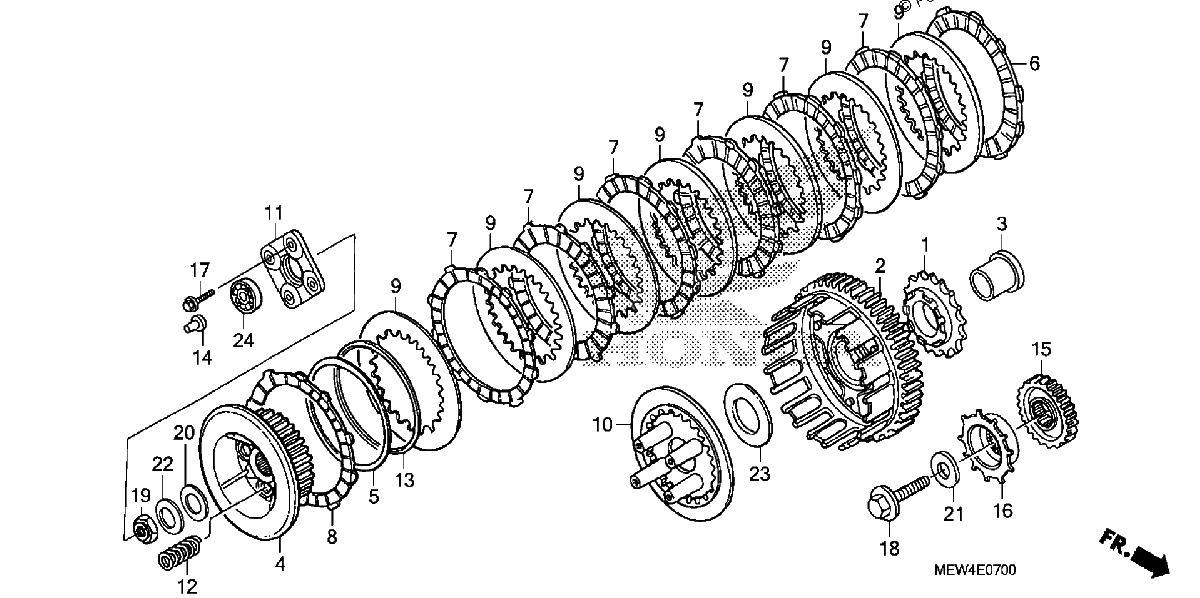

Diagrama de CLUTCH

Repuestos

#1
15131-MEW-921
SPROCKET, OIL PUMP DRIVE (31T)
$76.63¢38 313
1
#2
22100-MFF-D00
CLUTCH OUTER
$369.91¢184 956
1
#3
22116-MF5-000
COLLAR, PRIMARY DRIVEN
$64.01¢32 006
1
#4
22121-MEW-920
CENTER, CLUTCH
$92.95¢46 475
1
#5
22125-435-000
SEAT, JUDDER SPRING
$10.70¢5 350
1
#6
22201-MAV-000
DISK, CLUTCH FRICTION
$15.13¢7 563
1
#7
22201-MFF-D00
DISK, CLUTCH FRICTION
$17.27¢8 638
1
#8
22202-MAE-000
DISK B, CLUTCH FRICTION
$18.59¢9 294
1
#9
22321-MN8-000
PLATE, CLUTCH
$10.96¢5 481
1
#10
22351-MEW-920
PLATE, CLUTCH PRESSURE
$47.73¢23 863
1
#10
22351-MEW-921
PLATE, CLUTCH PRESSURE
$47.73¢23 863
1
#11
22361-MR1-000
PLATE, CLUTCH LIFTER
$24.59¢12 294
1
#12
22401-MM9-000
SPRING, CLUTCH
$4.63¢2 313
1
#13
22402-435-000
SPRING, JUDDER
$39.91¢19 956
1
#14
22847-MZ8-H00
ROD, CLUTCH LIFTER
$7.52¢3 762
1
#15
23103-MEG-010
GEAR, PRIMARY DRIVE (38T)
$109.98¢54 988
1
#16
30211-MEW-920
ROTOR, PULSE
$20.58¢10 288
1
#17
90007-MR1-000
BOLT, SPECIAL FLANGE (6X30)
$3.65¢1 825
1
#18
90013-415-000
BOLT, UBS (12X28)
$14.80¢7 400
1
#19
90236-HA0-000
NUT, LOCK (18MM)
$12.21¢6 106
1
#20
90401-MZ8-B40
WASHER (18MM)
$3.26¢1 631
1
#21
90403-MEW-920
WASHER (12.5X34X5)
$6.03¢3 013
1
#22
90432-428-000
WASHER, LOCK
$9.19¢4 594
1
#23
90452-471-000
WASHER, THRUST (22MM)
$5.79¢2 894
1
#24
96100-60010-00
BEARING, RADIAL BALL (6001)
$25.94¢12 969
1
