REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

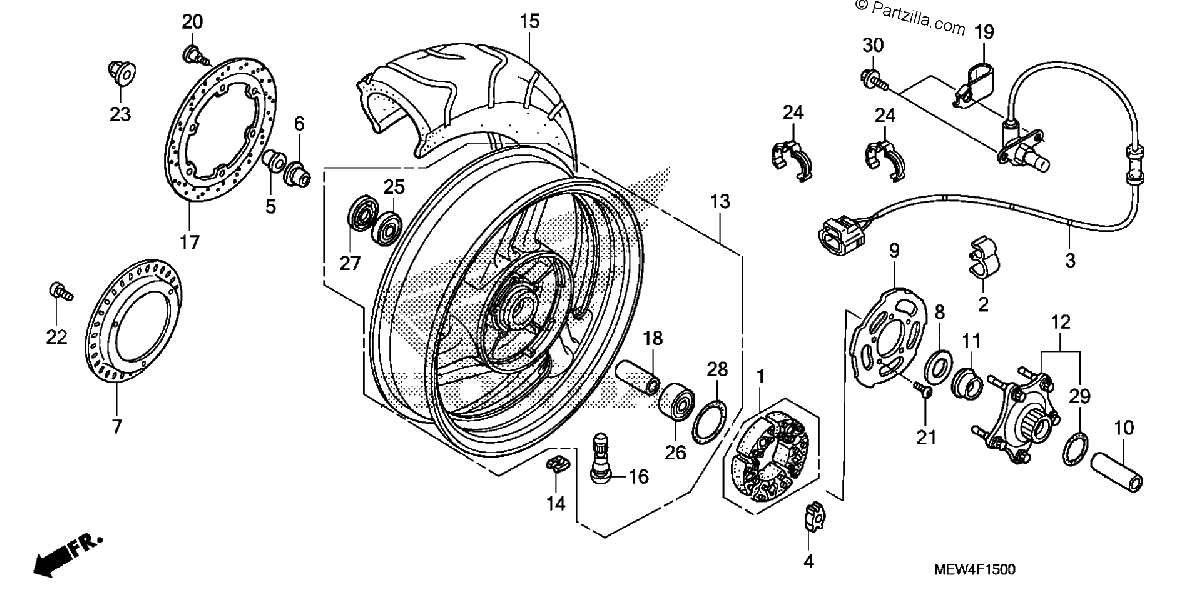

Diagrama de REAR WHEEL

Repuestos

#1
06410-MAH-A60
DAMPER SET, WHEEL
$58.80¢29 400
1
#1
06410-MZ0-A00
DAMPER SET, WHEEL
$58.80¢29 400
1
#4
41242-MR5-000
PIECE, DAMPER WHEEL
$20.31¢10 156
1
#5
42311-MBL-610
COLLAR, RR. WHEEL SIDE
$11.51¢5 756
1
#6
42313-MBL-610
COLLAR, RR. WHEEL SIDE
$11.99¢5 994
1
#8
42616-MT3-000
WASHER, THRUST
$9.68¢4 838
1
#9
42617-MT8-000
HOLDER, DAMPER
$55.32¢27 662
1
#10
42625-MBL-D00
COLLAR B, RR. DISTANCE
$12.21¢6 106
1
#11
42626-MBL-610
COLLAR A, RR. DISTANCE
$24.55¢12 275
1
#12
42630-MAH-305
FLANGE SET, FINAL DRIVEN
$247.36¢123 681
1
#13
42650-MEW-305
WHEEL SUB-ASSY., RR. (COO)
$583.59¢291 794
1
#14
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.91¢5 456
1
#14
42705-MER-D00
WEIGHT, BALANCE (20G)
$22.41¢11 206
1
#14
42706-MER-D00
WEIGHT, BALANCE (30G)
$22.09¢11 044
1
#15
42711-MEW-923
TIRE, RR. (150/70ZR17 M/C 69W) (BS)
No Disponible
1
#16
42753-KBS-901
VALVE, RIM (WONDER)
$14.79¢7 394
1
#17
43251-MEW-921
DISK, RR. BRAKE
$161.44¢80 719
1
#18
44620-MW6-610
COLLAR, FR. AXLE DISTANCE
$21.56¢10 781
1
#20
90105-MBB-000
BOLT, BRAKE DISK (8X24)
$7.52¢3 762
1
#20
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
1
#21
90106-MBB-000
BOLT, DISK (6X17)
$4.41¢2 206
1
#23
90306-MCH-003
NUT, FLANGE (18MM)
$15.26¢7 631
1
#25
91052-MAE-004
BEARING, RADIAL BALL (6204UU)
$32.17¢16 087
1
#26
91053-MN5-003
BEARING, RADIAL BALL (20X47X20.6) (NTN)
$87.01¢43 506
1
#27
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
1
#27
91253-443-762
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
1
#28
91302-MA6-003
O-RING (61X2)
$6.26¢3 131
1
#29
91358-MB0-000
O-RING (46.5X3.5)
$4.56¢2 281
1
