SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

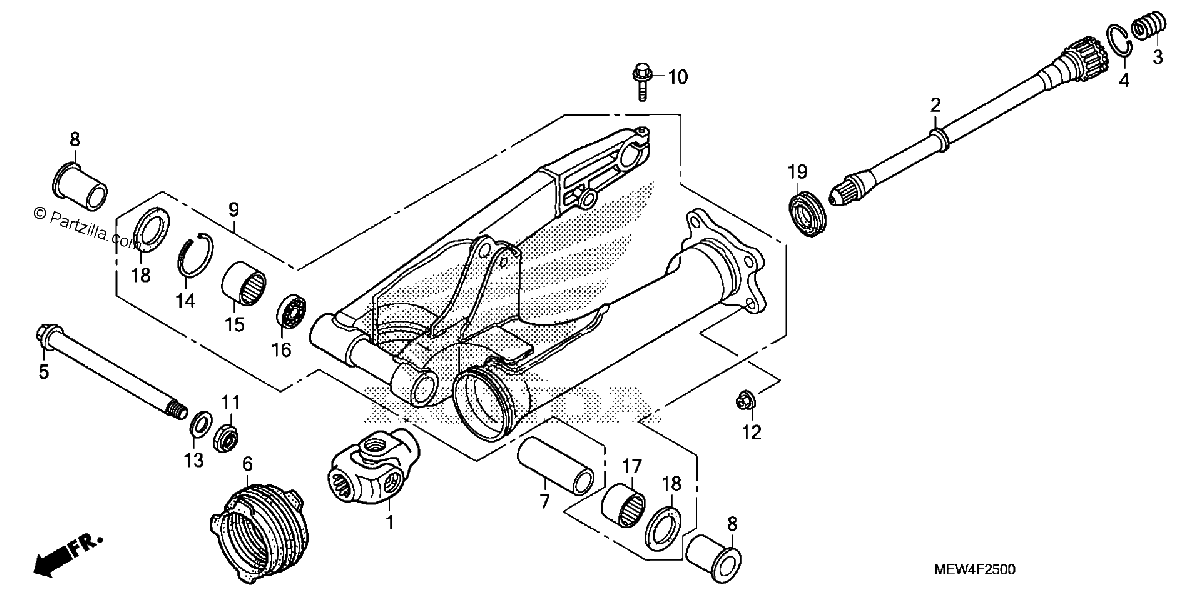

Diagrama de SWINGARM

Repuestos

#1
40200-MR6-671
JOINT, YOKE
$393.77¢196 886
1
#2
40201-MBL-610
SHAFT, PROPELLER
$116.68¢58 339
1
#3
40215-ME9-003
SPRING, PROPELLER SHAFT
$6.59¢3 295
1
#4
40221-MB0-000
RING, STOPPER
$5.04¢2 519
1
#5
52101-MEW-920
BOLT, SWINGARM PIVOT
$33.90¢16 951
1
#6
52104-MEW-920
BOOT, JOINT
$12.59¢6 296
1
#7
52141-MEW-920
COLLAR, CENTER PIVOT DISTANCE
$30.29¢15 145
1
#8
52142-MEW-920
COLLAR, PIVOT DISTANCE
$21.77¢10 885
1
#9
52200-MEW-920
SWINGARM SUB-ASSY., RR.
$970.51¢485 254
1
#10
90105-GM9-740
BOLT, FLANGE (8X32)
$5.31¢2 657
1
#11
90306-MCS-G00
NUT, U (18MM)
$7.95¢3 973
1
#12
90308-357-000
NUT, HEX. (10MM)
$5.43¢2 714
1
#13
90432-MCS-G00
WASHER, SPECIAL (18MM)
$3.39¢1 696
1
#14
90651-MEW-920
CIRCLIP (INNER) (37)
$3.71¢1 857
1
#15
91071-MBW-E11
BEARING, NEEDLE
$18.38¢9 189
1
#16
91071-MEW-921
BEARING, RADIAL BALL (20X37X9)
$11.03¢5 514
1
#17
91071-MR7-003
BEARING, NEEDLE
$27.44¢13 719
1
#18
91202-MR7-003
DUST SEAL (28X37X4)
$7.08¢3 542
1
#19
91261-ME9-005
OIL SEAL (27X43X7)
$12.96¢6 480
1
