FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

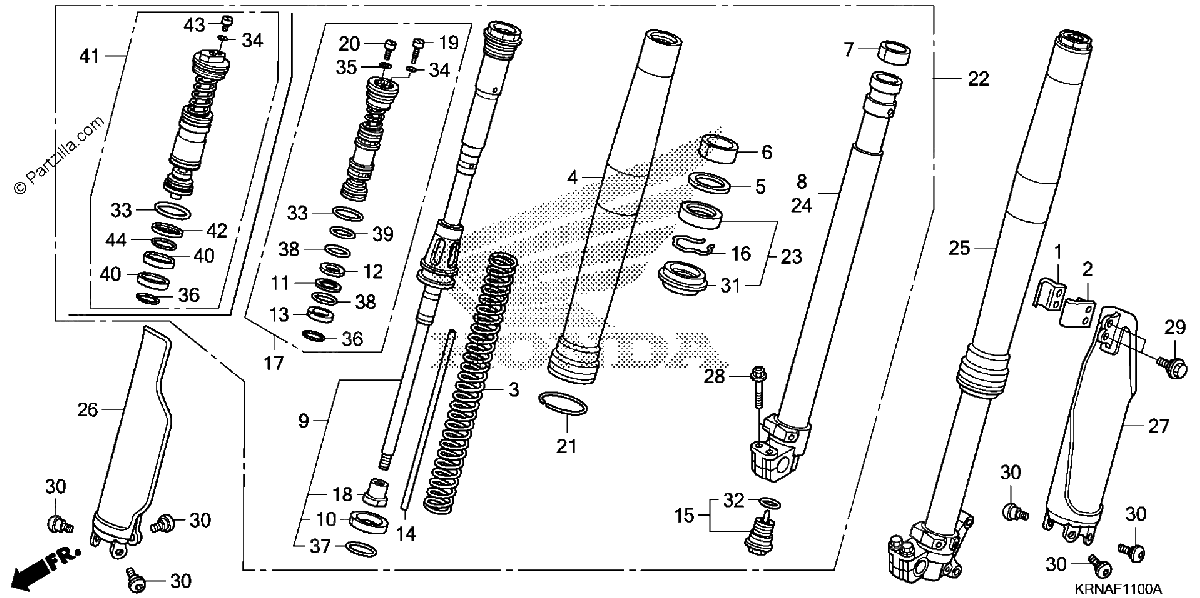

Diagrama de FRONT FORK

Repuestos

#1
45461-MEN-000
CLAMP A, FR. BRAKE HOSE
$7.70¢3 850
1
#2
45462-MEN-000
CLAMP B, FR. BRAKE HOSE
$5.67¢2 838
1
#3
51401-KRN-A41
SPRING, FR. FORK (4.4N/MM,0.45KGF/MM) (SHOWA)
$129.51¢64 756
1
#3
51402-KRN-A41
SPRING, FR. FORK (4.2N/MM,0.43KGF/MM) (SHOWA)
$140.16¢70 081
1
#3
51403-KRN-A41
SPRING, FR. FORK (4.6N/MM,0.47KGF/MM) (SHOWA)
$140.13¢70 063
1
#4
51410-KRN-A41
TUBE (OUTER)
No Disponible
1
#5
51412-KRN-A41
RING, BACK-UP
No Disponible
1
#6
51414-KRN-A41
BUSH, GUIDE
$8.15¢4 075
1
#7
51415-KRN-A41
BUSH, SLIDER
$11.41¢5 706
1
#8
51420-KRN-A41
PIPE, R. SLIDE
$517.27¢258 638
1
#9
51430-KRN-A41
DAMPER, FR.
No Disponible
1
#10
51431-KRN-A41
BUSH B, SLIDER
$5.70¢2 850
1
#11
51434-KRN-A41
RING B, BACK-UP
$6.56¢3 281
1
#12
51436-KRN-A41
BUSH, SLIDER
$14.96¢7 481
1
#13
51437-KRN-A41
BUSH, SLIDER
$14.33¢7 163
1
#14
51438-KRN-A41
COLLAR, REBOUND NEEDLE
$9.14¢4 569
1
#15
51440-KRN-A41
BOLT, CENTER
$39.81¢19 906
1
#16
51447-KRN-A41
RING, OIL SEAL STOPPER
$6.19¢3 094
1
#17
51450-KRN-A41
BOLT ASSY., FR. FORK
No Disponible
1
#18
51451-MEN-A11
NUT, LOCK
$12.41¢6 206
1
#19
51456-KRN-A41
BOLT, PLUG
$7.64¢3 819
1
#20
51456-KZ3-731
BOLT, PLUG
$11.20¢5 600
1
#21
51476-MEY-003
RING, WEAR
$5.94¢2 969
1
#22
51480-KRN-305
FORK SET, R. FR. (COO) (SHOWA)
No Disponible
1
#23
51490-KRN-A41
SEAL SET, FR. FORK
$26.55¢13 275
1
#24
51520-KRN-A41
PIPE, L. SLIDE
$517.27¢258 638
1
#25
51580-KRN-305
FORK SET, L. FR. (COO) (SHOWA)
$1634.17¢817 088
1
#26
51610-MEN-000ZA
PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)
$56.29¢28 144
1
#27
51620-MEN-000ZA
PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)
$61.41¢30 706
1
#28
90108-KZ4-J40
BOLT, FLANGE (8X40)
$2.75¢1 375
1
#29
90113-KZ3-000
BOLT, FLANGE (6MM)
$3.65¢1 825
1
#30
90113-MAC-780
BOLT, PROTECTOR
$4.28¢2 138
1
#31
91254-KRN-A41
DUST SEAL
$20.26¢10 131
1
#32
91257-KZ3-003
O-RING (21X1.9)
$3.55¢1 775
1
#33
91258-MEE-D01
O-RING (39.7X2.4)
$2.73¢1 363
1
#34
91301-KZ3-711
O-RING (3.5X1.5)
$3.49¢1 744
1
#35
91301-KZ3-731
O-RING (2.8X1.9)
$2.60¢1 300
1
#36
91304-MA6-003
O-RING (31.5X2.0) (SHOWA)
$2.95¢1 475
1
#36
91304-MCA-A00
O-RING (31.5X2.0)
$2.95¢1 475
1
#36
91304-MCA-A02
O-RING (31.5X2.0)
$2.95¢1 475
1
#37
91351-KRN-A41
O-RING (47.2X2.4)
$4.58¢2 288
1
#38
91353-KRN-A41
O-RING (29.7X3.5)
$2.44¢1 219
1
#39
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
