RIGHT CRANKCASE COVER WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

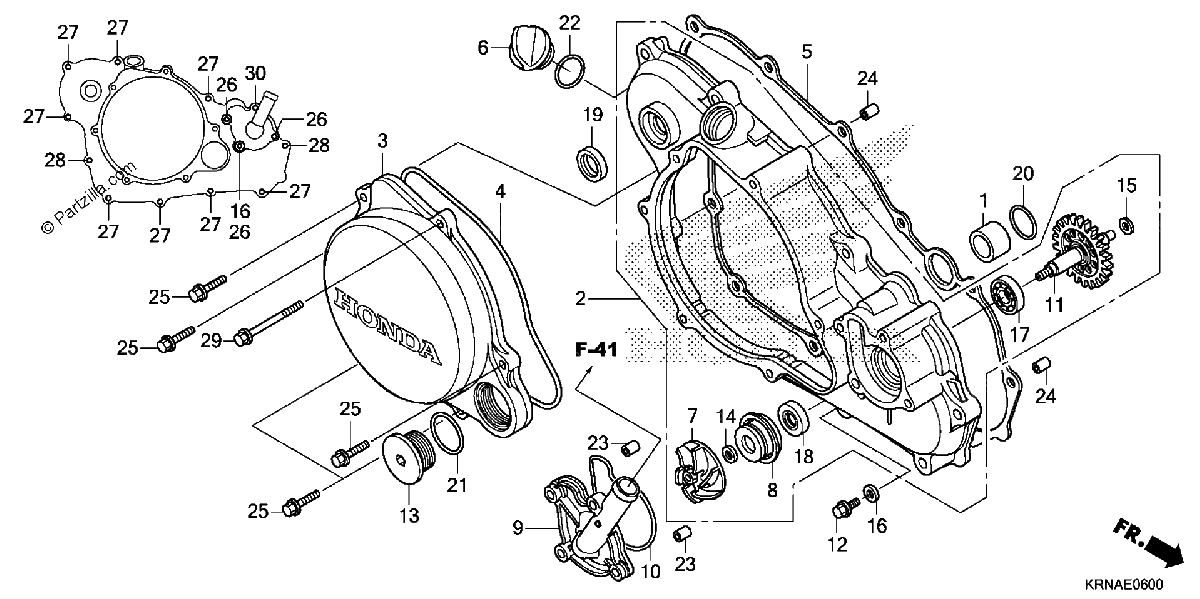

Diagrama de RIGHT CRANKCASE COVER WATER PUMP

Repuestos

#1
11102-KRN-670
COLLAR, WATER PASS (16MM)
$3.36¢1 679
1
#2
11330-KRN-A40
COVER ASSY., R. CRANKCASE
$414.02¢207 011
1
#3
11351-KRN-A40
COVER, CLUTCH
$154.10¢77 050
1
#4
11352-KRN-A41
GASKET, CLUTCH COVER
$11.60¢5 802
1
#5
11394-KRN-A40
GASKET, R. COVER
$25.58¢12 788
1
#6
15611-KA4-710
CAP, OIL FILLER
$15.38¢7 688
1
#7
19215-KRN-A00
IMPELLER, WATER PUMP
$52.97¢26 485
1
#8
19217-KRN-A40
SEAL, MECHANICAL
$48.86¢24 432
1
#9
19221-KRN-A40
COVER, WATER PUMP
$103.50¢51 750
1
#10
19226-KRN-A40
GASKET, WATER PUMP
$7.16¢3 582
1
#11
19240-KRN-A40
GEAR, WATER PUMP (22T)
$118.36¢59 179
1
#12
90004-GHB-600
BOLT, FLANGE (6X10) (NSHF)
$3.45¢1 725
1
#13
90087-HB5-000
CAP (30MM)
$17.95¢8 976
1
#14
90447-KE1-000
WASHER, SEALING (7MM)
$3.15¢1 576
1
#15
90447-KRN-A40
WASHER, SPECIAL (7MM)
$2.22¢1 110
1
#16
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#17
91002-MEN-A31
BEARING, BALL (12X24X6)
$9.50¢4 749
1
#18
91201-148-003
OIL SEAL (12X22X5) (ARAI)
$4.52¢2 260
1
#18
91201-965-000
OIL SEAL (12X22X5)
$4.52¢2 260
1
#19
91205-KA3-712
OIL SEAL (16.5X25X5) (NOK)
$6.87¢3 433
1
#20
91304-MJ0-003
O-RING (15.8X2.4) (SHOWA)
$2.64¢1 322
1
#21
91305-KF0-003
O-RING (27X2) (ARAI)
$3.36¢1 679
1
#22
91307-035-000
O-RING (18X3)
$3.36¢1 679
1
#23
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#24
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#25
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
#26
96001-06025-00
BOLT, FLANGE (6X25)
$2.48¢1 242
1
#27
96001-06028-00
BOLT, FLANGE (6X28)
$2.56¢1 282
1
#28
96001-06035-00
BOLT, FLANGE (6X35)
$1.66¢828
1
#29
96001-06060-00
BOLT, FLANGE (6X60)
$2.56¢1 282
1
#30
96001-06065-00
BOLT, FLANGE (6X65)
$2.77¢1 386
1
