FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

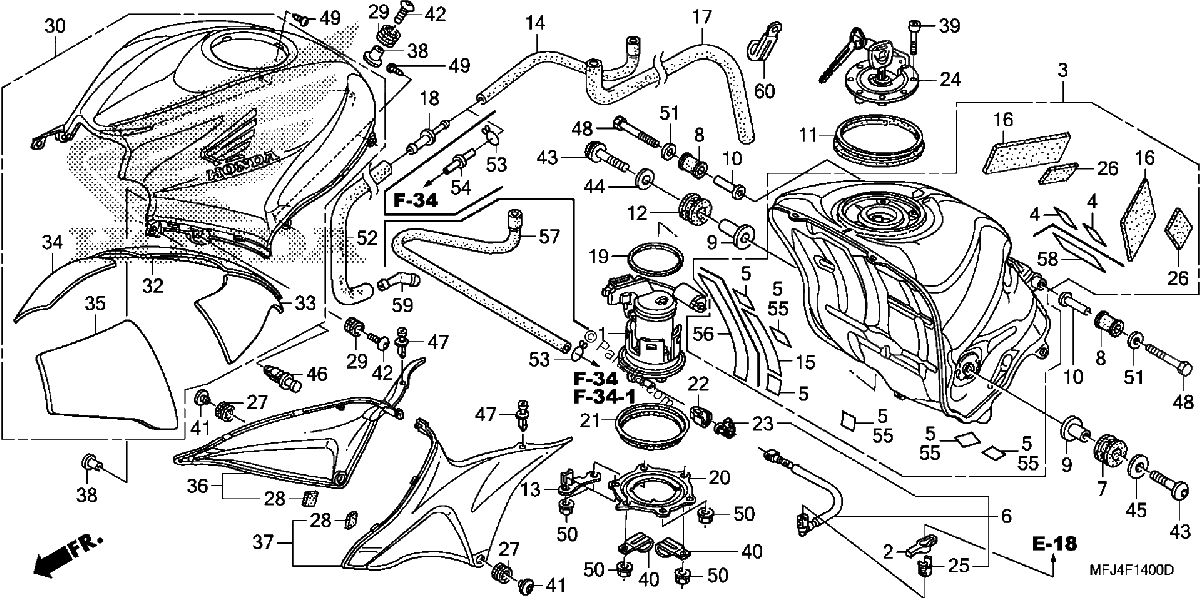

Diagrama de FUEL TANK

Repuestos

#1
16700-MFJ-D01
PUMP ASSY., FUEL (MSDS)
$623.27¢311 633
1
#1
16700-MFJ-D02
PUMP ASSY., FUEL (MSDS)
No Disponible
1
#2
16719-MFJ-D00
DAMPER, CONNECTOR
$3.36¢1 679
1
#3
17500-MFJ-D10
TANK SET, FUEL
$979.04¢489 520
1
#6
17526-MFJ-D01
HOSE B, FUEL FEED
$71.94¢35 972
1
#7
17533-MEL-000
RUBBER, L. FR. TANK MOUNTING
$4.06¢2 030
1
#8
17534-MFJ-D00
RUBBER, RR. TANK MOUNTING
$5.30¢2 651
1
#9
17535-MEL-D20
COLLAR, FR. TANK SETTING
$8.85¢4 427
1
#10
17538-MEE-D00
COLLAR, RR. TANK SETTING
$6.49¢3 243
1
#11
17543-MEE-000
SEAL, FUEL TANK
$8.18¢4 088
1
#12
17545-MEL-000
RUBBER, R. FR. TANK MOUNTING
$4.06¢2 030
1
#13
17553-MFJ-D00
GUIDE, BREATHER TUBE
$7.69¢3 847
1
#14
17555-MFJ-D00
TUBE, BREATHER
$14.18¢7 090
1
#16
17558-MEE-940
CUSHION, FUEL TANK
$17.36¢8 683
1
#17
17559-MFJ-A40
TUBE, DRAIN
$17.85¢8 924
1
#18
17561-MEE-000
JOINT, BREATHER TUBE
$5.46¢2 731
1
#19
17574-MFJ-D00
GASKET, FUEL PUMP
$27.32¢13 662
1
#20
17575-MFJ-D00
PLATE, FUEL PUMP SETTING
$11.56¢5 779
1
#21
17576-MFJ-D00
SEAL (OUTER)
$6.57¢3 283
1
#22
17580-MFJ-D00
COVER, FUEL CONNECTOR
$6.11¢3 053
1
#23
17711-S0X-931
RETAINER (BLUE GREEN) (TOKAI)
$3.69¢1 846
1
#24
17620-MCJ-751
CAP, FUEL FILLER
$196.52¢98 262
1
#25
17711-S0X-931
RETAINER (BLUE GREEN) (TOKAI)
$3.69¢1 846
1
#26
50322-MEC-000
SPONGE, RUBBER
$1.89¢943
1
#27
64535-MFJ-D00
RUBBER, SIDE COVER
$2.30¢1 150
1
#28
77182-KTB-300
RUBBER, SPACER
$2.06¢1 029
1
#29
80101-165-000
RUBBER, Rear FENDER CUSHION
$4.16¢2 081
1
#30
83100-MFJ-S20ZA
SHELTER SET, TOP *NHA66P* (WL) (PEARL SUNBEAM WHITE)
$1487.95¢743 975
1
#32
83161-MFJ-A00
MAT, R. RR. TOP SHELTER
$12.18¢6 089
1
#33
83162-MFJ-A00
MAT, L. RR. TOP SHELTER
$12.18¢6 089
1
#34
83165-MFJ-A00
(BOTH SIDES)
$10.94¢5 468
1
#35
83166-MFJ-A00
MAT, L. FR. TOP SHELTER
$13.95¢6 975
1
#36
83600-MFJ-D00
COVER, R. SIDE
$19.20¢9 603
1
#37
83700-MFJ-D00
COVER, L. SIDE
$19.20¢9 603
1
#38
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
1
#39
90074-MT4-000
BOLT, SOCKET (4X21)
$3.39¢1 696
1
#40
90105-727-000
CLIP (2X50)
$3.58¢1 788
1
#41
90114-MFJ-D00
SCREW, SPECIAL (5X6)
$2.53¢1 265
1
#42
90118-MEJ-J00
SCREW, PAN (6X20)
$2.53¢1 265
1
#43
90128-KL4-000
BOLT, SPROCKET FIXING
$9.90¢4 951
1
#44
90524-030-000
WASHER A, HANDLE HOLDER SETTING
$1.64¢822
1
#45
90534-750-000
WASHER (8.5MM)
$4.58¢2 289
1
#46
90657-SB0-003
CLIP, SPLASH SHIELD
$5.88¢2 938
1
#47
90683-GR1-003
CLIP, BODY COVER
$3.36¢1 679
1
#48
92201-06040-0A
BOLT, HEX. (6X40)
$1.09¢546
1
#49
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#50
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#51
94103-06000
WASHER, PLAIN (6MM)
$1.17¢586
1
#52
17557-MFJ-A40
TUBE (8X590)
$16.32¢8 159
1
#55
17528-MR4-900
TAPE, TANK GUARD
$2.75¢1 374
1
#56
17554-MFJ-D10
FILM A, PROTECTOR
$13.10¢6 549
1
#58
17557-MFJ-D10
FILM B, PROTECTOR
$5.39¢2 697
1
#60
91410-679-000
CLIP (2X60)
$10.83¢5 416
1
