FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

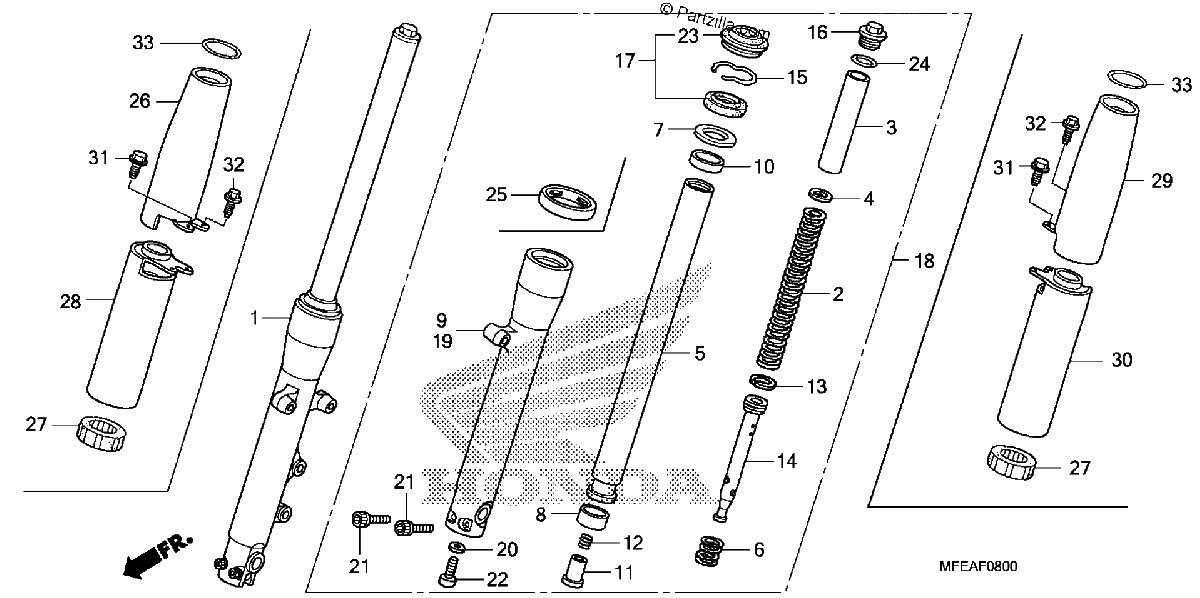

Diagrama de FRONT FORK

Repuestos

#1
51400-MFE-306
FORK Assembly., Right Front. (COO) (KAYABA)
$797.81¢398 906
1
#001
51400-MFE-306
FORK Assembly., Right Front. (COO) (KAYABA)
$797.81¢398 906
1
#001
51400-MFE-A41
FORK Assembly., Right Front. (KAYABA)
$797.81¢398 906
1
#1
51400-MFE-A41
FORK Assembly., Right Front. (KAYABA)
$797.81¢398 906
1
#2
51401-MEG-003
SPRING, Front FORK
$92.64¢46 319
1
#002
51401-MEG-003
SPRING, Front FORK
$92.64¢46 319
1
#3
51402-MEG-003
SPACER, SPRING
$13.53¢6 763
1
#003
51402-MEG-003
SPACER, SPRING
$13.53¢6 763
1
#4
51404-MBA-003
WASHER
$7.40¢3 700
1
#004
51404-MBA-003
WASHER
$7.40¢3 700
1
#5
51410-MEG-003
PIPE, Front FORK
$399.13¢199 563
1
#005
51410-MEG-003
PIPE, Front FORK
$399.13¢199 563
1
#006
51411-MBA-003
SPRING, FR. REBOUND
$8.69¢4 344
1
#6
51411-MBA-003
SPRING, FR. REBOUND
$8.69¢4 344
1
#007
51412-KA4-004
WASHER
$8.19¢4 094
1
#7
51412-KA4-004
WASHER
$8.19¢4 094
1
#8
51415-MEG-003
BUSH, SLIDER
$9.24¢4 619
1
#008
51415-MEG-003
BUSH, SLIDER
$9.24¢4 619
1
#009
51420-MFE-A41
CASE, R. (LOWER)
$421.06¢210 531
1
#9
51420-MFE-A41
CASE, R. (LOWER)
$421.06¢210 531
1
#010
51424-MCT-003
BUSH, GUIDE
$8.49¢4 244
1
#10
51424-MCT-003
BUSH, GUIDE
$8.49¢4 244
1
#11
51431-MBA-003
PIECE, OIL LOCK
$19.72¢9 862
1
#011
51431-MBA-003
PIECE, OIL LOCK
$19.72¢9 862
1
#012
51433-MBA-J50
SPRING, OIL LOCK
$4.09¢2 044
1
#12
51433-MBA-J50
SPRING, OIL LOCK
$4.09¢2 044
1
#013
51437-MCT-003
RING, PISTON
$6.35¢3 175
1
#13
51437-MCT-003
RING, PISTON
$6.35¢3 175
1
#014
51440-MEG-003
PIPE, SEAT
$54.46¢27 231
1
#14
51440-MEG-003
PIPE, SEAT
$54.46¢27 231
1
#15
51447-KA4-004
RING, SNAP
$5.13¢2 563
1
#015
51447-KA4-004
RING, SNAP
$5.13¢2 563
1
#16
51450-MEG-901
BOLT, FR. FORK
$32.57¢16 287
1
#016
51450-MEG-901
BOLT, FR. FORK
$32.57¢16 287
1
#17
51490-MCT-003
SEAL SET, Front FORK
$20.76¢10 381
1
#017
51490-MCT-003
SEAL SET, Front FORK
$20.76¢10 381
1
#18
51500-MFE-A41
FORK Assembly., L Front. (KAYABA)
$797.81¢398 906
1
#18
51500-MFE-306
FORK Assembly., L Front. (COO) (KAYABA)
$797.81¢398 906
1
#018
51500-MFE-306
FORK Assembly., L Front. (COO) (KAYABA)
$797.81¢398 906
1
#018
51500-MFE-A41
FORK Assembly., L Front. (KAYABA)
$797.81¢398 906
1
#019
51520-MFE-A41
CASE, Left (LOWER)
$421.06¢210 531
1
#19
51520-MFE-A41
CASE, Left (LOWER)
$421.06¢210 531
1
#20
52442-KA3-731
WASHER, OIL BOLT
$3.01¢1 506
1
#020
52442-KA3-731
WASHER, OIL BOLT
$3.01¢1 506
1
#21
90109-MCR-D00
BOLT, SOCKET (8X35)
$3.65¢1 825
1
#021
90109-MCR-D00
BOLT, SOCKET (8X35)
$3.65¢1 825
1
#22
90116-KK0-004
BOLT, SOCKET (10X25)
$7.21¢3 606
1
#022
90116-KK0-004
BOLT, SOCKET (10X25)
$7.21¢3 606
1
#23
91254-MCK-A01
DUST SEAL
$14.24¢7 119
1
#023
91254-MCK-A01
DUST SEAL
$14.24¢7 119
1
#024
91356-KT1-671
O-RING (31.7X3.5)
$3.80¢1 900
1
#24
91356-KT1-671
O-RING (31.7X3.5)
$3.80¢1 900
1
#025
51460-MCK-A01
GUIDE, COVER
$11.65¢5 825
1
#25
51460-MCK-A01
GUIDE, COVER
$11.65¢5 825
1
#026
51610-MFE-A40
COVER, Right Front FORK TOP
$108.36¢54 181
1
#26
51610-MFE-A40
COVER, Right Front FORK TOP
$108.36¢54 181
1
#027
51611-MBA-000
MOUNT, Front FORK COVER
$12.56¢6 281
1
#27
51611-MBA-000
MOUNT, Front FORK COVER
$12.56¢6 281
1
#028
51620-MFE-A40
COVER, Right Front FORK (LOWER)
$98.18¢49 088
1
#28
51620-MFE-A40
COVER, Right Front FORK (LOWER)
$98.18¢49 088
1
#29
51660-MFE-A40
COVER, L Front FORK TOP
$86.89¢43 444
1
#029
51660-MFE-A40
COVER, L Front FORK TOP
$86.89¢43 444
1
#030
51670-MFE-A40
COVER, L Front FORK (LOWER)
$98.18¢49 088
1
#30
51670-MFE-A40
COVER, L Front FORK (LOWER)
$98.18¢49 088
1
#031
90101-MFE-A40
BOLT, FLANGE (8X12)
$4.26¢2 131
1
#31
90101-MFE-A40
BOLT, FLANGE (8X12)
$4.26¢2 131
1
#32
90123-MFE-A40
BOLT, FLANGE (6X12)
$2.97¢1 487
1
#032
90123-MFE-A40
BOLT, FLANGE (6X12)
$2.97¢1 487
1
#033
91305-MC7-000
O-RING (39.5X5)
$4.01¢2 006
1
#33
91305-MC7-000
O-RING (39.5X5)
$4.01¢2 006
1
