FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

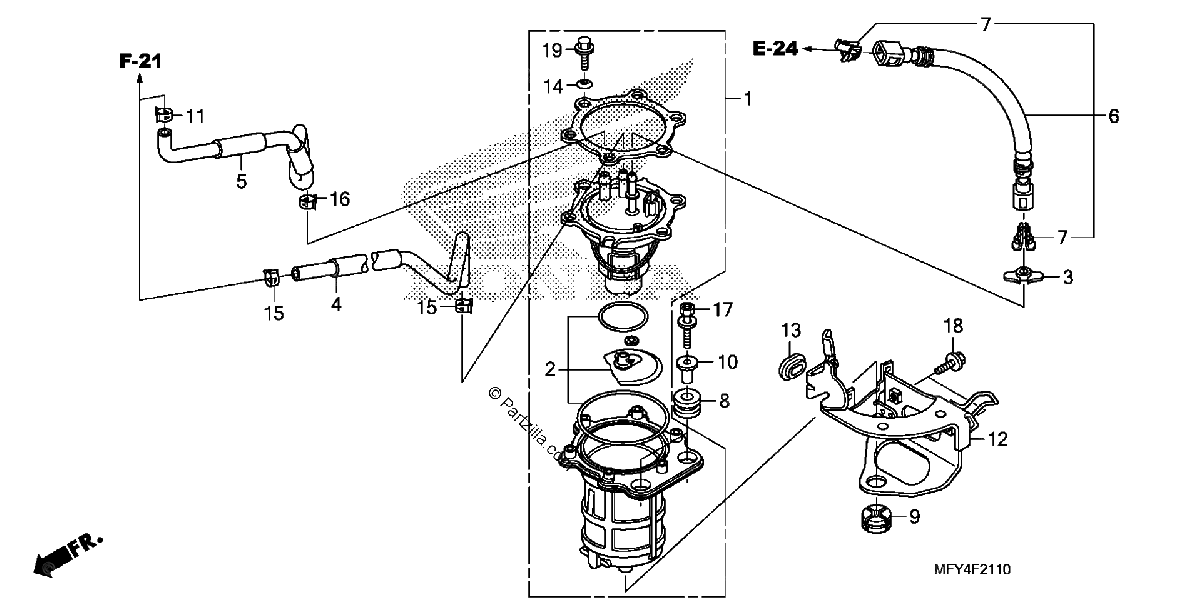

Diagrama de FUEL PUMP

Repuestos

#1
16700-HN8-601
PUMP ASSY., FUEL (MSDS)
$168.63¢84 313
1
#1
16700-HN8-A62
PUMP Assembly., FUEL (MSDS)
$168.63¢84 313
1
#2
16706-HN8-305
FILTER KIT (INSTALL INST, REFER TO TRX500(HR0) SM (61HR000) PG.7-17)
$49.01¢24 506
1
#2
16706-HN8-A62
FILTER SET
$49.01¢24 506
1
#3
16719-HN8-A61
RUBBER, FUEL JOINT
$2.99¢1 494
1
#4
16730-MFY-A00
TUBE, FUEL PUMP BREATHER
$34.08¢17 038
1
#5
16951-MFY-A00
TUBE, FUEL
$46.60¢23 300
1
#6
17526-MFR-671
HOSE, FUEL FEED
$90.13¢45 063
1
#7
17711-S0X-A31
RETAINER (GREEN) (TOKAI)
$4.01¢2 006
1
#8
18334-KA3-830
RUBBER, MUFFLER
$4.71¢2 356
1
#9
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#10
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
1
#10
19052-MN8-000
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
1
#11
43514-445-771
CLAMP, MASTER CYLINDER OIL HOSE
$16.57¢8 288
1
#12
50228-MFR-670
STAY, FUEL PUMP
$78.88¢39 438
1
#13
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#14
90501-HN8-A60
WASHER, CONICAL SPRING
$1.02¢513
1
#15
90651-HN6-A51
CLAMP, TUBE (12.0)
$2.66¢1 331
1
#16
90682-SA0-671
CLAMP, CANISTER HOSE
$9.29¢4 644
1
#17
93404-06030-00
BOLT-WASHER (6X30)
$1.68¢838
1
#18
95701-08016-07
BOLT, FLANGE (8X16)
$2.15¢1 075
1
#19
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
