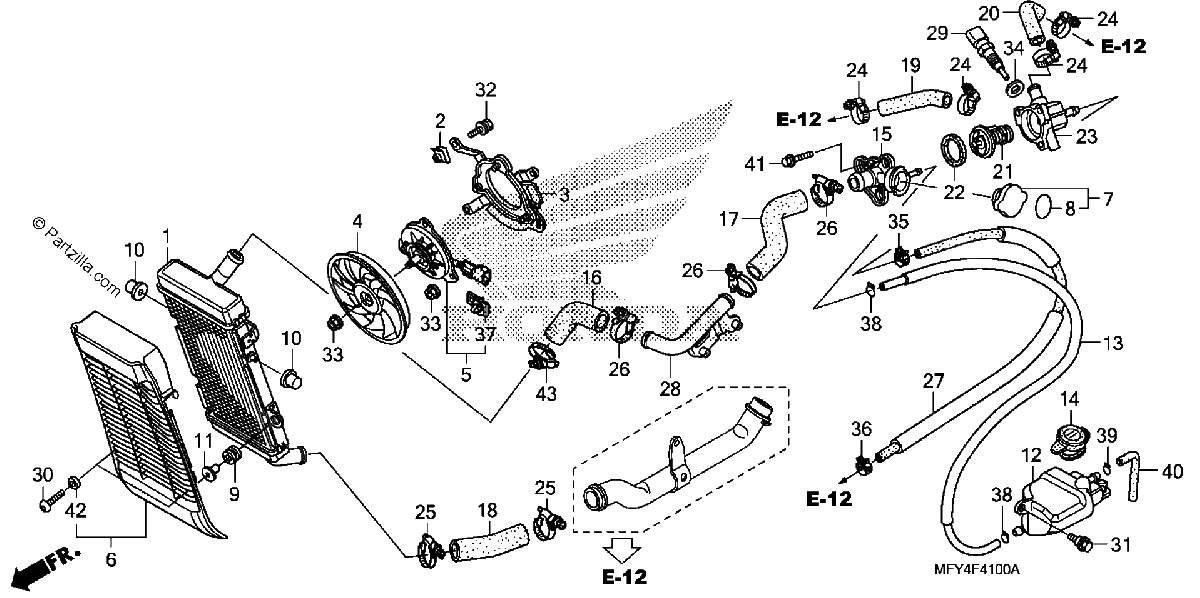

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RADIATOR (COO)
$824.29¢412 143
#2
NUT, SETTING (6MM)
$3.45¢1 725
#3
SHROUD (COO)
$97.04¢48 518
#4
FAN, COOLING
$20.72¢10 362
#5
MOTOR ASSY., FAN
$336.04¢168 021
#6
GRILLE, RADIATOR
$82.88¢41 440
#7
CAP, RADIATOR
$32.35¢16 175
#8
LABEL, RADIATOR CAP
$3.36¢1 679
#9
RUBBER, RADIATOR MOUNTING
$3.69¢1 846
#10
RUBBER, RADIATOR MOUNTING
$5.04¢2 519
#11
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
#11
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
#12
TANK, RADIATOR RESERVE
$48.74¢24 369
#12
TANK, RADIATOR RESERVE (COO)
$48.74¢24 369
#13
TUBE, RADIATOR RESERVE TANK
$22.26¢11 132
#14
CAP, RESERVE TANK
$12.99¢6 498
#15
NECK ASSY., FILLER
$85.46¢42 728
#16
HOSE A, RADIATOR (UPPER)
$20.52¢10 258
#17
HOSE B, RADIATOR (UPPER)
$26.32¢13 162
#18
HOSE, RADIATOR (LOWER)
$14.18¢7 090
#19
HOSE, FR. OUTLET WATER
$9.96¢4 980
#20
HOSE, RR. OUTLET WATER
$9.96¢4 980
#21
THERMOSTAT ASSY.
$51.03¢25 513
#22
RUBBER, THERMOSTAT
$6.76¢3 381
#23
CASE, THERMOSTAT
$106.69¢53 343
#24
CLAMP B, WATER HOSE
$8.37¢4 186
#25
CLAMP, RADIATOR HOSE
$14.60¢7 302
#26
CLAMP, HOSE (30-37MM)
$14.86¢7 429
#27
HOSE, BYPASS
$28.57¢14 283
#28
PIPE D, WATER
$36.65¢18 325
#29
SENSOR ASSY., WATER TEMPERATURE
$33.09¢16 543
#30
SCREW, PAN (6X28) (G)
$4.24¢2 122
#31
BOLT, FLANGE (6MM)
$4.71¢2 357
#32
BOLT-WASHER (6X14)
$3.16¢1 581
#33
NUT, SERRATE (5MM)
$2.75¢1 374
#34
WASHER, SPECIAL (12MM)
$3.09¢1 547
#35
CLAMP, TUBE (17.5)
$2.39¢1 196
#36
CLAMP, TUBE (D12)
$9.66¢4 830
#37
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
#38
CLIP, TUBE (B12)
$2.20¢1 098
#39
CLIP, TUBE (C11)
$1.94¢972
#40
BULK HOSE, VACUUM (7X3000) OEM CUT SIZE: (7X200)
$25.22¢12 610
#41
BOLT, FLANGE (6X18)
$1.92¢960
#42
COLLAR, STEP RUBBER SETTING
$4.06¢2 030
#43
CLAMP, HOSE
$9.07¢4 537
