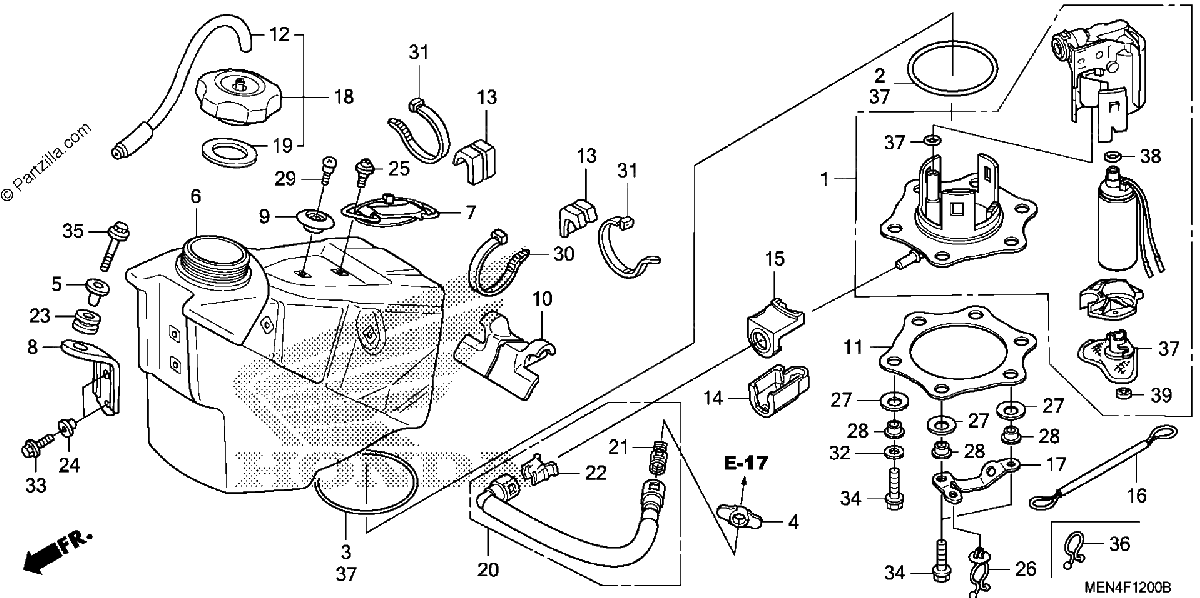

FUEL TANK 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
(FOR OEM PUMP ASSY. USE FILTER
$426.11¢213 056
#1
PUMP ASSY., FUEL
$426.11¢213 056
#1
PUMP ASSY., FUEL (MSDS)
$426.11¢213 056
#2
O-RING (3.7X73.9)
$14.15¢7 075
#3
O-RING (2.4X88.4)
$12.96¢6 481
#4
RUBBER, FUEL JOINT
$2.99¢1 494
#5
COLLAR, TANK SETTING
$10.55¢5 275
#6
TANK, FUEL
No Disponible
#6
TANK, FUEL
No Disponible
#7
BAND, Rear TANK
$18.94¢9 469
#8
STAY, FR. FUEL TANK
$10.04¢5 019
#9
COLLAR, FR. SEAT
$7.04¢3 519
#10
RUBBER, FUEL TANK MOUNTING
No Disponible
#11
PLATE, FUEL PUMP
$23.81¢11 906
#12
TUBE, FUEL CAP BREATHER
$7.79¢3 894
#13
RUBBER, TANK SIDE MOUNTING
$7.99¢3 994
#14
COVER, FUEL CONNECTOR
$9.04¢4 519
#15
RUBBER, FUEL CONNECTOR
$5.78¢2 888
#16
CABLE, FUEL TANK STOPPER
$9.94¢4 969
#17
GUIDE, STOPPER CABLE
$10.84¢5 419
#18
CAP ASSY., FUEL TANK
$117.36¢58 681
#19
GASKET, FUEL CAP
$5.84¢2 919
#20
HOSE ASSY., FUEL FEED
$100.02¢50 012
#21
RETAINER (GREEN) (TOKAI)
$4.01¢2 006
#22
RETAINER (BLUE GREEN) (TOKAI)
$4.01¢2 006
#23
RUBBER, MUFFLER
$4.70¢2 350
#24
COLLAR
$3.01¢1 506
#25
SCREW (5X12)
$2.15¢1 075
#27
WASHER, CONICAL SPRING FUEL PUMP
$3.43¢1 713
#28
COLLAR, FUEL PUMP
$5.66¢2 831
#29
SCREW, SPECIAL (5MM)
$3.65¢1 825
#30
TY-RAP, CABLE (240MM)
$2.54¢1 269
#31
TY-RAP, CABLE
$3.05¢1 525
#32
WASHER, PLAIN (6MM)
$0.84¢419
#32
WASHER, PLAIN (6MM)
$0.84¢419
#32
WASHER, PLAIN (6MM)
$0.84¢419
#33
BOLT, FLANGE (6X16)
$1.35¢675
#34
BOLT, FLANGE (6X22)
$1.60¢800
#35
BOLT, FLANGE (6X30)
$1.80¢900
#36
CLAMP, FUEL HOSE (18.5MM)
$14.26¢7 131
#36
CLIP, BREATHER TUBE PROTECTOR
$12.69¢6 344
#37
FILTER KIT, FUEL
$64.36¢32 181
#37
FILTER KIT, FUEL
$64.36¢32 181
#38
O-RING (8.6X1.9)
$0.71¢356
#39
CLIP, FUEL PUMP
$4.84¢2 419
