REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

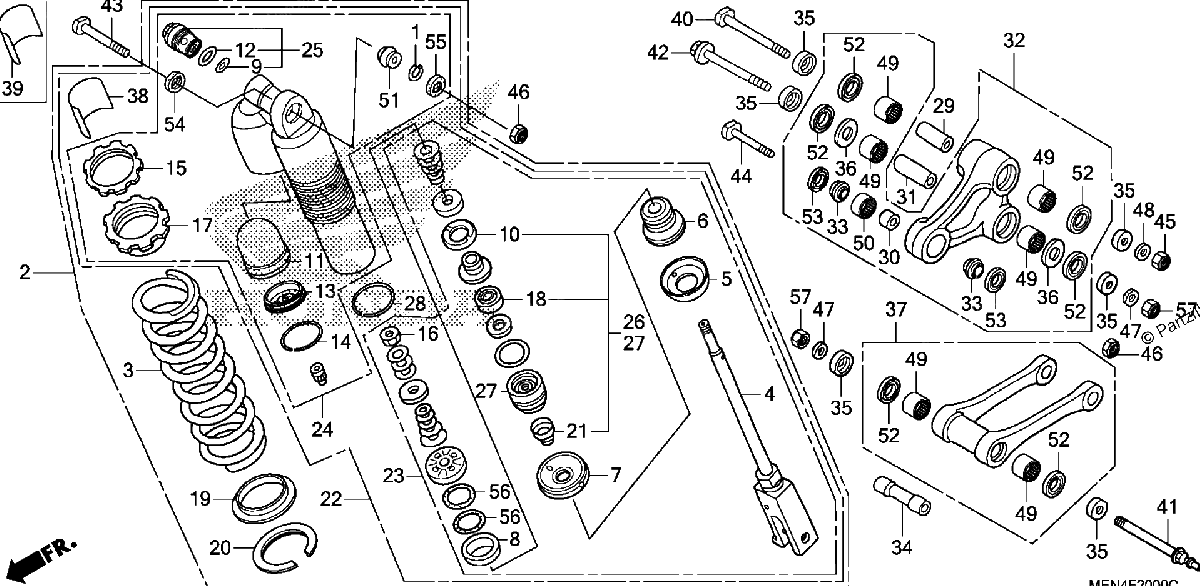

Diagrama de REAR SHOCK ABSORBER

Repuestos

#1
41405-HA7-670
RING, STOPPER
$3.36¢1 679
1
#2
52400-MEN-305
CUSHION ASSY., RR. (COO)
$1383.00¢691 501
1
#3
52401-MEN-A31
SPRING, RR. SHOCK ABSORBER (54N/MM)
$238.44¢119 220
1
#3
52402-MEN-A31
SPRING, RR. SHOCK ABSORBER (52N/MM)
$231.54¢115 771
1
#3
52403-MEN-A31
SPRING, RR. SHOCK ABSORBER (56N/MM)
$249.19¢124 597
1
#4
52421-MEN-A41
ROD
$522.87¢261 435
1
#5
52422-MEN-A31
CAP, BUMPER RUBBER
$19.29¢9 643
1
#6
52423-MEN-A31
RUBBER, BUMPER
$16.08¢8 038
1
#7
52424-MEN-A31
CAP, CASE
$18.14¢9 068
1
#8
52428-MEN-A31
RING, PISTON
$16.90¢8 452
1
#9
52433-MAC-741
O-RING (21.5X1.5)
$4.11¢2 053
1
#10
52434-KSR-711
RUBBER, STOPPER
$4.58¢2 289
1
#11
52434-MEN-A31
BLADDER
$19.46¢9 729
1
#12
52435-MAC-741
O-RING (25.5X2.0)
$6.67¢3 335
1
#13
52435-MEN-A31
CAP, BLADDER
$38.34¢19 171
1
#14
52436-MEN-A31
RING, SNAP
$3.69¢1 846
1
#15
52437-MEN-A31
NUT, ADJUST
$9.37¢4 686
1
#16
52438-KA3-731
NUT, HEX. (12MM)
$4.04¢2 018
1
#17
52438-MEN-A31
SEAT, SPRING (UPPER)
$15.25¢7 624
1
#18
52439-KSR-711
OIL SEAL
$13.87¢6 935
1
#19
52439-MEN-A31
WASHER, SPRING SEAT
$9.96¢4 980
1
#20
52440-MEN-A31
SEAT, SPRING (LOWER)
$35.09¢17 543
1
#21
52441-MEN-A31
DUST SEAL
$6.67¢3 335
1
#22
52410-MEN-A41
DAMPER, RR.
$1078.85¢539 425
1
#23
52422-MEN-A41
ROD, PISTON
$488.43¢244 214
1
#24
52425-MEN-A41
CASE, RR.
$1004.36¢502 182
1
#25
52440-MEN-A41
ADJUSTER, COMPRESSION DAMPING FORCE
$115.66¢57 828
1
#26
52446-MEN-A31
OIL SEAL SET
$25.06¢12 529
1
#27
52447-MEN-A31
CASE ASSY., ROD GUIDE
$91.87¢45 937
1
#28
52448-MEN-A31
RING, SNAP
$3.36¢1 679
1
#29
52463-KZ4-J40
COLLAR C, CUSHION ARM
$6.35¢3 174
1
#30
52464-KRN-710
COLLAR D, CUSHION ARM
$11.03¢5 514
1
#31
52464-MEN-A30
COLLAR B, CUSHION
$8.97¢4 485
1
#32
52465-MEN-A30
ARM SUB-ASSY., CUSHION
$338.54¢169 269
1
#33
52466-KRN-710
COLLAR D, CUSHION ARM SIDE
$4.34¢2 168
1
#34
52473-MEN-A30
COLLAR, CONNECTING ROD
$18.93¢9 465
1
#35
52475-KZ4-J20
COLLAR, LINK SIDE
$7.57¢3 783
1
#36
52476-KZ4-J20
WASHER, THRUST
$5.78¢2 892
1
#37
52479-MEN-A30
ROD SUB-ASSY., CUSHION CONNECTING
No Disponible
1
#38
87516-KZ1-600
LABEL, RR. DAMPER WARNING
$7.97¢3 985
1
#39
91351-KRN-711
DUST SEAL (17.5X26X3)
$3.36¢1 679
1
#40
90130-MEN-840
BOLT, LINK (12X82)
$12.20¢6 101
1
#41
90131-MEN-A30
BOLT, LINK (12X116)
$15.92¢7 958
1
#42
90132-MEN-A30
BOLT, LINK (12X87)
$12.56¢6 279
1
#43
90152-MEB-750
BOLT, CUSHION (UPPER) (10X53)
$3.36¢1 679
1
#44
90153-KZ4-710
BOLT, CUSHION (LOWER) (10X43.5)
$9.68¢4 842
1
#45
90305-KRN-A30
NUT, U (12MM)
$5.78¢2 892
1
#46
90306-KZ4-711
NUT, U (10MM)
$4.17¢2 087
1
#47
90501-KRN-710
WASHER, PLAIN (12MM)
$4.40¢2 202
1
#48
90501-KZ4-J40
WASHER, PLAIN (12MM)
$2.64¢1 322
1
#49
91051-KSC-003
BEARING, NEEDLE (20X26X15)
$9.45¢4 727
1
#50
91074-KRN-711
BEARING, NEEDLE (19X26X13)
$9.15¢4 577
1
#51
91074-MAC-741
BEARING, SPHERICAL (10)
$37.41¢18 705
1
#52
91262-KZ3-731
DUST SEAL (25X32X4)
$8.37¢4 186
1
#54
91351-KZ3-731
DUST SEAL, RR. CUSHION PIVOT
$5.44¢2 720
1
#55
91351-MAC-671
DUST SEAL (16X26X3)
$6.19¢3 093
1
#56
91351-MEN-A31
O-RING
$3.27¢1 633
1
#57
90305-KRN-A30
NUT, U (12MM)
$5.78¢2 892
1
