LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

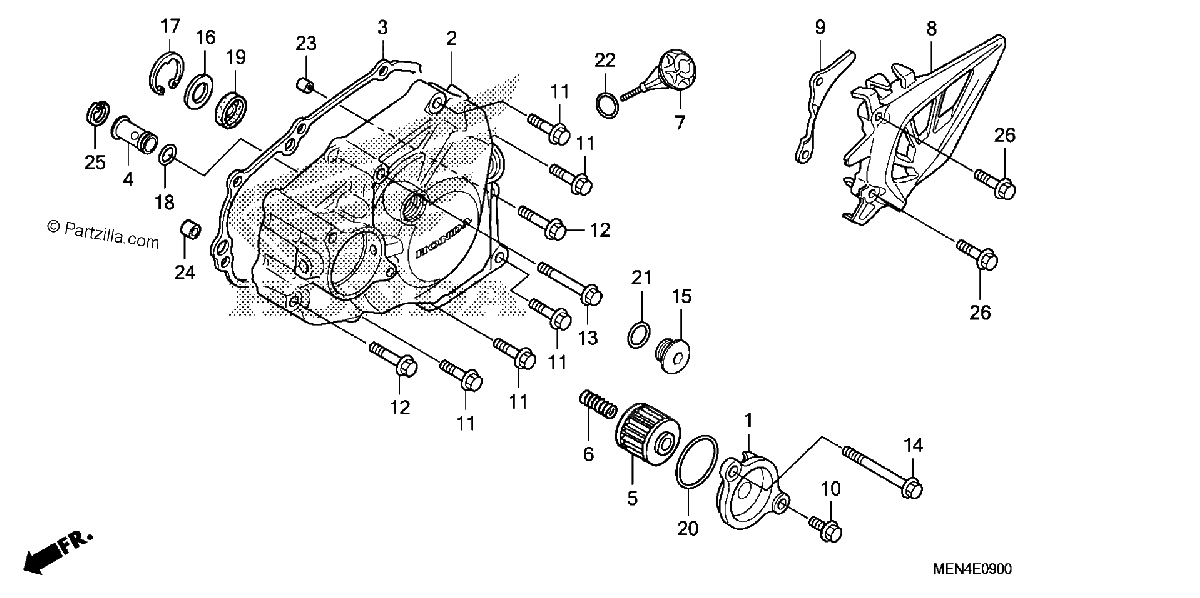

Diagrama de LEFT CRANKCASE COVER

Repuestos

#1
11333-MEN-A30
COVER, OIL FILTER
$59.51¢29 756
1
#2
11340-MEN-A40
COVER, L. CRANKCASE
No Disponible
1
#3
11395-MEN-A50
GASKET, L. COVER
$16.11¢8 056
1
#4
15220-MEN-A30
VALVE ASSY., RELIEF
$31.74¢15 869
1
#5
15412-MEN-671
FILTER, ENGINE OIL
$9.11¢4 556
1
#6
15414-MEB-670
SPRING, OIL FILTER
$3.38¢1 688
1
#7
15650-MEN-A30
DIPSTICK, OIL
$10.29¢5 144
1
#8
23810-MEN-A30
COVER, DRIVE SPROCKET
$28.96¢14 481
1
#9
23812-MEN-A30
GUIDE, DRIVE CHAIN
$15.09¢7 544
1
#10
90004-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$4.25¢2 125
1
#11
90004-GHB-690
BOLT, FLANGE (6X32) (NSHF)
$4.68¢2 338
1
#12
90004-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$4.94¢2 469
1
#13
90004-GHB-740
BOLT, FLANGE (6X55) (NSHF)
$5.86¢2 931
1
#14
90004-GHB-780
BOLT, FLANGE (6X75) (NSHF)
$3.77¢1 888
1
#15
90084-MN8-010
CAP (14MM)
$14.88¢7 438
1
#16
90401-MEY-670
WASHER (13X24X1.6)
$2.54¢1 269
1
#17
90602-MEB-670
CIRCLIP, SPECIAL INNER (24MM)
$3.71¢1 856
1
#18
90751-GK1-003
O-RING (8.5X1.7)
$3.49¢1 744
1
#19
91204-MEN-A31
OIL SEAL (10X21X5)
$4.68¢2 338
1
#20
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$6.50¢3 250
1
#21
91303-377-000
O-RING (13.8X2.5)
$4.15¢2 075
1
#22
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#23
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#24
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
#25
94520-14000
CIRCLIP, INNER (14MM)
$1.19¢594
1
#26
96001-06030-07
BOLT, FLANGE (6X30)
$2.31¢1 156
1
