WIRE HARNESS HORN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

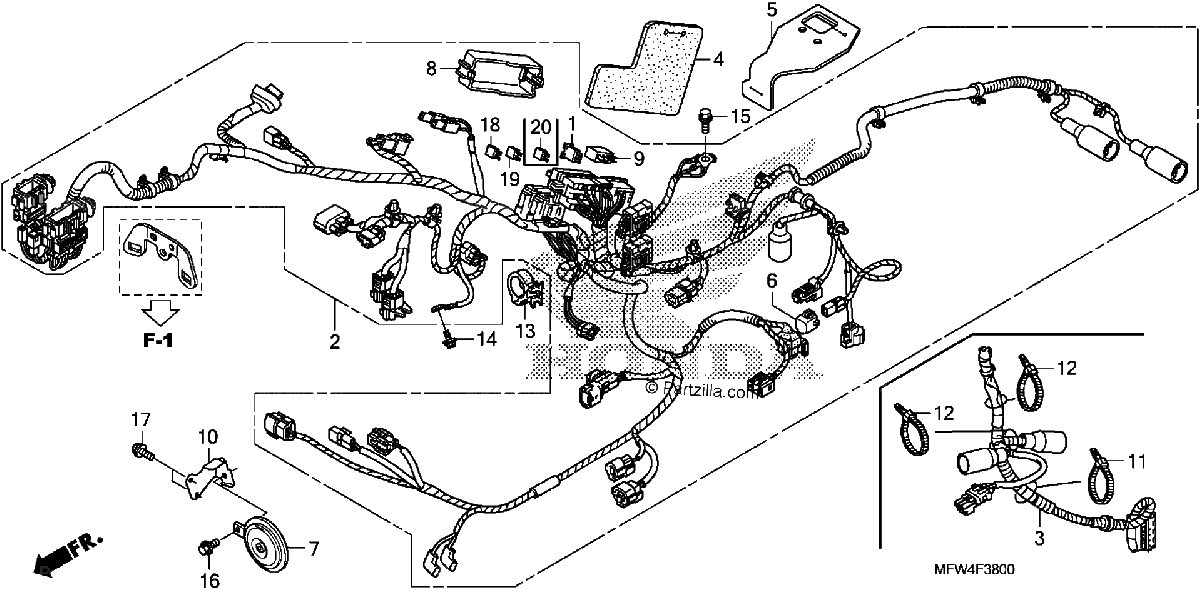

Diagrama de WIRE HARNESS HORN

Repuestos

#001
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
1
#1
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
1
#002
32100-MFW-A00
WIRE HARNESS
No Disponible
1
#2
32100-MFW-A00
WIRE HARNESS
No Disponible
1
#4
32150-MFY-A00
GUARD, HARNESS
$7.08¢3 542
1
#004
32150-MFY-A00
GUARD, HARNESS
$7.08¢3 542
1
#5
32160-MFY-000
RUBBER SHEET, HARNESS GUARD
$10.53¢5 267
1
#005
32160-MFY-000
RUBBER SHEET, HARNESS GUARD
$10.53¢5 267
1
#6
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.36¢2 680
1
#006
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.36¢2 680
1
#7
38110-MFY-003
HORN (HIGH)
$77.69¢38 847
1
#007
38110-MFY-003
HORN (HIGH)
$77.69¢38 847
1
#8
38252-MFJ-D01
COVER (UPPER)
$11.99¢5 997
1
#008
38252-MFJ-D01
COVER (UPPER)
$11.99¢5 997
1
#009
38501-MKP-DN1
RELAY, POWER (MICRO ISO 4P)
$5.19¢2 593
1
#009
38501-MEL-003
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
1
#9
38501-MEL-003
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
1
#10
50177-MFY-A00
STAY, HORN
$25.21¢12 604
1
#010
50177-MFY-A00
STAY, HORN
$25.21¢12 604
1
#013
90690-GHB-661
CLIP, CABLE (20MM)
$2.59¢1 294
1
#13
90690-GHB-661
CLIP, CABLE (20MM)
$2.59¢1 294
1
#14
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#014
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#15
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#015
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#016
95701-08014-07
BOLT, FLANGE (8X14)
$1.18¢592
1
#16
95701-08014-07
BOLT, FLANGE (8X14)
$1.18¢592
1
#017
95701-08020-08
BOLT, FLANGE (8X20)
$1.78¢891
1
#17
95701-08020-08
BOLT, FLANGE (8X20)
$1.78¢891
1
#18
98200-41000
FUSE, MINI (10A)
$1.56¢782
1
#018
98200-41000
FUSE, MINI (10A)
$1.56¢782
1
#019
98200-42000
FUSE, MINI (20A)
$1.37¢684
1
#19
98200-42000
FUSE, MINI (20A)
$1.37¢684
1
