REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

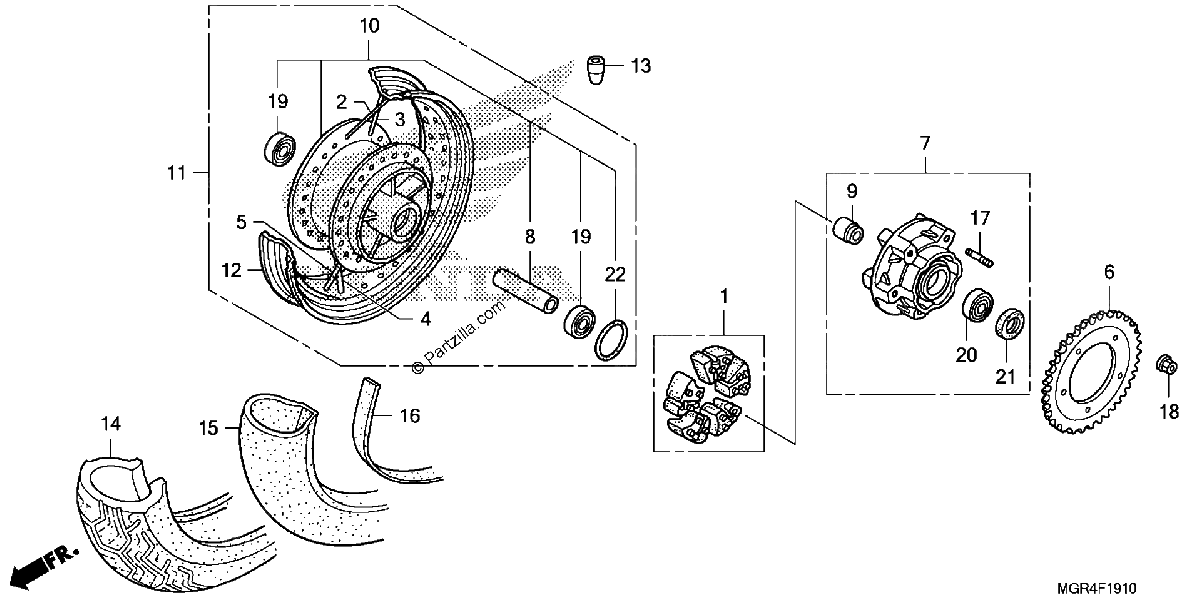

Diagrama de REAR WHEEL

Repuestos

#1
06410-MBA-000
DAMPER SET, WHEEL
$35.80¢17 900
1
#001
06410-MBA-000
DAMPER SET, WHEEL
$35.80¢17 900
1
#002
06420-MGR-670
(R. INSIDE)
$4.05¢2 025
1
#2
06420-MGR-670
(R. INSIDE)
$4.05¢2 025
1
#003
06421-MGR-670
(R. OUTSIDE)
$5.67¢2 838
1
#3
06421-MGR-670
(R. OUTSIDE)
$5.67¢2 838
1
#004
06422-MGR-670
(L. INSIDE)
$5.67¢2 838
1
#4
06422-MGR-670
(L. INSIDE)
$5.67¢2 838
1
#005
06423-MGR-670
(L. OUTSIDE)
$4.05¢2 025
1
#5
06423-MGR-670
(L. OUTSIDE)
$4.05¢2 025
1
#6
41201-MGR-670
SPROCKET, FINAL DRIVEN (38T)
No Disponible
1
#006
41201-MGR-670
SPROCKET, FINAL DRIVEN (38T)
No Disponible
1
#7
42615-MBA-000
FLANGE SUB-ASSY., RR. DRIVEN
$318.34¢159 169
1
#007
42615-MBA-000
FLANGE SUB-ASSY., RR. DRIVEN
$318.34¢159 169
1
#8
42620-MW0-010
COLLAR, RR. AXLE DISTANCE
$43.79¢21 894
1
#008
42620-MW0-010
COLLAR, RR. AXLE DISTANCE
$43.79¢21 894
1
#009
42625-MV4-000
COLLAR B, RR. WHEEL DISTANCE
$34.35¢17 175
1
#9
42625-MV4-000
COLLAR B, RR. WHEEL DISTANCE
$34.35¢17 175
1
#10
42635-MBA-000
HUB SUB-ASSY., RR.
$607.46¢303 731
1
#010
42635-MBA-000
HUB SUB-ASSY., RR.
$607.46¢303 731
1
#011
42650-MGR-670
WHEEL SUB-ASSY., RR.
$1042.25¢521 125
1
#11
42650-MGR-670
WHEEL SUB-ASSY., RR.
$1042.25¢521 125
1
#012
42701-MGR-671
RIM, RR. WHEEL
$278.84¢139 419
1
#12
42701-MGR-671
RIM, RR. WHEEL
$278.84¢139 419
1
#13
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.80¢4 900
1
#013
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.80¢4 900
1
#13
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.80¢4 900
1
#013
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.80¢4 900
1
#14
42711-MGR-673
TIRE, RR. (150/80 B 16 M/C 71H) (DUNLOP)
$272.59¢136 294
1
#014
42711-MGR-675
TIRE, Rear.
$272.59¢136 294
1
#014
42711-MGR-673
TIRE, RR. (150/80 B 16 M/C 71H) (DUNLOP)
$272.59¢136 294
1
#14
42711-MGR-671
TIRE, RR. (150/80 B 16 M/C 71H) (DUNLOP)
$272.59¢136 294
1
#14
42711-MGR-672
TIRE, RR. (METZELER) (150/80 B 16 M/C 71H) (NA USE ALT:42711-MGR-671)
No Disponible
1
#014
42711-MGR-672
TIRE, RR. (METZELER) (150/80 B 16 M/C 71H) (NA USE ALT:42711-MGR-671)
No Disponible
1
#014
42711-MGR-671
TIRE, RR. (150/80 B 16 M/C 71H) (DUNLOP)
$272.59¢136 294
1
#015
42712-MGR-671
TUBE, TIRE (DUNLOP)
$51.31¢25 656
1
#15
42712-MGR-671
TUBE, TIRE (DUNLOP)
$51.31¢25 656
1
#15
42712-MGR-672
TUBE, TIRE (METZELER) (NA USE ALT:42712-MGR-671)
No Disponible
1
#015
42712-MGR-672
TUBE, TIRE (METZELER) (NA USE ALT:42712-MGR-671)
No Disponible
1
#016
42713-MGR-671
FLAP, TIRE (DUNLOP)
$8.49¢4 244
1
#16
42713-MGR-671
FLAP, TIRE (DUNLOP)
$8.49¢4 244
1
#016
42713-MGR-672
BAND, RIM (METZELER)
$16.99¢8 494
1
#16
42713-MGR-672
BAND, RIM (METZELER)
$16.99¢8 494
1
#017
90102-MAS-000
BOLT, STUD (12X25)
$4.86¢2 431
1
#17
90102-MAS-000
BOLT, STUD (12X25)
$4.86¢2 431
1
#018
90306-KTZ-D01
NUT, U FLANGE (12MM)
$4.26¢2 131
1
#18
90306-KTZ-D01
NUT, U FLANGE (12MM)
$4.26¢2 131
1
#019
91052-MAE-004
BEARING, RADIAL BALL (6204UU)
$32.17¢16 087
1
#19
91052-MZ2-A21
BEARING, RADIAL BALL (6204UU) (NSK)
$32.17¢16 087
1
#019
91052-MZ2-A21
BEARING, RADIAL BALL (6204UU) (NSK)
$32.17¢16 087
1
#020
91073-MV4-782
BEARING, RADIAL BALL (62/22)
$15.48¢7 738
1
#20
91073-MV4-782
BEARING, RADIAL BALL (62/22)
$15.48¢7 738
1
#21
91252-MAE-003
DUST SEAL (30X50X7.5)
$19.70¢9 850
1
#021
91252-MAE-003
DUST SEAL (30X50X7.5)
$19.70¢9 850
1
#22
91302-MA6-003
O-RING (61X2)
$6.26¢3 131
1
#022
91302-MA6-003
O-RING (61X2)
$6.26¢3 131
1
