FRONT BRAKE MASTERCYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

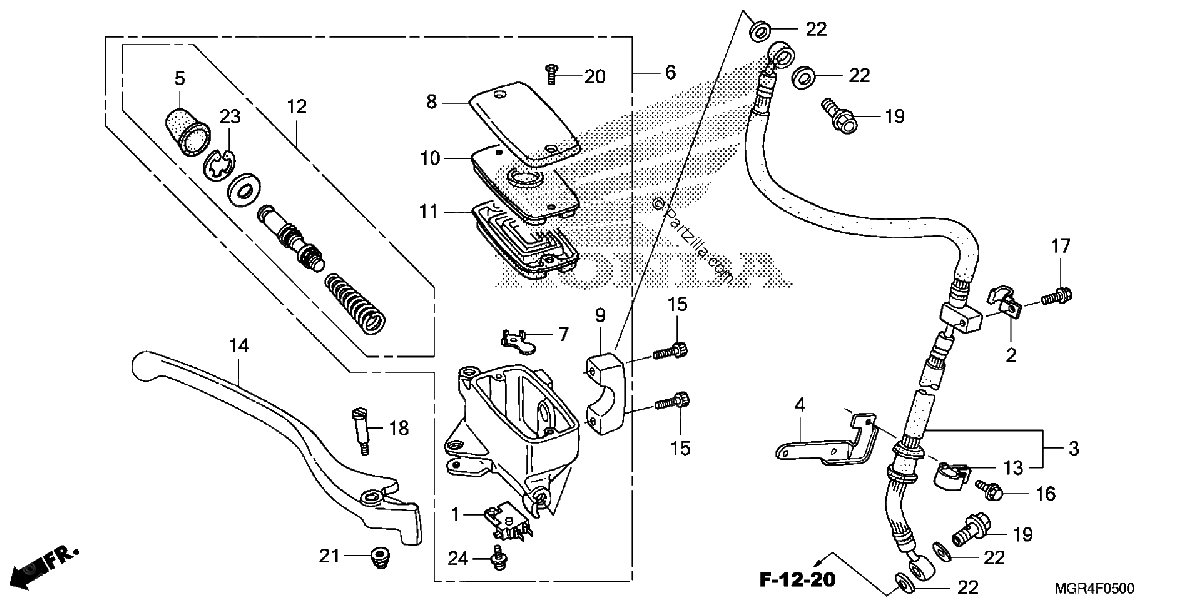

Diagrama de FRONT BRAKE MASTERCYLINDER

Repuestos

#001
35340-MM5-600
SWITCH Assembly., Front STOP
$23.13¢11 563
1
#1
35340-MM5-600
SWITCH Assembly., Front STOP
$23.13¢11 563
1
#002
38514-MEJ-J00
CLAMP B, SENSOR WIRE
$2.68¢1 340
1
#2
38514-MEJ-J00
CLAMP B, SENSOR WIRE
$2.68¢1 340
1
#3
45124-MGR-671
HOSE, FR. BRAKE
$116.85¢58 426
1
#003
45124-MGR-671
HOSE, FR. BRAKE
$116.85¢58 426
1
#004
45138-MCL-J00
BRACKET, L. FR. HOSE CLIP
$6.20¢3 099
1
#4
45138-MCL-J00
BRACKET, L. FR. HOSE CLIP
$6.20¢3 099
1
#5
45504-410-003
BOOT
$13.10¢6 549
1
#005
45504-410-003
BOOT
$13.10¢6 549
1
#6
45510-MEG-305
MASTER CYLINDER SET, FR. BRAKE (COO) (NISSIN)
$241.41¢120 704
1
#006
45510-MEG-305
MASTER CYLINDER SET, FR. BRAKE (COO) (NISSIN)
$241.41¢120 704
1
#006
45510-MEG-006
MASTER CYLINDER SUB-Assembly., Front BRAKE (NISSIN)
$241.41¢120 704
1
#6
45510-MEG-006
MASTER CYLINDER SUB-Assembly., Front BRAKE (NISSIN)
$241.41¢120 704
1
#007
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#7
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#8
45513-MM4-016
CAP, MASTER CYLINDER (NISSIN)
$21.88¢10 942
1
#008
45513-MM4-016
CAP, MASTER CYLINDER (NISSIN)
$21.88¢10 942
1
#9
45517-MEG-006
HOLDER, MASTER CYLINDER (NISSIN)
$12.30¢6 152
1
#009
45517-MEG-006
HOLDER, MASTER CYLINDER (NISSIN)
$12.30¢6 152
1
#010
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#10
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#011
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#11
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#012
45530-MN9-305
MASTER CYLINDER SET
$54.21¢27 106
1
#12
45530-MN9-305
MASTER CYLINDER SET
$54.21¢27 106
1
#013
52115-MCA-A20
CLAMP A, BRAKE HOSE
$4.77¢2 386
1
#13
52115-MCA-A20
CLAMP A, BRAKE HOSE
$4.77¢2 386
1
#14
53175-MR1-305
LEVER, R. HANDLE (COO)
$17.54¢8 769
1
#014
53175-MR1-305
LEVER, R. HANDLE (COO)
$17.54¢8 769
1
#014
53175-MR1-671
LEVER, Right HANDLE
$17.54¢8 769
1
#14
53175-MR1-671
LEVER, Right HANDLE
$17.54¢8 769
1
#15
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#015
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#16
90103-MCS-G00
BOLT, FLANGE (6X12)
$1.53¢765
1
#016
90103-MCS-G00
BOLT, FLANGE (6X12)
$1.53¢765
1
#017
90106-MEJ-D00
BOLT, FLANGE (6X25)
$2.43¢1 213
1
#17
90106-MEJ-D00
BOLT, FLANGE (6X25)
$2.43¢1 213
1
#018
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#18
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#19
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#019
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#020
90158-MT7-000
SCREW, FLAT
$2.54¢1 271
1
#20
90158-MT7-000
SCREW, FLAT
$2.54¢1 271
1
#021
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#21
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#022
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#22
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#23
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#023
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#24
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#024
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#24
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#024
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
