FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

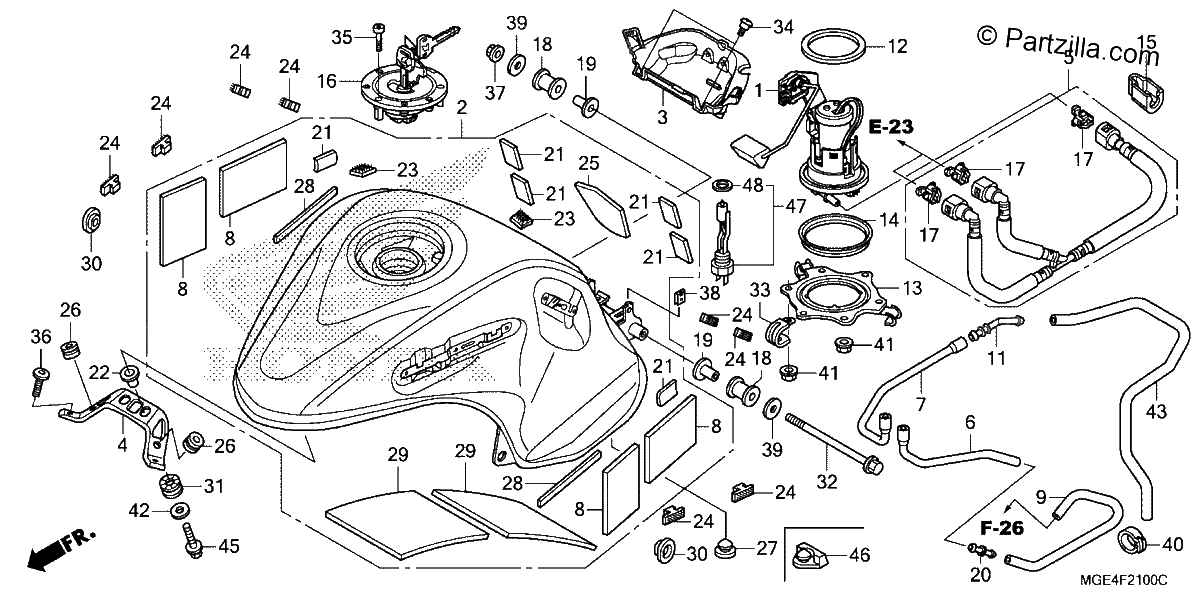

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#001
16700-MGE-003
PUMP Assembly., FUEL (MSDS)
$832.11¢416 053
1
#001
16700-MGE-013
PUMP Assembly., FUEL (MSDS)
$832.11¢416 053
1
#001
16700-MGE-023
PUMP Assembly., FUEL (MSDS)
$832.11¢416 053
1
#002
17500-MGE-000ZA
TANK SET, FUEL NHB01 NHRAPHITE BLACK)
$1474.41¢737 207
1
#002
17500-MGE-010ZA
TANK SET, FUEL NHB01 NHRAPHITE BLACK)
$1474.41¢737 207
1
#002
17500-MGE-020ZA
TANK SET, FUEL NHB01 NHRAPHITE BLACK)
$1474.41¢737 207
1
#003
17515-MGE-000
PROTECTOR, TANK HEAT
$33.97¢16 986
1
#004
17523-MGE-000
STAY, Front FUEL TANK
$17.12¢8 562
1
#005
17526-MGE-003
HOSE, FUEL FEED
$209.07¢104 535
1
#006
17544-MGE-770
TUBE, TANK BREATHER
$23.94¢11 971
1
#007
17545-MGE-000
TUBE, TANK DRAIN
$10.44¢5 221
1
#008
17554-MEL-300
CUSHION, FUEL TANK
$9.96¢4 980
1
#009
17556-MGE-770
TUBE, TANK-CANISTER
$15.48¢7 740
1
#011
17561-MFL-000
JOINT (TWO-WAY)
$4.00¢2 001
1
#012
17574-MFJ-D00
GASKET, FUEL PUMP
$27.32¢13 662
1
#013
17575-MGE-000
PLATE, FUEL PUMP SETTING
$16.74¢8 372
1
#014
17576-MFJ-D00
SEAL (OUTER)
$6.57¢3 283
1
#015
17580-MFJ-D00
COVER, FUEL CONNECTOR
$6.11¢3 053
1
#016
17620-MGE-003
CAP, FUEL FILLER
$418.92¢209 461
1
#016
17620-MGE-013
CAP, FUEL FILLER
$418.92¢209 461
1
#016
17620-MGE-023
CAP, FUEL FILLER
$418.92¢209 461
1
#017
17711-MGE-003
RETAINER
$7.07¢3 536
1
#018
18421-MB0-000
RUBBER, MUFFLER MOUNTING
$7.07¢3 536
1
#019
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#020
38562-663-920
JOINT B, WASHER TUBE (MITSUBA)
$10.64¢5 319
1
#021
50383-GB6-300
RUBBER, BATTERY
$3.46¢1 731
1
#022
61104-422-000
COLLAR, SETTING
$7.72¢3 858
1
#023
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.36¢1 679
1
#024
64472-MGE-000
FASTENER A, DUAL LOCK (9X24)
$4.31¢2 156
1
#025
64490-MGE-000
COVER, FUEL TANK CENTER
$37.06¢18 532
1
#026
53133-KR1-760
GROMMET, IGNITION COVER
$4.98¢2 490
1
#027
77212-965-000
RUBBER, SEAT SIDE
$5.51¢2 754
1
#028
81354-MAT-300
SEAL, FUEL TANK
$2.48¢1 242
1
#029
83430-MGE-000
URETHANE, FUEL TANK (LOWER)
$11.95¢5 974
1
#030
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.09¢2 047
1
#031
84703-425-000
RUBBER, TAILLIGHT MOUNTING
$5.27¢2 633
1
#032
90102-ZB5-000
BOLT, FLANGE (8X190)
$14.85¢7 423
1
#033
90105-727-000
CLIP (2X50)
$3.58¢1 788
1
#034
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.07¢1 535
1
#035
90120-MGE-000
BOLT, SOCKET (4X21)
$2.90¢1 449
1
#036
90155-MGE-000
BOLT, SPECIAL (6X18)
$3.89¢1 943
1
#037
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.74¢1 869
1
#038
90320-GE2-760
NUT, SPRING (5MM)
$2.33¢1 167
1
#039
90524-030-000
WASHER A, HANDLE HOLDER SETTING
$1.64¢822
1
#040
90683-KJ2-003
CLIP, WIRE HARNESS
$3.98¢1 989
1
#041
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#042
94103-06000
WASHER, PLAIN (6MM)
$1.17¢586
1
#043
95005-75003-10M
BULK HOSE, VACUUM (7.3X3000) (7.3X950)
$105.67¢52 837
1
#045
96001-06025-00
BOLT, FLANGE (6X25)
$2.48¢1 242
1
