FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

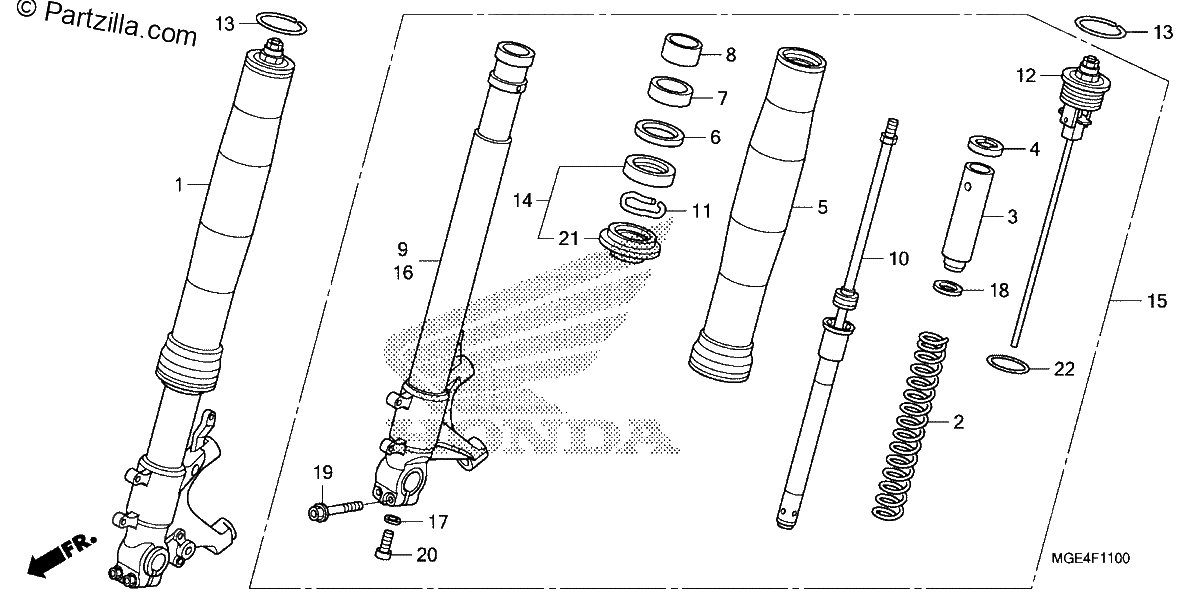

Diagrama de FRONT FORK

Repuestos

#001
51400-MGE-306
FORK Assembly., Right Front. (KYB)(COO)
$1708.42¢854 213
1
#002
51401-MGE-D01
SPRING, Front FORK
$89.59¢44 794
1
#003
51403-MGE-003
COLLAR, SPRING
$21.95¢10 975
1
#004
51406-MGE-003
SEAT, SPRING COLLAR
$5.71¢2 856
1
#005
51410-MGE-003
TUBE (OUTER)
$759.67¢379 838
1
#006
51412-MGE-003
RING, BACK-UP
$10.58¢5 288
1
#007
51414-MGE-003
BUSH, GUIDE
$9.06¢4 531
1
#008
51415-MGE-003
BUSH, SLIDER
$10.34¢5 169
1
#009
51425-MGE-003
PIPE, Right SLIDE
$601.66¢300 831
1
#010
51430-MGE-003
DAMPER, Front.
$694.10¢347 050
1
#011
51447-KZ4-711
RING, OIL SEAL STOP
$6.11¢3 056
1
#012
51450-MGE-003
BOLT, FR. FORK
$218.10¢109 050
1
#013
51455-MW4-003
RING, STOPPER
$14.26¢7 131
1
#014
51490-MGE-003
SEAL SET, FR. FORK
$26.56¢13 281
1
#015
51500-MGE-306
FORK Assembly., L Front. (KYB)(COO)
$1708.42¢854 213
1
#016
51525-MGE-003
PIPE, L SLIDE
$525.74¢262 869
1
#017
52442-KA3-731
WASHER, OIL BOLT
$3.01¢1 506
1
#018
52442-MGE-003
WASHER
$2.54¢1 269
1
#019
90107-MGE-000
BOLT, FLANGE (8X40)
$3.43¢1 713
1
#020
90116-KK0-004
BOLT, SOCKET (10X25)
$7.21¢3 606
1
#021
91254-MGE-003
DUST SEAL
$17.48¢8 738
1
#022
91258-KZ4-711
O-RING (39.7X3.5)
$11.66¢5 831
1
