RIGHT CRANKCASE COVER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

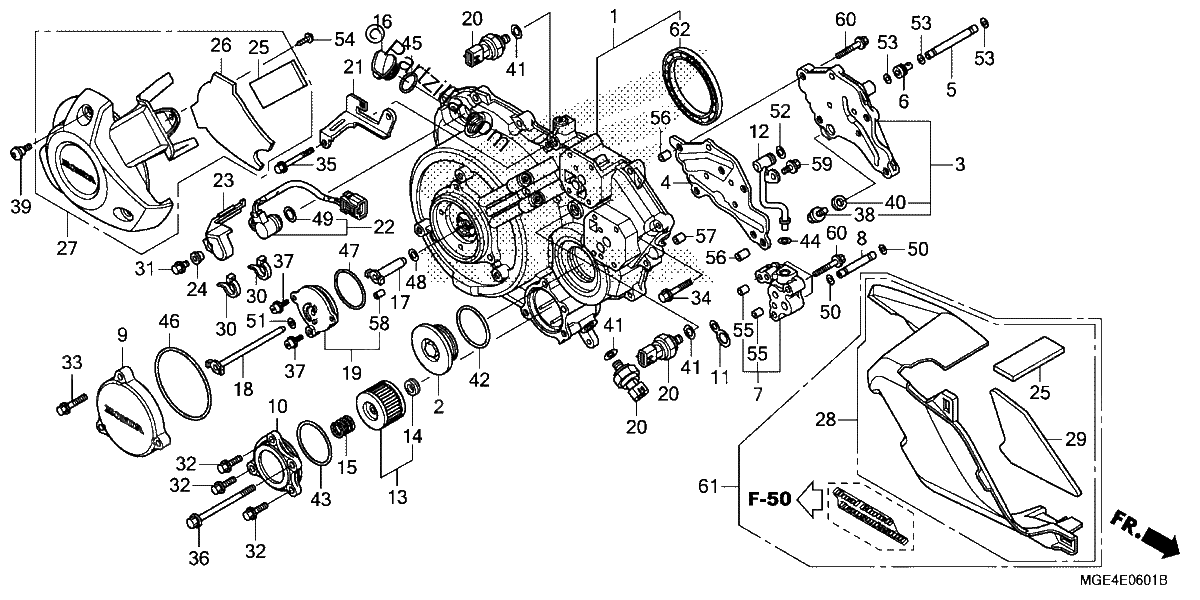

Diagrama de RIGHT CRANKCASE COVER 2

Repuestos

#001
11300-MGE-D00
COVER ASSY., R.
$495.73¢247 865
1
#002
11332-MBZ-D00
CAP (45MM)
$20.39¢10 195
1
#003
11360-MGE-D00
COVER, R. (INNER)
$61.93¢30 964
1
#004
11362-MGE-D01
PLATE, COVER (INNER)
$22.40¢11 201
1
#005
11366-MGE-D00
PIPE, COVER (INNER)
$19.99¢9 994
1
#006
11367-MGE-D00
ORIFICE (1.1MM)
$10.18¢5 089
1
#007
11370-MGE-D00
BASE, OIL PASSAGE PIPE
$61.10¢30 550
1
#008
11373-MGE-D00
PIPE, OIL FILTER
$30.92¢15 462
1
#009
11375-MGE-D00
CAP, R. COVER
$76.84¢38 421
1
#010
11376-MGE-D00
COVER, OIL FILTER
$101.26¢50 629
1
#011
11379-MGE-D01
SEAL, RUBBER
$7.24¢3 622
1
#012
11390-MGE-D00
PIPE, OIL PASSAGE
$112.67¢56 333
1
#013
15412-MGE-D01
ELEMENT, OIL FILTER
$10.83¢5 416
1
#014
15413-MC8-000
RUBBER, FILTER
$3.74¢1 869
1
#015
15414-KF0-000
SPRING, OIL FILTER ELEMENT SETTING
$4.74¢2 369
1
#016
15611-KA4-710
CAP, OIL FILLER
$15.38¢7 688
1
#017
22711-MGE-D00
PIPE A, FEED
$22.82¢11 408
1
#018
22712-MGE-D00
PIPE B, FEED
$27.77¢13 886
1
#019
22720-MGE-D00
GUIDE, FEED PIPE
$103.89¢51 945
1
#020
28660-RFH-013
SENSOR ASSY., OIL PRESSURE
$110.58¢55 292
1
#021
32158-MGE-D00
STAY, CONNECTOR
$6.52¢3 260
1
#022
38810-MGE-D01
SENSOR ASSY., ANGLE (40DEGREE)
$244.60¢122 302
1
#023
38815-MGE-D00
COVER, ANGLE SENSOR
$10.71¢5 353
1
#024
38816-MGE-D00
COLLAR, SENSOR COVER
$6.43¢3 214
1
#025
64951-MGE-D00
MAT A, ENGINE GUARD
$2.06¢1 029
1
#026
64952-MGE-D00
MAT B, ENGINE GUARD
$6.24¢3 122
1
#027
64960-MGE-D00ZA
GUARD SET, R. ENGINE COVER *NH437M* (MAT RAY SILVER)
$79.65¢39 825
1
#028
83500-MGE-D00ZA
COVER SET, Right ENGINE (UPPER) TBLACK (BLACK)
$31.52¢15 761
1
#029
83551-MGE-D00
MAT A, Right ENGINE COVER (UPPER)
$5.66¢2 829
1
#030
83645-GG0-000
BAND, NYLON
$2.30¢1 150
1
#031
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.42¢1 708
1
#032
90016-GHB-640
BOLT, FLANGE (6X18)
$2.36¢1 179
1
#033
90016-GHB-660
BOLT, FLANGE (6X22)
$2.59¢1 294
1
#034
90016-GHB-680
BOLT, FLANGE (6X28)
$2.69¢1 346
1
#035
90016-GHB-710
BOLT, FLANGE (6X40)
$2.54¢1 271
1
#036
90016-GHB-780
BOLT, FLANGE (6X75)
$2.96¢1 478
1
#037
90089-KAS-900
BOLT, FLANGE SOCKET (5X14)
$1.64¢822
1
#038
90109-371-000
BOLT, SEALING (8MM)
$3.15¢1 576
1
#039
90114-MGE-D00
BOLT, SPECIAL (6X15)
$2.43¢1 213
1
#040
90421-KM1-003
WASHER, SEALING
$2.48¢1 242
1
#041
91301-MEH-003
O-RING (13X1.5)
$1.92¢960
1
#042
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.38¢2 191
1
#043
91302-KF0-003
O-RING (54X2.4) (ARAI)
$3.86¢1 932
1
#044
91303-428-003
O-RING (7.7X2.5)
$2.24¢1 121
1
#045
91307-KF0-003
O-RING (18X3) (ARAI)
$3.36¢1 679
1
#046
91307-MGE-D01
O-RING (81X2.2)
$4.63¢2 317
1
#047
91308-MGE-D01
O-RING (46X1.9)
$3.09¢1 547
1
#048
91308-PY4-003
O-RING (10.7X1.9)
$1.44¢719
1
#049
91310-MGE-D01
O-RING (16.5X2.5)
$5.69¢2 846
1
#050
91311-MGE-D01
O-RING (9.8X2.4)
$2.09¢1 047
1
#051
91315-PC9-004
O-RING (6X1.5) (N0K)
$2.09¢1 047
1
#052
91317-P4V-004
O-RING (9.8X1.9) (ARAI)
$3.30¢1 650
1
#053
91319-ME5-003
O-RING (5.5X1.4)
$2.18¢1 092
1
#054
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#055
94301-06100
PIN, DOWEL (6X10)
$2.66¢1 328
1
#056
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#057
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#058
94302-05080
PIN B, DOWEL (5X8)
$2.66¢1 328
1
#058
94303-05080
PIN, DOWEL (5X8)
$2.66¢1 328
1
#059
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#060
95701-06030-00
BOLT, FLANGE (6X30)
$2.22¢1 110
1
#062
91011-MGE-D01
BEARING, RADIAL BALL LLU (6810)
$64.74¢32 372
1
