MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

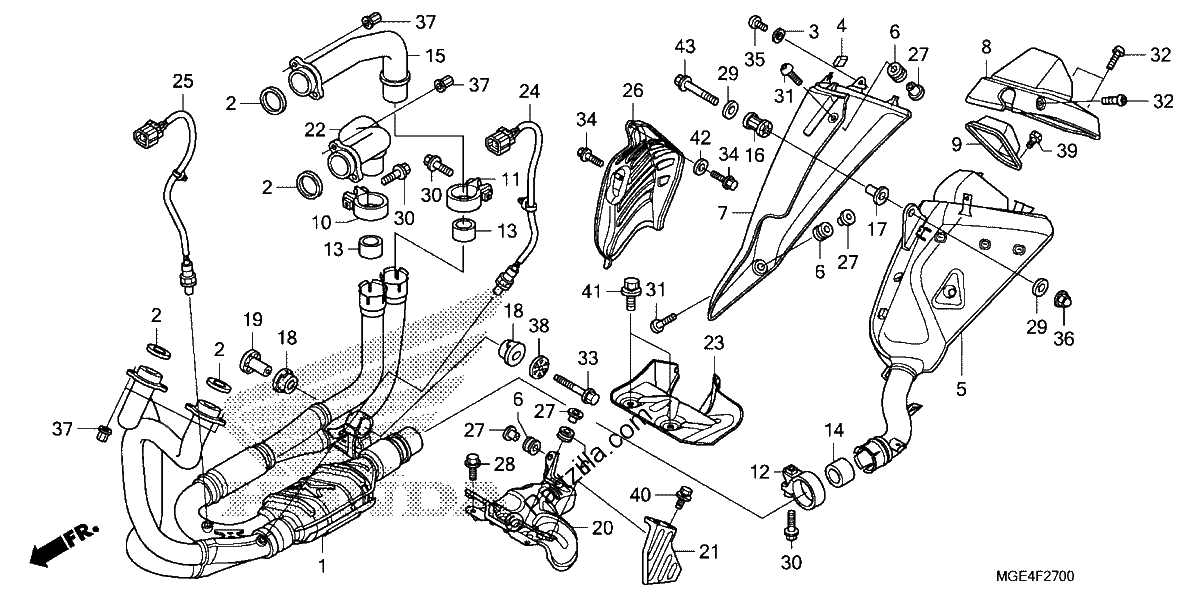

Diagrama de MUFFLER

Repuestos

#001
18150-MGE-013
PIPE, EX.
$2964.18¢1 482 088
1
#002
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#003
18292-KBR-000
GASKET, PROTECTOR
$4.19¢2 094
1
#004
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#005
18310-MGE-305
MUFFLER (COO)
$1898.71¢949 356
1
#006
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#007
18350-MGE-003
GUARD, MUFFLER (UPPER)
$465.26¢232 631
1
#008
18360-MGE-003
GUARD, Rear MUFFLER
$356.02¢178 013
1
#009
18370-MGE-003
COVER, VALVE
$46.64¢23 319
1
#010
18373-413-000
BAND, R. FR. MUFFLER
$50.13¢25 063
1
#011
18374-413-000
BAND, L. FR. MUFFLER
$50.13¢25 063
1
#012
18375-MCF-003
BAND, R. RR. MUFFLER
$38.08¢19 038
1
#012
18375-MCF-D30
BAND, R. RR. MUFFLER
$38.08¢19 038
1
#013
18392-MK4-000
GASKET, MUFFLER
$15.97¢7 988
1
#014
18393-MCF-003
GASKET, Rear EX.
$19.69¢9 844
1
#015
18420-MGE-003
PIPE, Right Rear EX.
$241.86¢120 931
1
#016
18421-KV3-950
RUBBER, MUFFLER MOUNTING
$4.24¢2 119
1
#017
18422-MA6-000
COLLAR, MUFFLER MOUNTING
$9.60¢4 800
1
#018
18422-MGE-000
RUBBER, EX. PIPE MOUNTING
$24.40¢12 200
1
#019
18423-MGE-000
COLLAR, EX. PIPE MOUNTING
$12.24¢6 119
1
#020
18425-MGE-000
PROTECTOR, EX PIPE (UPPER)
No Disponible
1
#021
18426-MGE-000
SUB-PROTECTOR, EX. PIPE (UPPER)
$14.06¢7 031
1
#022
18470-MGE-003
PIPE, L Rear EX.
$241.86¢120 931
1
#023
18475-MGE-000
PROTECTOR, EX. PIPE (LOWER)
$86.13¢43 063
1
#024
36531-MGE-641
SENSOR, OXYGEN (#1-4)
$321.13¢160 563
1
#025
36532-MGE-641
SENSOR, OXYGEN (#2-3)
$321.05¢160 525
1
#026
50606-MGE-000
PROTECTOR, HEAT
$136.45¢68 225
1
#027
50609-MCW-D00
COLLAR, HEAT GUARD SETTING
$3.20¢1 600
1
#028
90004-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$4.25¢2 125
1
#029
90509-642-000
WASHER, PLAIN (8.5X22X2.3)
$8.28¢4 138
1
#030
90103-KCM-620
BOLT, FLANGE (8X35)
$2.03¢1 013
1
#031
90106-KRG-000
SCREW, PAN (6X12)
$2.81¢1 406
1
#032
90119-MGE-000
BOLT, SPECIAL (5X10) (SUS)
$4.89¢2 444
1
#033
90127-MGE-000
BOLT, FLANGE (8X65)
$4.84¢2 419
1
#034
90101-MJN-A00
BOLT,FLANGE SH 6X
$2.44¢1 219
1
#034
90128-MGE-000
BOLT, FLANGE (6X16) (BLACK)
$2.44¢1 219
1
#035
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.31¢1 156
1
#036
90443-KF9-900
NUT, CAP (8MM)
$5.19¢2 594
1
#036
90301-SA0-000
NUT, FLANGE CAP (8MM)
$5.19¢2 594
1
#037
90304-HB3-771
NUT, SPECIAL (6MM)
$7.35¢3 675
1
#038
90505-MGE-000
WASHER (8.5X38)
$2.88¢1 438
1
#039
92101-05008-4J
BOLT, HEX. (5X8)
$2.91¢1 456
1
#040
93401-05010-00
BOLT-WASHER (5X10)
$1.31¢656
1
#041
93404-06012-07
BOLT-WASHER (6X12)
$1.99¢994
1
#041
93404-06012-08
BOLT-WASHER (6X12)
$1.99¢994
1
#042
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#043
96300-08045-04
BOLT, FLANGE (8X45)
$1.95¢975
1
